Запчасти Bobcat 5600 ENGINE & ATTACHING PARTS (Intake & Exhaust) (424811001 & Above) POWER UNIT

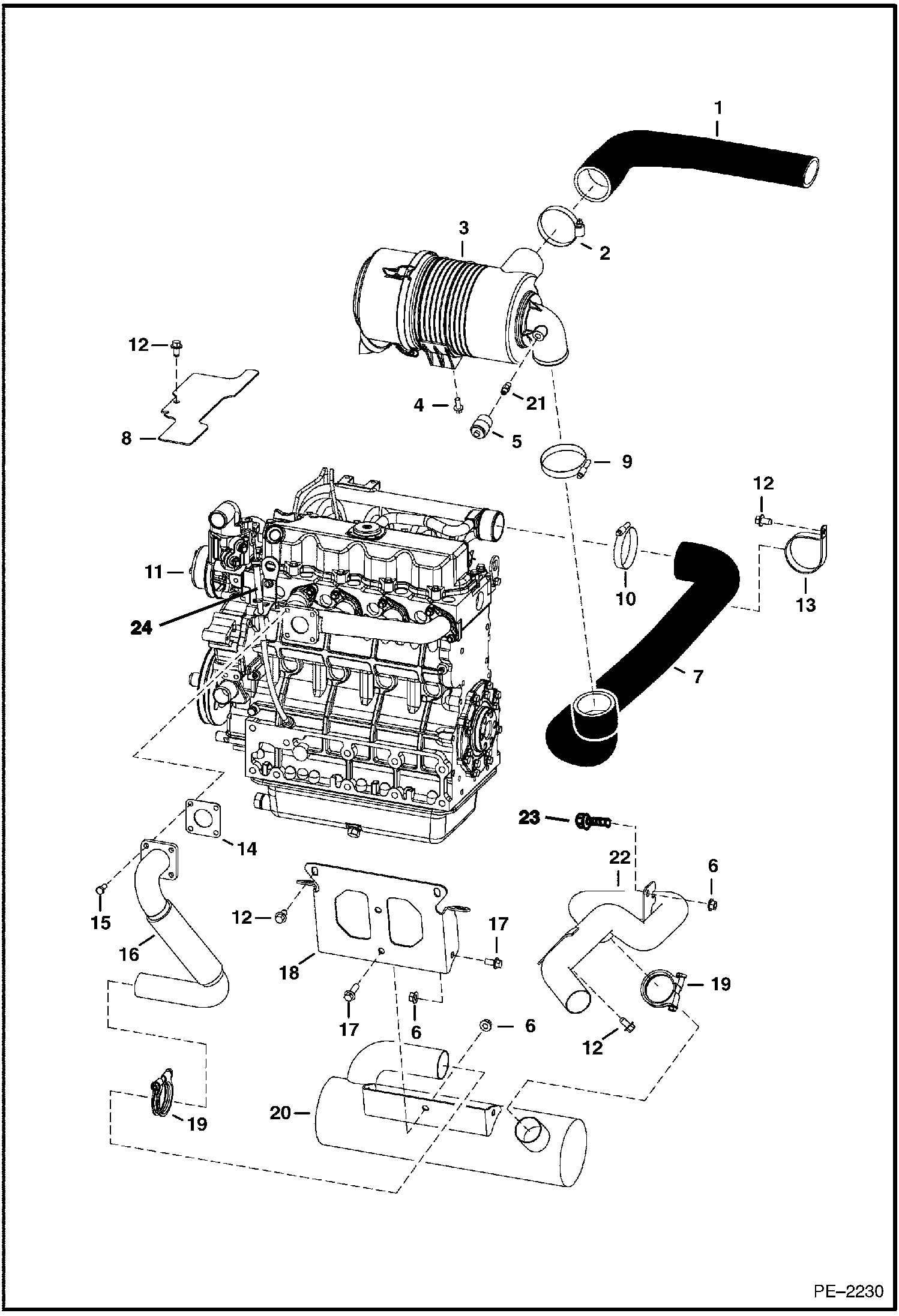

Схема запчастей Bobcat 5600 - ENGINE & ATTACHING PARTS (Intake & Exhaust) (424811001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6813969

HOSE

2

42H40

HOSECLAM5

3

6680760

AIR CLEANER See Illustration AIR CLEANER/ C3490

4

29CM820

SCREW

5

6515007

GAUGE

6

51DM10

NUT

7

6811980

HOSE

8

6816792

GUARD

9

42HC325

CLAMP

10

42HC300

CLAMP

11

ENGINE See Illustration ENGINE & GASKET KITS/ NA1522

12

26GM10020

BOLT

13

30H100

CLAMP INSULATED

14

6727752

GASKET exhaust

15

6701123

SCREW

16

6684573

TUBE exhaust

17

29CM1020

BOLT

18

6817328

MOUNT

19

6685133

CLAMP,MUFFLER exhaust

20

6684571

COVER spark arrestor

21

6816681

FITTING

22

6684572

TUBE ASSY EXHAUST exhaust

23

28CM1020

BOLT

24

51DM8

NUT

Выбрано товаров: 24
