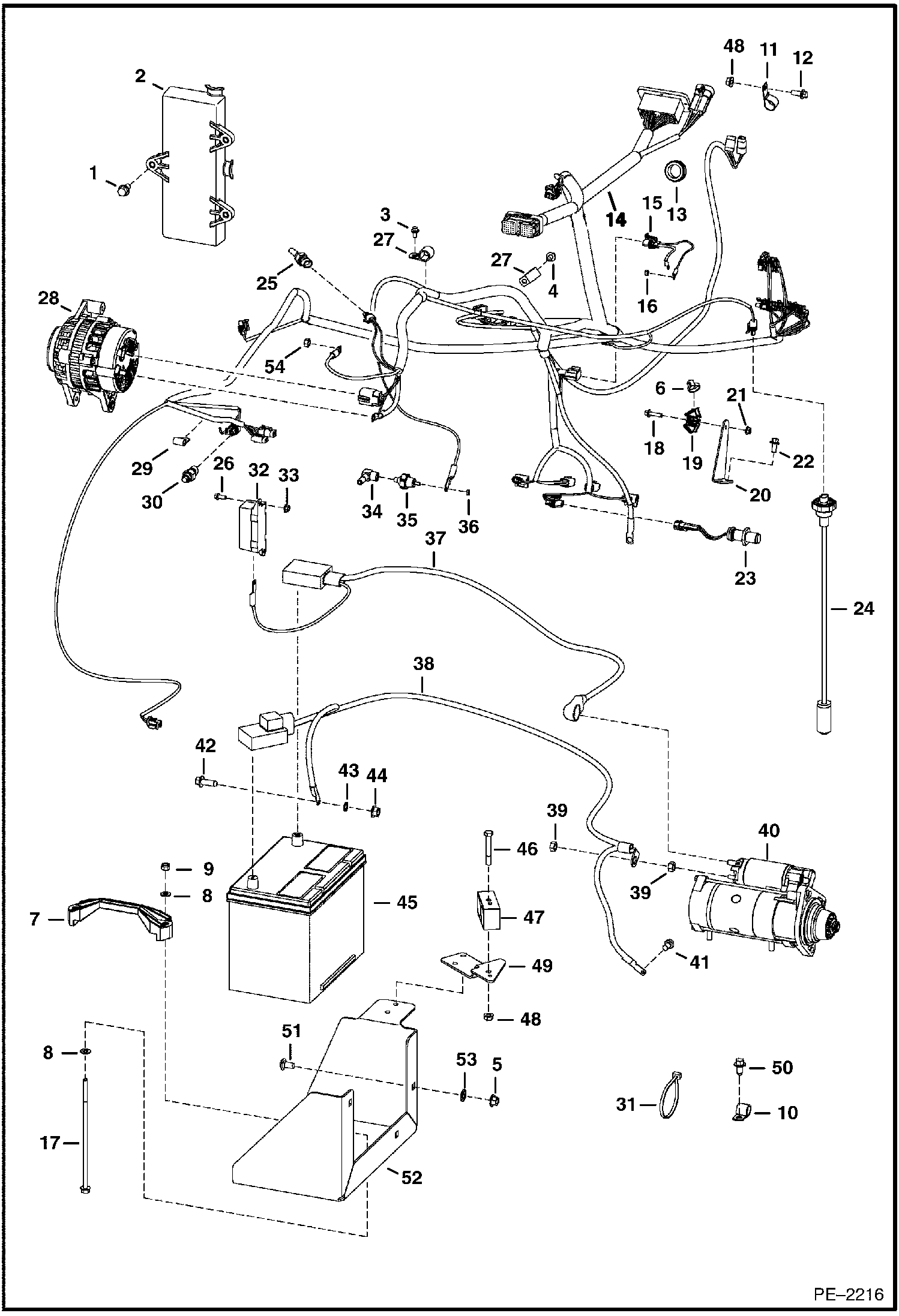

Запчасти Bobcat 5600 ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

35C612

BOLT

2

6678688

CONTROLLER

3

29CM612

BOLT, FLANGED

4

26GM8013

BOLT

5

43DM10

NUT

6

6678669

STRAP

7

6569203

CLAMP battery

8

25E15

WASHER

9

59D5

NUT 5

10

30H38

CLIP

11

30HJ512

CLAMP insulated

12

29CM820

SCREW

13

6515603

GROMMET

14

7100820

HARNESS engine

15

6733370

HARNESS adapter

16

NUT

17

7197731

BOLT Was 17C5152 - B

18

29CM625

BOLT

19

6678974

MOUNT

20

6815194

BRACKET

21

43DM6

NUT

22

29CM812

BOLT Was 29CM00816B - B

23

6684037

SENSOR engine rpm

24

7216517

SENSOR, FUEL fuel - Was 6680450 - A

25

6718414

SENDER, TEMP ENG Was 6718415 - B

26

29CM616

BOLT

27

30H37

CLAMP

28

ALTERNATOR, 90 AMP See Illustration ALTERNATOR/ C3529 - Was 6678205 - B

29

30H23

CLAMP

30

6727869

SENDER,HYD TEMP

31

6624289

STRAP, TIE

32

6675154

HOLDER

33

51DM6

NUT

34

6707040

ELBOW

35

6631010

SWITCH, PRESS OIL ENG engine oil

36

12D8

NUT

37

6812900

CABLE positive

38

6812901

CABLE negative

39

NUT

40

STARTER See Illustration STARTER/ B16488R - Was 6685190 - B

41

BOLT

42

26GM10030

BOLT

43

6E6

WASHER

44

51DM10

NUT

45

6674687

BATTERY, DRY 600 AMP

45

6665427

BATTERY, DRY 950 AMP

45

6630154

CAP gang - Danger

45

6630155

CAP gang - Poison

45

6514898

CAP tilt-tite

46

1CM860

BOLT

47

6715197

CLAMP

48

43DM8

NUT

49

6815731

BRACKET battery

50

26GM10020

BOLT

51

28CM1020

BOLT

52

6815313

MOUNT battery

53

6674264

RETAINER NUT

54

4DM8

NUT
