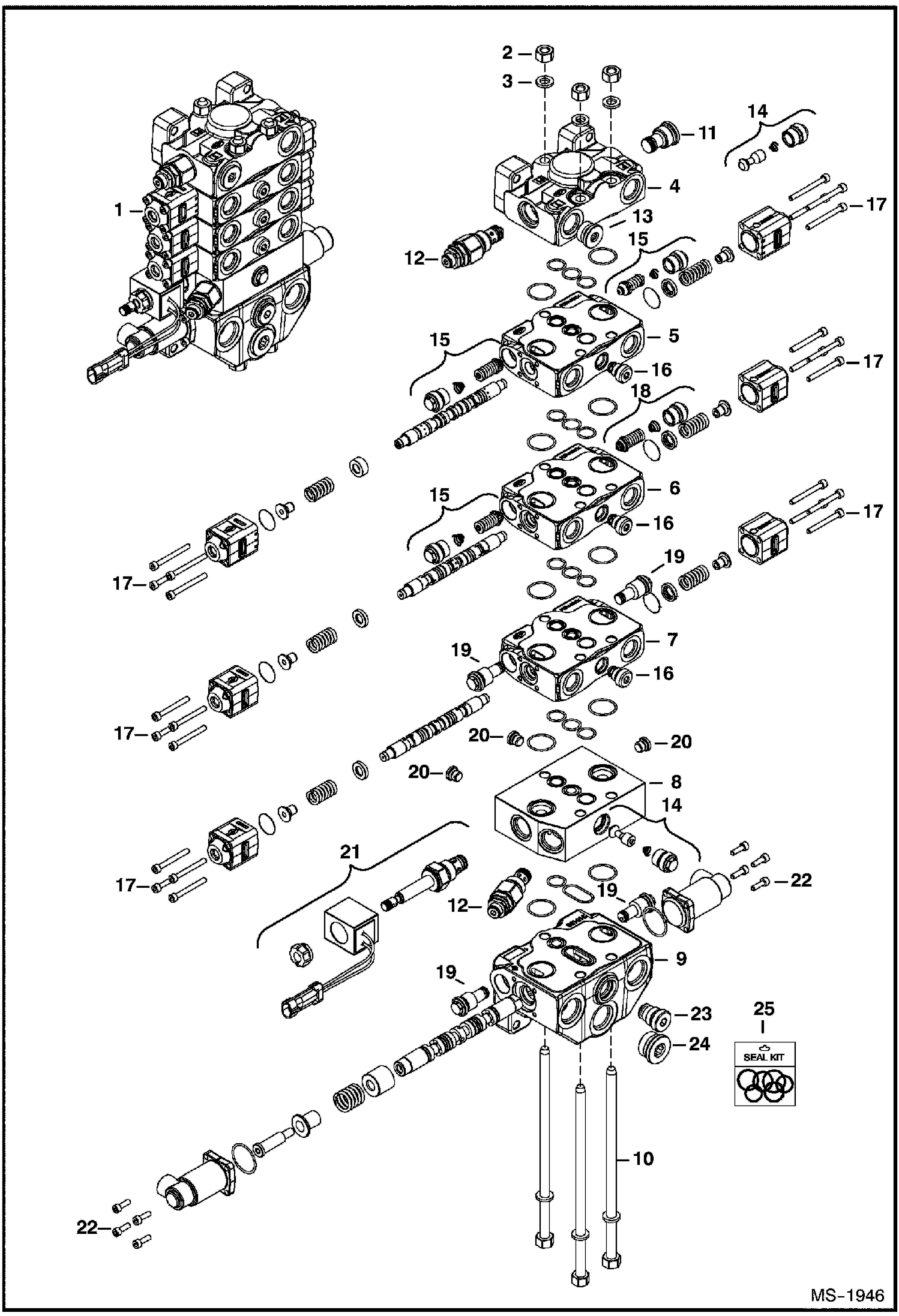

Запчасти Bobcat 5600 HIGH FLOW HYDRAULICS (Work Valve) HIGH FLOW HYDRAULICS

1

VALVE NLA - work - Ref. 2-25 - Order 6686737 - Was 6684680 - A

1

6686737

VALVE, CONTROL

2

NUT NSS

3

WASHER NSS

4

6686246

VALVE section

4

6682256

SEAL KIT

5

6691413

VALVE section - Was 6686250

5

6682251

KIT end cap

5

6686252

SEAL KIT

6

6686248

VALVE section

6

6682250

KIT end cap

6

6686252

SEAL KIT

7

6686249

VALVE section

7

6682250

KIT end cap

7

6686253

SEAL KIT

8

6686250

VALVE section

8

6686254

SEAL KIT

9

6686251

VALVE section

9

6691436

KIT, END CAP end cap

9

6686255

SEAL KIT

10

6686258

KIT mounting - Ref. 2 & 3

11

6680057

PLUG

12

6686238

VALVE relief

13

6679629

PLUG

14

VALVE See Service Letter SL5130 NLA - anti-cav - Order Ref. 15 work port relief valve - Was 6680247

15

6685304

VALVE assy - 3400 PSI - port relief/anti cav - Was 6680061

16

6680092

VALVE, LOCK LOAD

17

6682248

SCREW

18

6686242

VALVE work port relief

19

6686233

PLUG Was 6680060 - A

20

6686236

PLUG

21

6686243

KIT coil

21

6686234

COIL

21

6686239

STEM

22

6686237

SCREW

23

6686240

VALVE

24

6680058

PLUG

25

6686256

SEAL KIT complete
