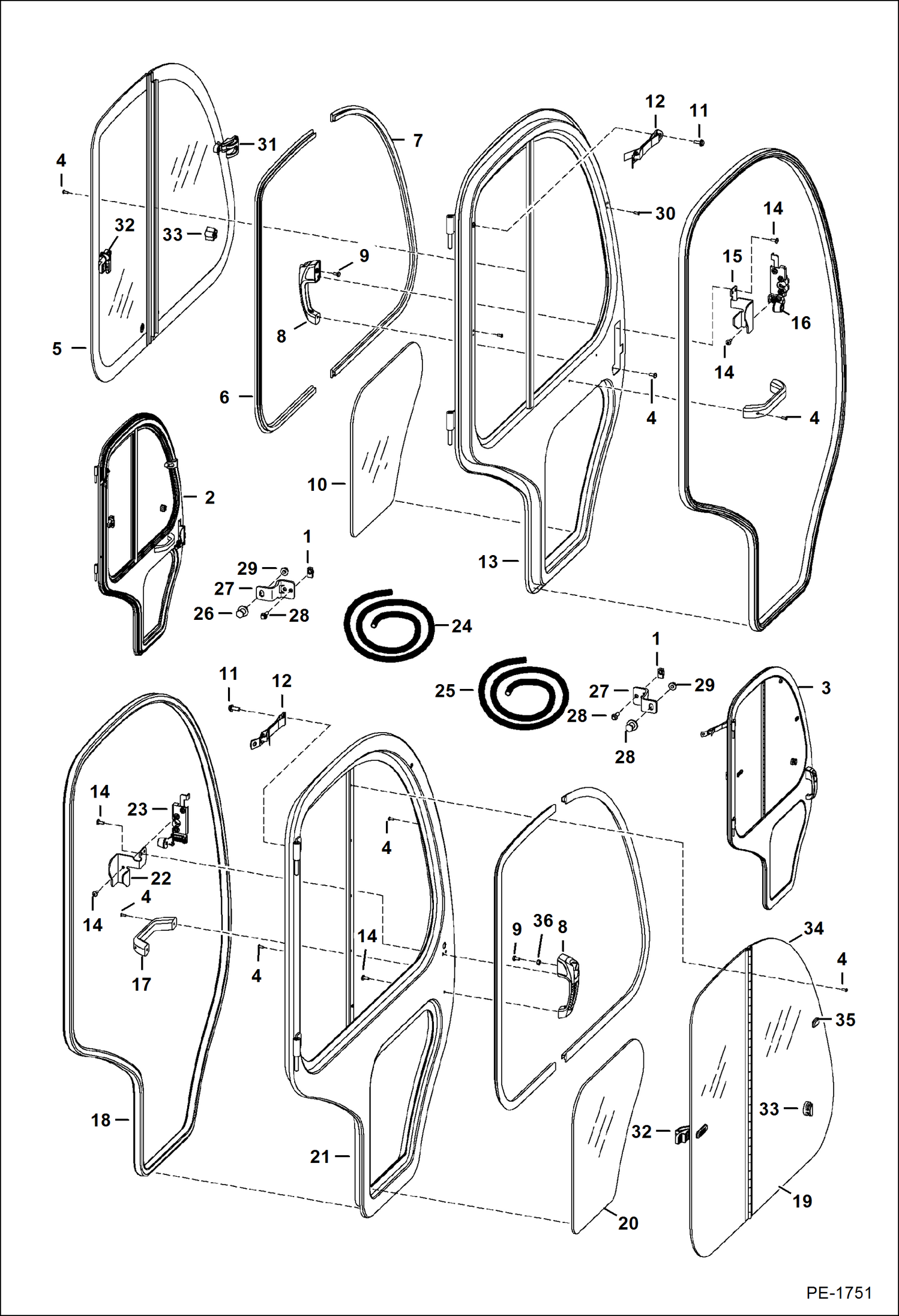

Запчасти Bobcat 5600 CAB ENCLOSURE ACCESSORIES & OPTIONS

1

6676169

NUT

2

6813444

DOOR driver- Ref. 4-18

3

6812896

DOOR passenger - Ref. 4, 6-9, 11, 12, 14, & 17-23

4

6814428

RIVET

5

GLASS NLA - top assy - Order 6816365 - Was 6813804 - A

5

7103606

WINDOW, DOOR CAB TOP LH driver side - top assy - W/Ref. 31-33 - Was 6816365 - A

6

SEAL NLA - 60'' (1524mm) long - Order Ref. 24

7

SEAL NLA - 64''(1625,6mm) long - Order Ref. 24

8

6674667

HANDLE

8

KEY NLA - two keys W/ring - Order 6693241 - Was 6709527 - A

8

6693241

KEY 10 ignition - single key W/O ring

9

1CM620

BOLT Was 17C000408B - A

10

6813625

GLASS, DOOR CAB LH lower - Was 6813624 - B,D

11

29CM816

SCREW

12

6681943

STRAP door

13

6813445

DOOR driver

13

6813945

HINGE

14

6803202

SCREW

15

BRACKET NLA - latch - Was 6813430 - A

15

7100378

BRACKET latch

16

6682267

LATCH

17

6680967

HANDLE grab

18

SEAL NLA - 176''(4470,4mm) long - Order Ref. 25

19

GLASS NLA - top assy - Order 6816366 - Was 6813807 - A

19

7103607

WINDOW, DOOR CAB UPPER RH passenger side - top assy - Was 6816366 - A

20

6813624

GLASS, DOOR CAB RH lower - Was 6813625 - B,D

21

6812895

DOOR passenger

21

6812897

HINGE

22

BRACKET NLA - latch - Was 6812304 - A

22

7100377

BRACKET latch

23

6682266

LATCH

24

6681569

SEAL bulk - Sold Per Foot

25

6675410

SEAL bulk - Sold Per Foot

26

6654170

STRIKER BOLT striker

27

7191628

BRACKET strikerbolt - Was 7144202 - A

28

29CM825

BOLT

29

55D7

NUT Was 51DM00010B - A

30

6630207

RIVET 5

31

6684581

FRONT LATCH driver side

32

6684582

REAR LATCH

33

6684583

KNOB

34

6684584

BUMPER stop

35

6684585

FRONT LATCH passenger side

36

1DM6

NUT Was 4DM6 - A
