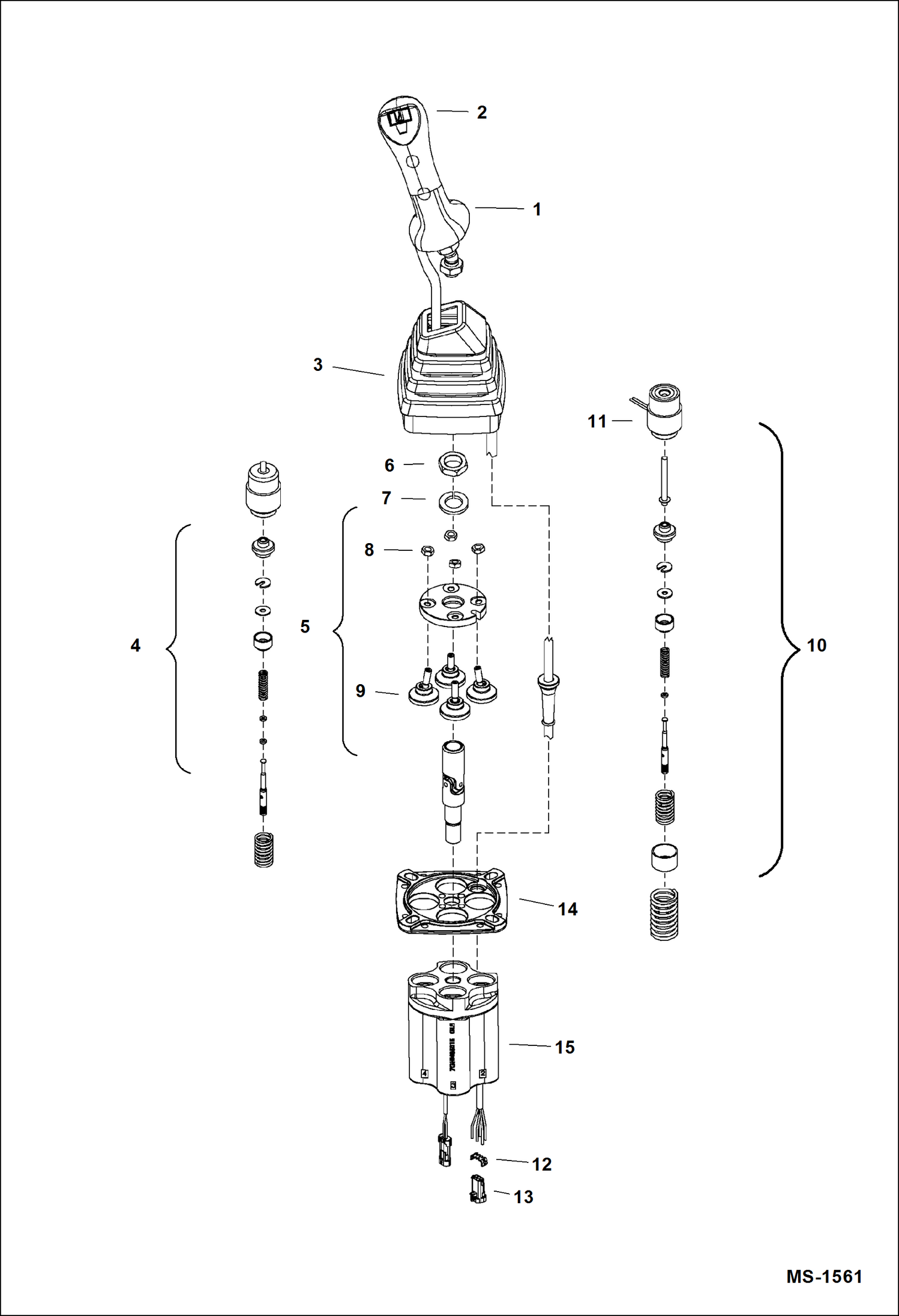

Запчасти Bobcat 5600 CONTROLS ELECTRICAL ELECTRICAL SYSTEM

1

6678764

JOYSTICK Ref. 2 & 15

2

6682237

HANDLE

3

6682238

BOOT

4

6682245

KIT

5

6682244

KIT Ref. 6-9

6

NUT NSS - Was 6682240 - A

7

WASHER NSS - Was 6682241 - A

8

NUT NSS - Was 6682239 - A

9

PIN KIT NSS - Was 6682242 - A

10

6682246

KIT

11

SOLENOID KIT NLA - Order Ref. 10 - Was 6682243 - A

12

6679958

LOCK

13

6679960

CONNECTOR

14

GASKET NSS

15

BODY NSS
