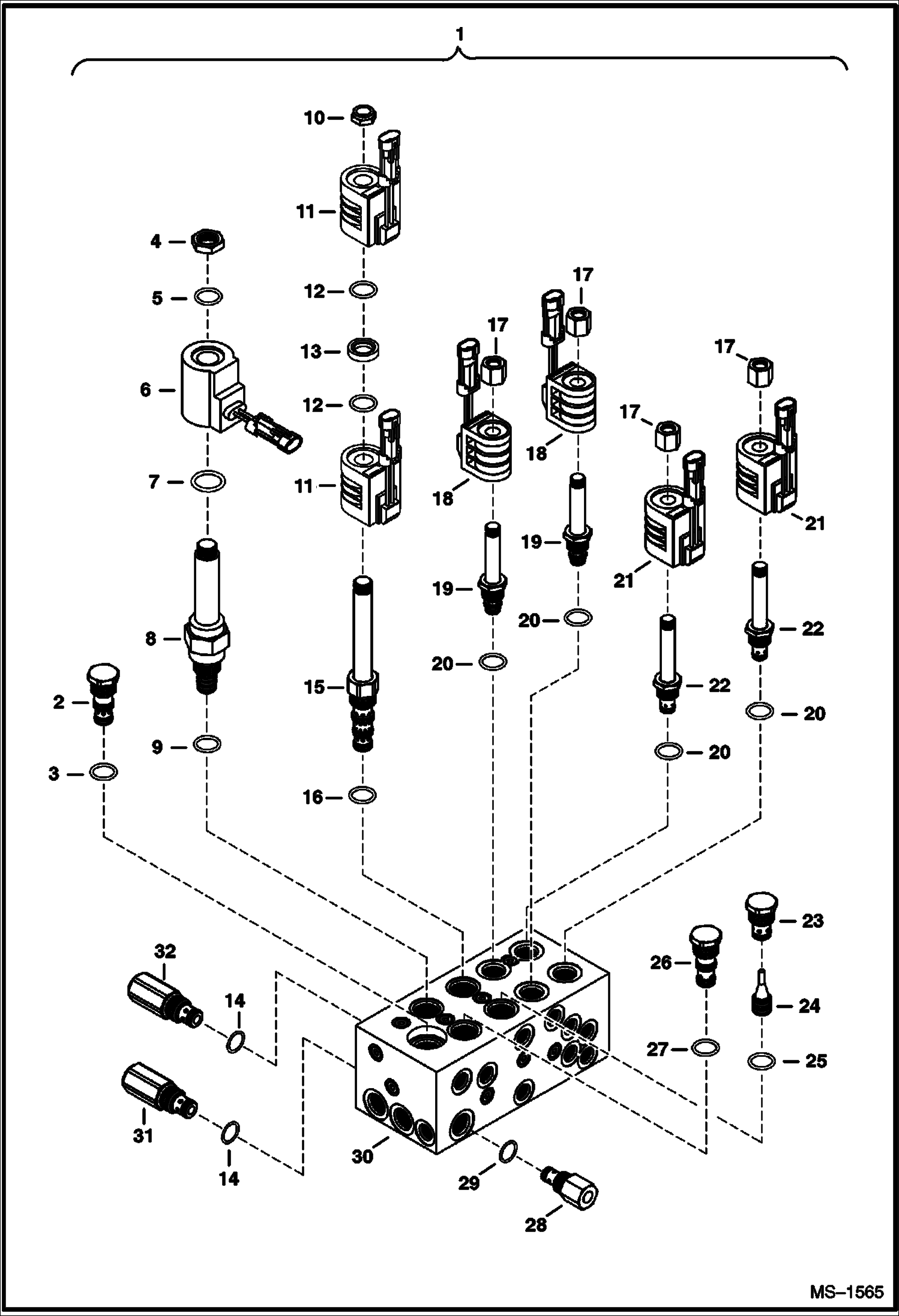

Запчасти Bobcat 5600 STEERING & BOX VALVE HYDROSTATIC SYSTEM

1

6680950

MANIFOLD ASSY steering & box - Ref. 2-32

2

6682570

VALVE pressure comp

3

6683240

SEAL KIT

4

6683245

NUT

5

6683248

O-RING

6

6682578

COIL 12 volts

7

6683249

O-RING

8

6682574

VALVE prop relief - W/Ref. 4, 5, 7 & 9

9

6683242

SEAL KIT Includes (2) o-rings

10

6683244

NUT

11

6682577

COIL 12 volts

12

6683247

O-RING

13

6683246

SPACER

14

7011172

KIT, SEAL

15

6682572

VALVE spool

16

6683241

SEAL KIT

17

6683243

NUT

18

6682575

COIL 12 volts

19

6682566

VALVE poppet

20

6683238

SEAL KIT

21

6682576

COIL 12 volts

22

6682565

VALVE bidirectional

23

6682573

VALVE check

24

6682579

PISTON ASSY

25

6667715

SEAL KIT Was 6657408 - A

26

6682567

VALVE check

27

6660357

SEAL KIT

28

6682571

VALVE flow control

29

6667716

SEAL KIT Was 6660786 - A

30

BLOCK NSS

31

6682569

VALVE relief - W/Ref. 14

32

6682568

VALVE relief - W/Ref. 14
