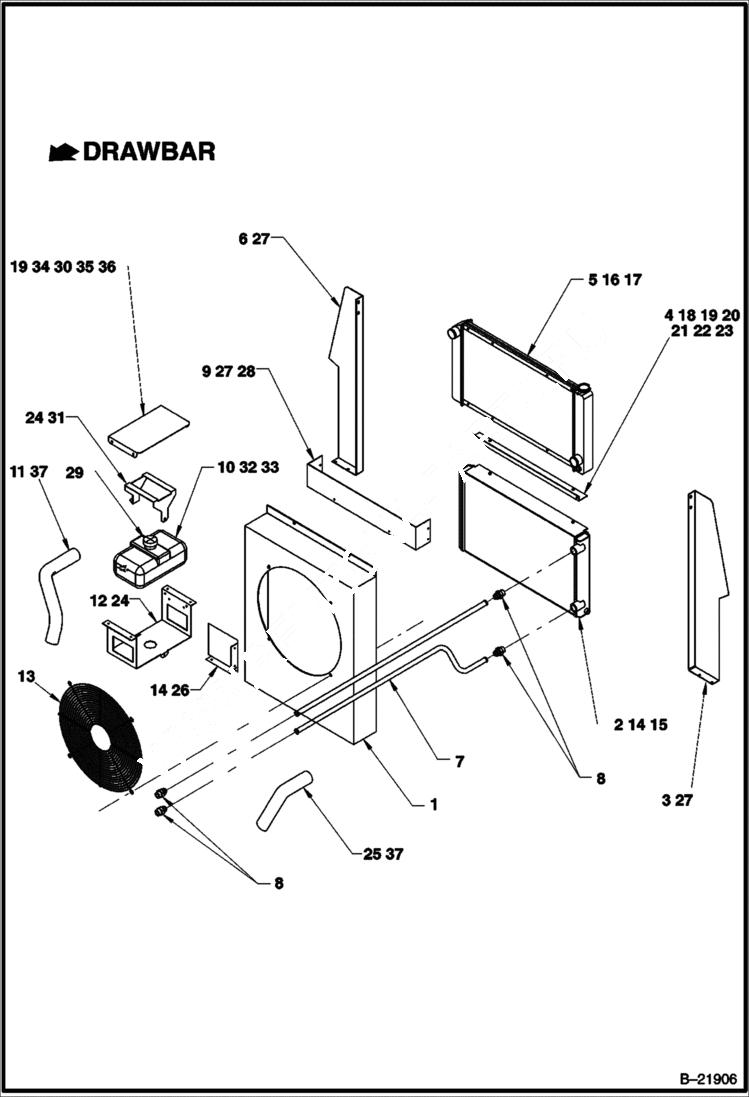

Запчасти Bobcat BAP185 COOLING COMPLETE MAIN FRAME

1

IR36889582

SHROUD Fan

2

IR36882934

COOLER Oil

3

IR54712807

BAFFLE Cooler Street Side

3

IR54729611

BAFFLE Cooler Street Side (Galvanneal)

4

IR36881480

BRACKET Rad/Oil Cooler

4

IR54529250

BRACKET Rad/Oil Cooler (Galvanneal)

5

IR36880516

RADIATOR

6

IR54712815

BAFFLE Cooler Curb Side

6

IR54729629

BAFFLE Cooler Curb Side (Galvanneal)

7

IR36880763

COOLER TUBE Oil

8

IR35295880

CONNECTOR 1 1/16-12

9

IR36881472

BAFFLE Cooler Top

9

IR54529243

BAFFLE Cooler Top (Galvanneal)

10

IR36782043

RESERVOIR Overflow

11

IR36881746

HOSE Radiator Top

12

IR36883866

SUPPORT Water Bottle

13

IR36884096

GUARD Fan

14

IR35279025

SCREW Tapping M08-125 X 20

15

IR95928230

PLUG Hex CTRSK

16

IR36785608

CAP Radiator

17

IR36782167

VALVE Drain

18

IR36785327

SCREW Hex M06-100 X 55

19

IR95935029

WASHER Flat 1/4

20

IR36769032

NUT Hex Lock M06

21

IR96702055

SCREW Hex M08-125 X 20

22

IR95934998

WASHER Flat 3/8

23

IR36881886

NUT Hex Flange M08

24

IR36797652

SCREW Tapping M06-100 X 12

25

IR36882967

HOSE Radiator Lower

26

IR36920858

GUARD Oil Cooler

27

IR92368687

SCREW Tapping M06-100 X 14

28

IR36877587

RIVET 3/16/2003

29

IR35382837

CAP Overflow Reservoir

30

IR35278720

PIN Quick Release

31

IR36883874

STRAP Water Bottle Holddown

32

IR35360775

HOSE 5/16/2003

33

IR35296342

CLAMP Hose

34

IR36884500

DOOR Radiator Access

34

IR54529342

DOOR Radiator Access (Galvanneal)

35

IR95934873

SCREW SOC HD SHLD 1/4-20 X 4

36

IR95923298

NUT Hex Lock 1/4-20

37

IR35221662

CLAMP Hose
