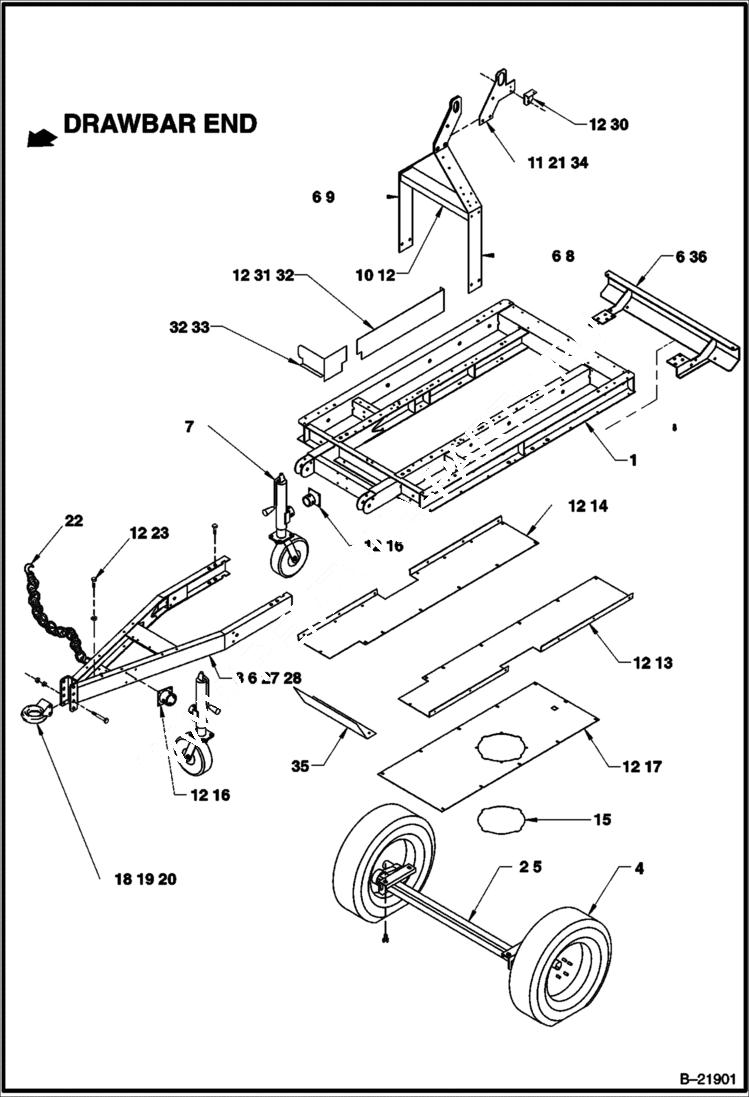

Запчасти Bobcat BAP185 FRAME & RUNNING GEAR MAIN FRAME

1

IR54436803

FRAME

2

IR22469860

RUNNING GEAR hub to hub - no tires or rims - includes axle - Was IR36880458 - A

3

IR36886364

DRAWBAR

4

IR35046275

TIRE ASSY. See Illustration 15'' TIRE AND WHEEL ASSEMBLY/ B21903 15'' assembly

5

IR36879302

SCREW Hex Flange HD M16 X 50

6

IR36789492

SCREW Hex Flange HD M12 X 25

7

IR36888709

JACK ASSY

8

IR36880862

BAIL STSD Lift

8

IR36680896

BAIL STSD Lift (185JD Only)

9

IR36880854

BAIL CRBSD Lift

9

IR36880888

BAIL CRBSD Lift (185JD Only)

10

IR36880870

CROSSMEMBER Lift Bail

10

IR36880904

CROSSMEMBER Lift Bail (185JD Only)

11

IR36882165

PLATE Bail Eye

12

IR35279025

SCREW Tapping M08-125 X 20

13

IR36882686

PAN STSD Belly

13

IR54529292

PAN STSD Belly (Galvanneal)

14

IR36882678

PAN CRBSD Belly

14

IR54529284

PAN CRBSD Belly (Galvanneal)

15

IR36880623

COVER Flexible Access

16

IR36796068

TUBE Jack Mounting

17

IR36880441

PAN Center Belly

17

IR54529086

PAN Center Belly (Galvanneal)

18

IR35605187

PINTLE EYE

19

IR35376094

SCREW Hex M16-200 X 120

20

IR96700885

NUT Hex M16

21

IR36879203

NUT Hex Flange M12

22

IR35610377

CHAIN ASSY

23

IR95934899

WASHER Flat 3/8

27

IR35290113

SCREW Hex M16-200 X 75

28

IR96704630

STOP NUT Nylock M16

30

IR36883510

ANGLE Roof Tie

31

IR36884708

GUARD Tool Box

32

IR36787652

SCREW Tapping M06-100 X 12

33

IR36884716

GUARD Battery

34

IR36877793

SCREW Hex Flange HD M12 X 40

35

IR36881423

BAFFLE Inlet

35

IR54529094

BAFFLE Inlet (Galvanneal)

36

IR36921930

BUMPER
