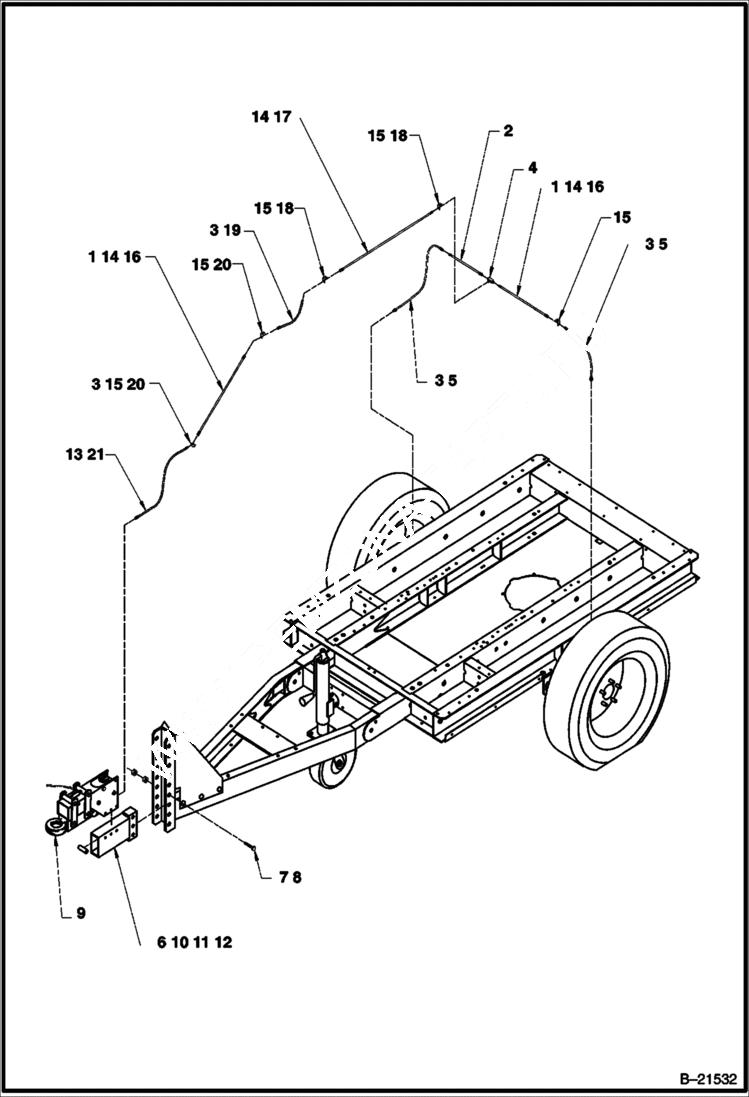

Запчасти Bobcat BAP185 ADJ HT HYDRAULIC BRAKE ACCESSORIES & OPTIONS

1

IR35356401

HOSE Brake 3/16 X 40

2

IR36881290

HOSE Brake 3/8 X 12

3

IR35356302

CLIP Hose

4

IR35356328

TEE 3/16 Inverted

5

IR35356369

TUBE Brake 3/16 X 10

6

IR36758647

SUPPORT Hydraulic Actuator

7

IR35376094

SCREW M16 -200

8

IR96700885

NUT Hex M16

9

IR35316611

ACTUATOR Hydraulic Brake

10

IR35333673

SPACER Hydraulic Drawbar

11

IR95935169

SCREW 1/2 - 13 X 4

12

IR95923348

NUT Nyloc 1/2 - 13

13

IR35605310

TUBING 3/16 X 18.88

14

IR37001252

CLAMP Support

15

IR35356310

BRACKET Hose Mounting

16

IR35300771

SCREW Tapping M06 - 100 X 20

17

IR36881274

HOSE Brake 3/16 X 50

18

IR92368687

SCREW Tapping M06 - 100 X 14

19

IR36881399

HOSE Brake 3/8 X 24

20

IR35279025

SCREW Tapping M08 - 125 X 20

21

IR35315746

ADAPTER
