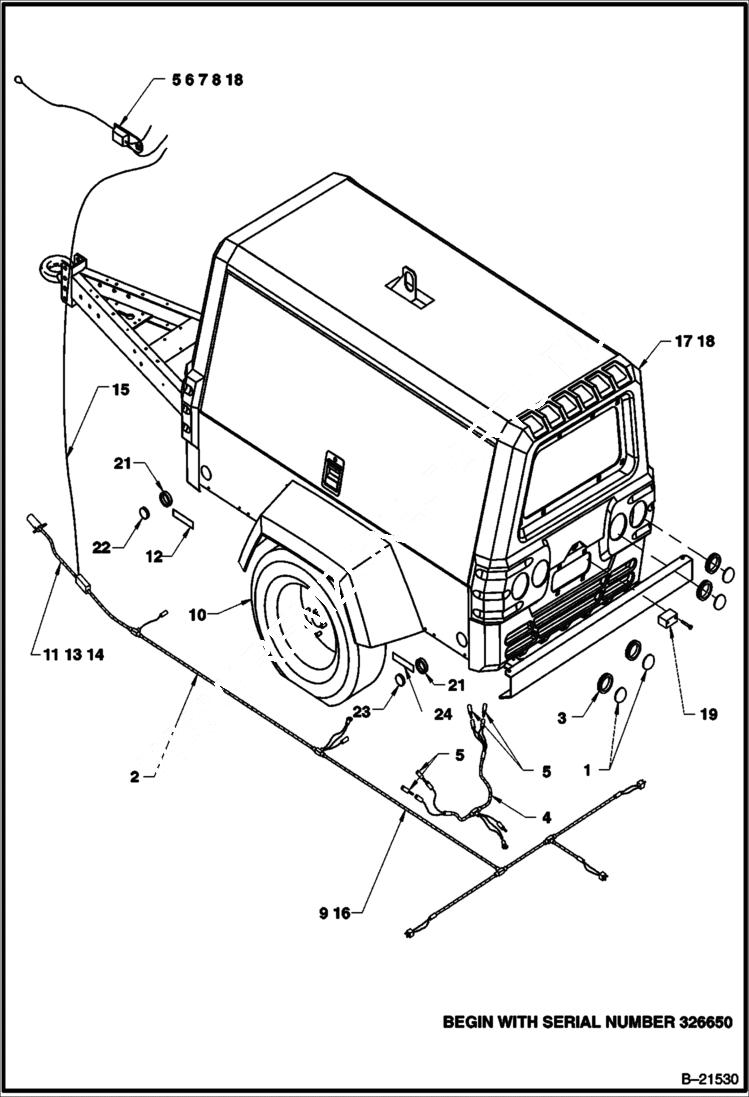

Запчасти Bobcat BAP185 ELEC BRK W/4-LIGHT ASSY ACCESSORIES & OPTIONS

1

IR36788081

TAIL LIGHT

2

IR36893345

HARNESS Tail Light

3

IR36787968

GROMMET

4

IR36895282

HARNESS Electric Brake

5

IR35375427

TERMINAL Snap

6

IR35315944

SWITCH Breakaway

7

IR37140365

TERMINAL Splice

8

IR35346337

TERMINAL Lug

9

IR35253038

CLAMP 3/8/2003

10

IR36881324

RUNNING GEAR Elec Brake w/ Running

11

IR92368687

SCREW Tapping M06 - 100 X 14

12

IR36894616

REFLECTOR Amber

13

IR36789261

HARNESS 6 Conductor Cable (Std Length Drawbar)

13

IR36787216

HARNESS 6 Conductor Cable (Ext Length Drawbar)

14

IR35225093

CLAMP 1/2

15

IR35120005

WIRE 40'' 14 GA Black

16

IR35279025

SCREW Tapping M08 - 125 X 20

17

IR54515606

CAP Rear End (Std. Paint)

17

IR54729157

CAP Rear End (Special Paint)

18

IR36797652

SCREW Tapping M06 - 100 X 12

19

IR54726468

LIGHT

21

IR36893634

GROMMET Clearance Light

22

IR35367051

LAMP Yellow Clearance

23

IR35367044

LAMP Red Clearance

24

IR36894608

RELFECTOR Red
