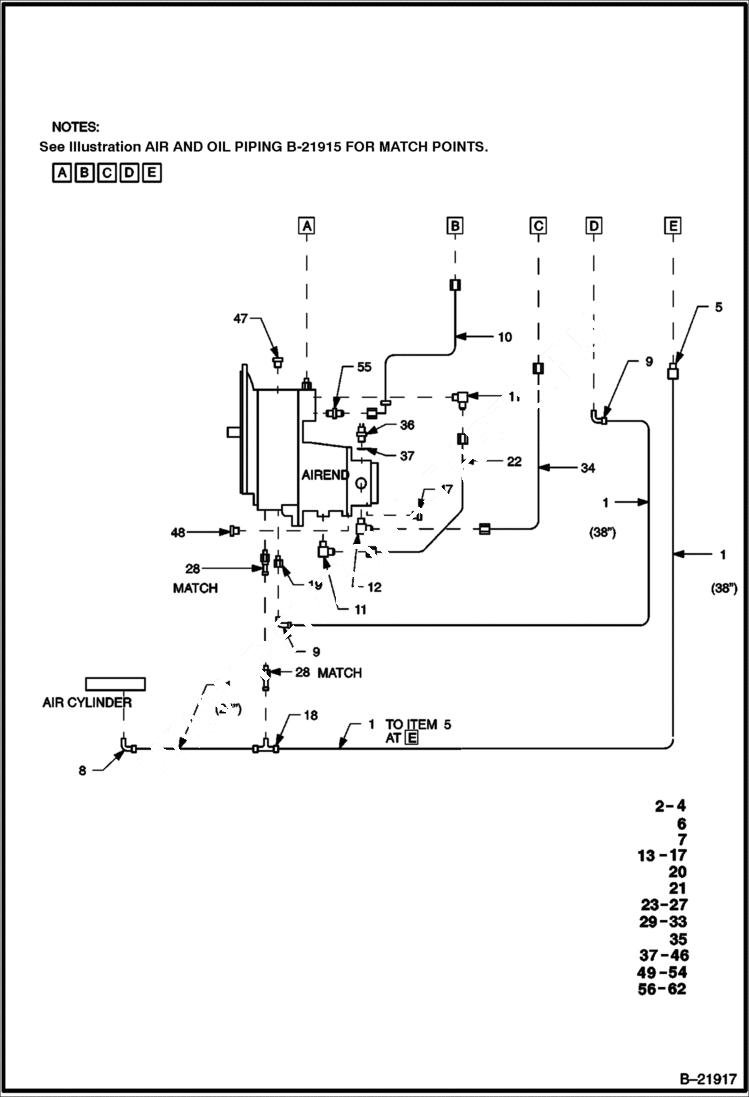

Запчасти Bobcat BAP185 AIR AND OIL PIPING MAIN FRAME

1

IR35356484

TUBING Was IR35353484 - D

2

IR35353484

TUBING

3

IR35353484

TUBING

4

IR35353484

TUBING

5

IR35369347

CONNECTOR

6

IR35369347

CONNECTOR

7

IR35369347

CONNECTOR

8

IR35370386

ELBOW 90 degress - 1/8NPT X 3/8

9

IR35369354

ELBOW 90 degrees - 1/4NPT X 3/8

10

IR35287721

HOSE ASSY

11

IR35286491

ELBOW 90 degrees - 7/8-14

12

IR35374867

ELBOW 90 degrees - 1 7/8-12

13

IR35374867

ELBOW

14

IR35374867

ELBOW

15

IR35374867

ELBOW

16

IR35374867

ELBOW

17

IR35374867

ELBOW

18

IR35369396

TEE 1/8NPT

19

IR35302314

ADAPTER

20

IR35302314

ADAPTER

21

IR35302314

ADAPTER

22

IR36764553

TUBE ASSY

23

IR36764553

TUBE ASSY

24

IR36764553

TUBE ASSY

25

IR36764553

TUBE ASSY

26

IR36764553

TUBE ASSY

27

IR36764553

TUBE ASSY

28

VALVE NLA - Check .093 - Order IR36840437 - Was IR3684043 - A

29

VALVE NLA - Check .093 - Order IR36840437 - Was IR3684043 - A

30

VALVE NLA - Check .093 - Order IR36840437 - Was IR3684043 - A

31

VALVE NLA - Check .093 - Order IR36840437 - Was IR3684043 - A

32

VALVE NLA - Check .093 - Order IR36840437 - Was IR3684043 - A

33

VALVE NLA - Check .093 - Order IR36840437 - Was IR3684043 - A

34

IR36886752

HOSE Discharge

35

IR36886752

HOSE

36

IR35596436

SWITCH Shutdown

37

IR35596436

SWITCH

38

IR35596436

SWITCH

39

IR35596436

SWITCH

40

IR35596436

SWITCH

41

IR35596436

SWITCH

42

IR35596436

SWITCH

43

IR35596436

SWITCH

44

IR35596436

SWITCH

45

IR35596436

SWITCH

46

IR35596436

SWITCH

47

IR35289057

PLUG Hex 5/8-18

48

IR35289057

PLUG Hex 7/16-20

49

IR35289057

PLUG

50

IR35289057

PLUG

51

IR35289057

PLUG

52

IR35289057

PLUG

53

IR35289057

PLUG

54

IR35289057

PLUG

55

IR36885093

ELBOW 90 degrees - Long

56

IR36885093

ELBOW

57

IR36885093

ELBOW

58

IR36885093

ELBOW

59

IR36885093

ELBOW

60

IR36885093

ELBOW

61

IR36885093

ELBOW

62

IR36885093

ELBOW
