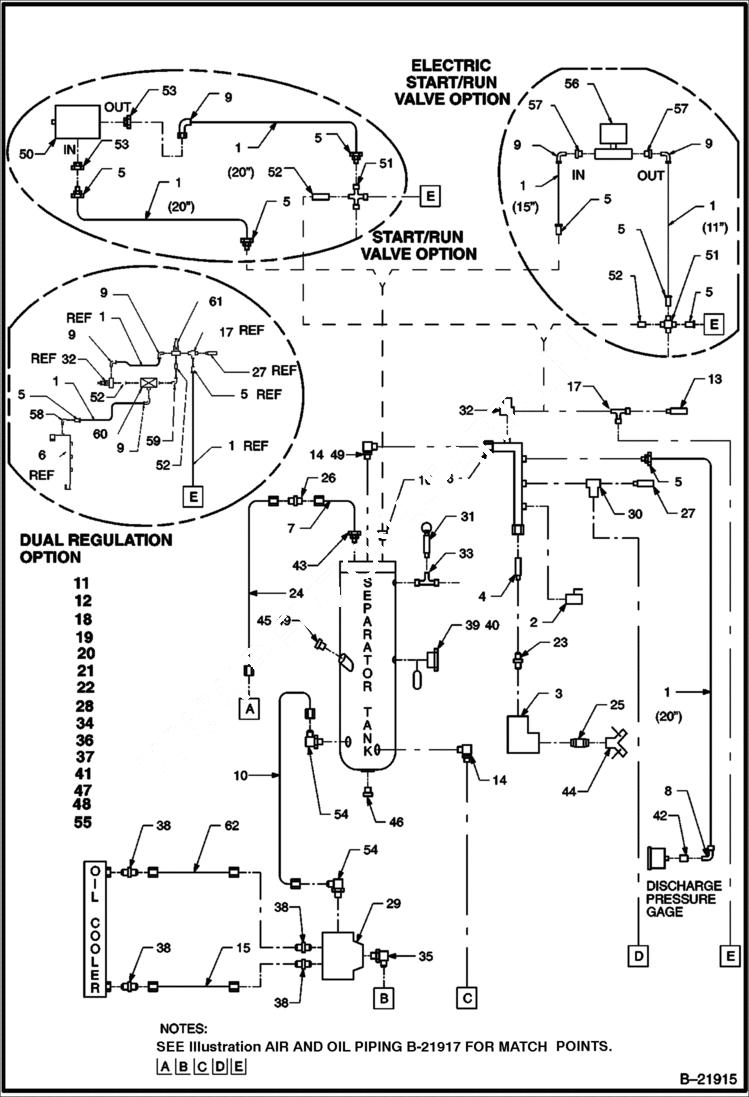

Запчасти Bobcat BAP185 AIR AND OIL PIPING MAIN FRAME

1

IR35356484

TUBING

2

IR35324839

VALVE Ball

3

IR95953378

ELBOW 90 degrees - 1 1/4NPT

4

IR36921377

NOZZLE Sonic

5

IR35369347

CONNECTOR

6

IR36880672

SERVICE TUBE

7

IR36781227

TUBE

8

IR35370386

ELBOW 90_ degrees - 1/4NPT X 3/8

9

IR35369354

ELBOW 90 degrees - 1/4NPT X 3/8

10

IR35287721

HOSE ASSY

11

IR35287721

HOSE ASSY

12

IR35374867

ELBOW 90 degrees - 1 7/8-12

13

IR36766756

ORIFICE .140 Orifice

14

IR35279777

ELBOW 90 degrees - 1 5/8-12

15

IR36880763

COOLER TUBE

16

IR95928230

PLUG

17

IR35114545

TEE Street 1/4NPT

18

IR35114545

TEE

19

IR35114545

TEE

20

IR35114545

TEE

21

IR35114545

TEE

22

IR35114545

TEE

23

IR95219770

ADAPTER 1 1/4NPT

24

IR35315407

HOSE ASSY

25

IR95916268

NIPPLE

26

IR36840437

VALVE Orifice/Check

27

IR36766772

MUFFLER .062 Orifice

28

IR36766772

MUFFLER

29

IR54411665

OIL TEMP VALVE Bypass - Was IR36884179 - A

30

IR35322379

VALVE Blowdown

31

IR35325166

VALVE Safety

32

IR36896892

REGULATOR Pressure Regulator - Was IR36854149 - A

33

IR95944708

TEE Street

34

IR95944708

TEE

35

IR35294750

ELBOW 90 degrees - 1 1/16-12

36

IR35294750

ELBOW

37

IR35294750

ELBOW

38

IR35295880

CONNECTOR Straight

39

IR36891083

INDICATOR

40

IR36891489

POINTER ASSY

41

IR36891489

POINTER ASSY

42

IR95930319

COUPLING

43

IR35329309

LENZ FITTING

44

IR36881076

VALVE

45

IR35579630

PLUG

46

IR95664934

PLUG

47

IR95664934

PLUG

48

IR95664934

PLUG

49

IR35279942

O-RING

50

IR36783439

VALVE 2-Way Start/Run

51

IR95954293

CROSS 1/4 NPT

52

IR95667341

NIPPLE 1/4NPT X .88

53

IR35302314

ADAPTER

54

IR35294727

ELBOW 45 degrees

55

IR35294727

ELBOW

56

IR36843142

VALVE Solenoid

57

IR95940748

BUSHING Reducing 3/8 - 1/4

58

IR95954095

ELBOW 90 degrees - .25 NPT

59

IR95944666

ELBOW 90 degrees - Street .25 NPT

60

IR36864684

VALVE 3-Way .25 NPT

61

IR35359090

REGULATOR Press Reg 150 PSI

62

IR36920353

ASSEMBLY Tube
