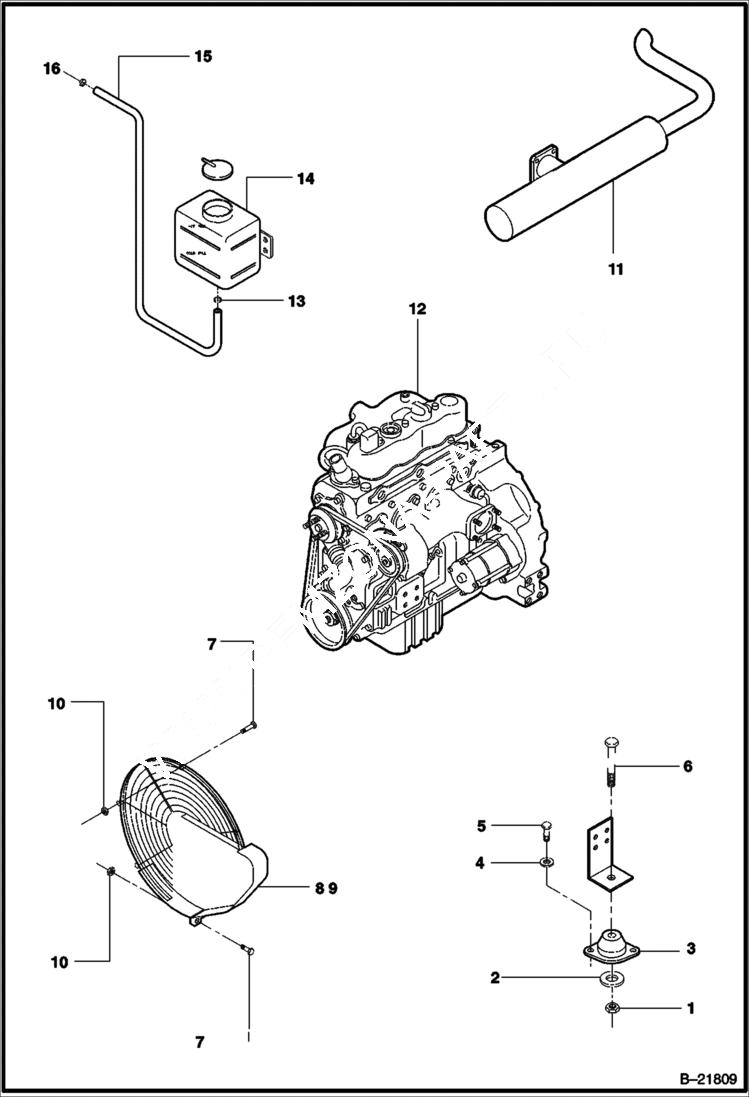

Запчасти Bobcat 6KW ENGINE ASSEMBLY (CONT) MAIN FRAME

1

IR35273366

NUT

2

IR36899037

WASHER

3

IR36875565

ISOLATOR

4

IR95934998

WASHER

5

IR35279025

SCREW

6

IR96730411

SCREW

7

IR36898096

SCREW

8

IR36868727

GUARD Fan

9

IR36871614

BRACKET Mounting

10

IR36898104

NUT

11

IR36923431

MUFFLER

12

IR36890382

ENGINE Kubota (905 Series)

13

IR35296342

CLAMP

14

IR36884948

BOTTLE Coolant

15

IR35363498

HOSE 27''

16

IR35363498

HOSE From Radiator

16

IR36870574

FILTER Engine Oil (Not Illustrated)

16

IR36870566

FILTER Engine Fuel (Not Illustrated)

16

IR36890135

FILTER Engine Air (Not Illustrated)

16

IR36878379

SWITCH 12 PSI (Not Illustrated)

16

IR36868479

SWITCH Water Temperature (Not Illustrated)

16

IR36861656

RELAY 80 AMP (Not Illustrated)

16

IR44004539

SOLENOID KIT solenoid not illustrated - Was IR36878189

16

IR36878197

GASKET Solenoid (Not Illustrated)

16

6988711

ALTERNATOR Not Illustrated - Was IR36888170 - A

16

IR36888501

ENGINE FAN Not Illustrated

16

IR36888477

HOSE Radiator Bottom (Not Illustrated)

16

IR36888485

HOSE CLAMP Not Illustrated

16

IR36888493

FAN BELT Not Illustrated

16

IR36888188

STARTER Not Illustrated

16

IR36888451

RADIATOR Not Illustrated

16

IR36888469

HOSE Radiator Top (Not Illustrated)
