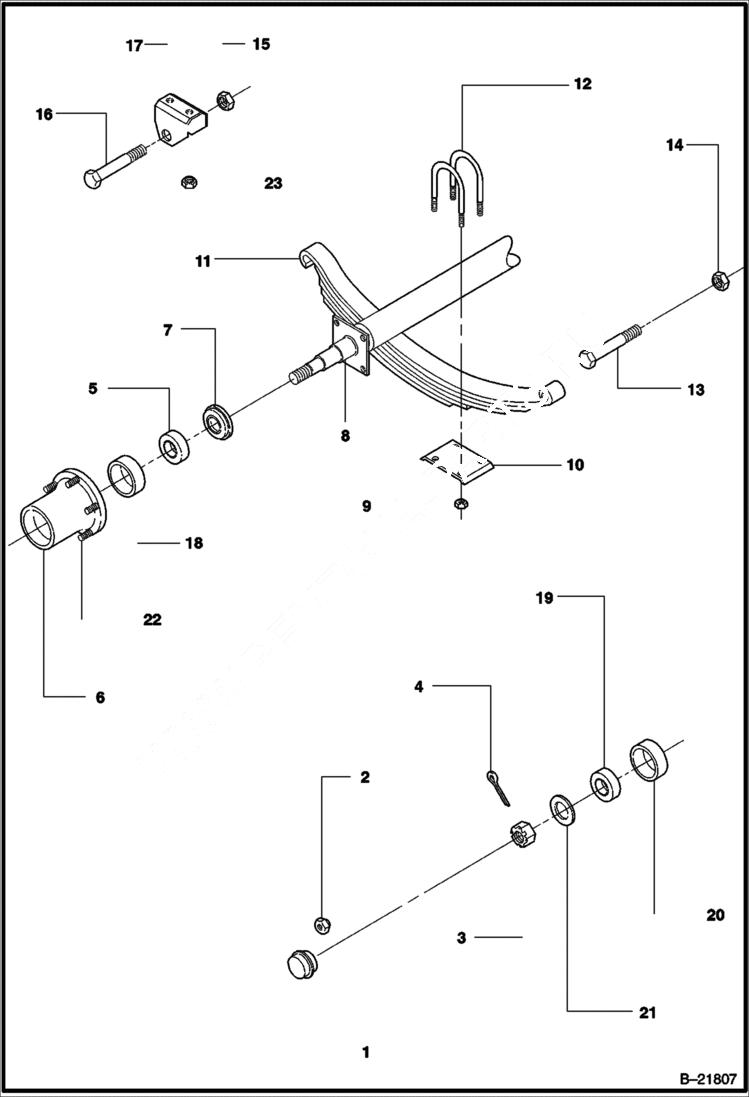

Запчасти Bobcat 6KW RUNNING GEAR ASSEMBLY (CONT) MAIN FRAME

1

IR35315233

GREASE CAP

2

IR35315274

NUT

3

IR35315217

NUT Spindle

4

IR35315225

PIN Cotter

5

IR35361864

CONE Inner & Outer

6

IR35361880

HUB

7

IR35315142

GREASE SEAL Grease

8

IR35393974

BEAM Axle

9

IR35392158

NUT U-Bolt

10

IR35315241

PLATE Tie

11

IR35392083

SPRING Slipper

12

IR35315118

U-BOLT

13

IR35315340

BOLT Shackle

14

IR35315357

NUT Top Lock

15

IR35315373

NUT Keeper

16

IR35315365

BOLT Keeper

17

IR54379441

HANGER Rear

18

IR35361872

CUP Bearing

19

IR35315191

CONE Outer

20

IR35315183

CUP Bearing

21

IR35315209

WASHER

22

IR35361898

STUD

23

IR36879203

NUT
