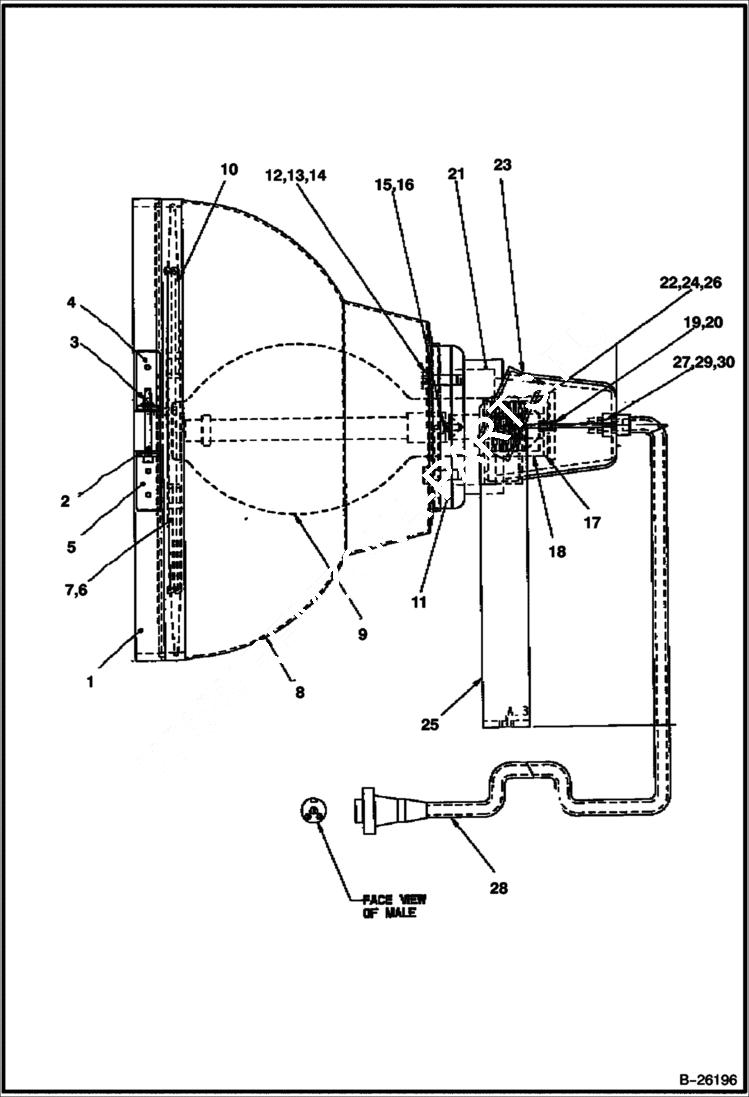

Запчасти Bobcat 6KW OPTICAL/SOCKET ASSY IR S/N 336845 & Above MAIN FRAME

1

IR22515480

BAND ASSY

2

IR22515498

SCREW

3

IR22515506

NUT

4

IR22515514

CLAMP

5

IR22515522

CLAMP

6

IR22515530

18.5'' 18.5'' gasket

7

IR22515548

LENS GLASS 18.5''

8

IR22515555

REFLECTOR

9

IR36847747

LAMP

10

IR22515571

BRACE

11

IR22515589

REFLECTOR GASKET

12

IR22515597

SCREW

13

IR22515605

RIVET

14

IR22515613

RING

15

IR22515621

SCREW

16

IR22515639

BRACKET

17

IR22515647

INSULATOR

18

IR22515654

SOCKET BULB

19

IR22515662

SCREW

20

IR22515670

PLATE3

21

IR22515688

CASTING

22

IR22515696

BOLT

23

IR22515704

ADJUSTMENT HANDLE

24

IR22515712

TOOTH

25

IR22515720

TRUNION

26

IR22515738

LOCK NUT

27

IR36779346

LAMP CORD

28

IR22515753

CORD

29

IR22515761

WIRE NUT

30

IR22515779

SLEEVE
