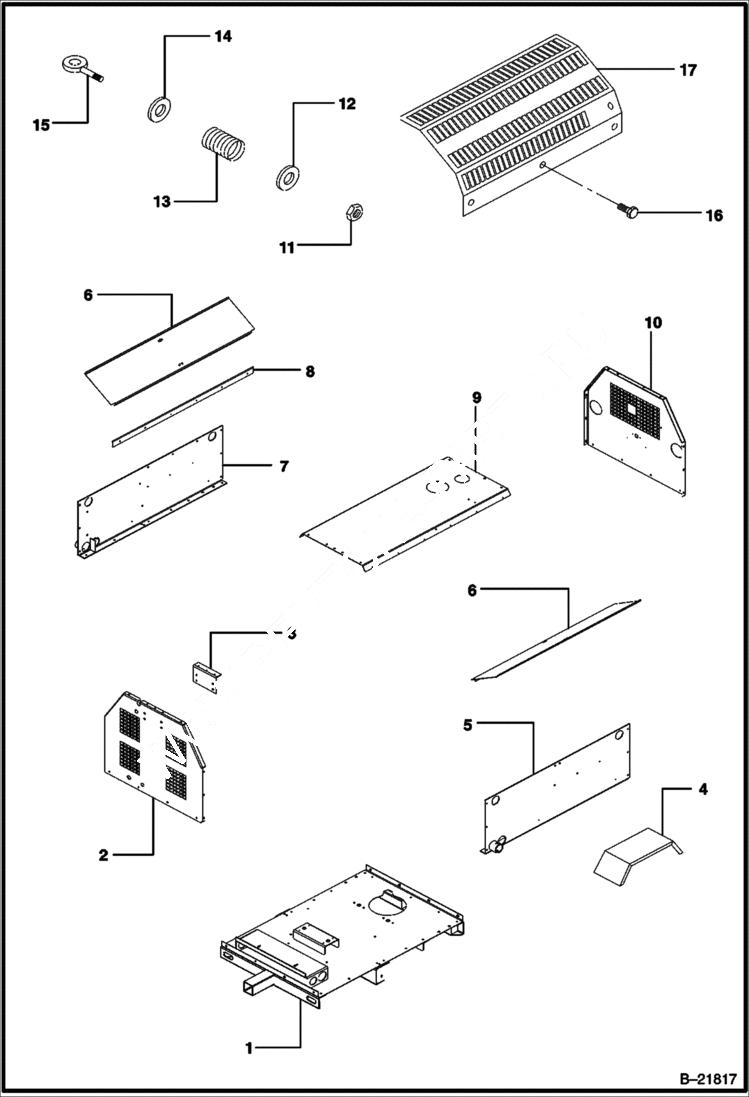

Запчасти Bobcat 6KW FRAME AND ENCLOSURE (CONT) MAIN FRAME

1

IR36923209

FRAME

2

IR36923142

PANEL Front

3

IR36923233

SUPPORT Front Panel

4

IR36877579

FENDER

5

IR36923217

PANEL L.H. Side

6

IR36923183

DOOR

7

IR36923225

PANEL R.H. Side

8

IR36923175

HINGE

9

IR36923167

ROOF

10

IR36923159

PANEL Rear

11

IR95923298

NUT

12

IR36772028

WASHER Nylon

13

IR35607837

SPRING

14

IR95935029

WASHER

15

IR35607829

EYEBOLT

16

IR54370259

SHIELD Heat

17

IR35279025

SCREW

17

IR36923134

BRACKET Door Bolt (Not Illustrated)
