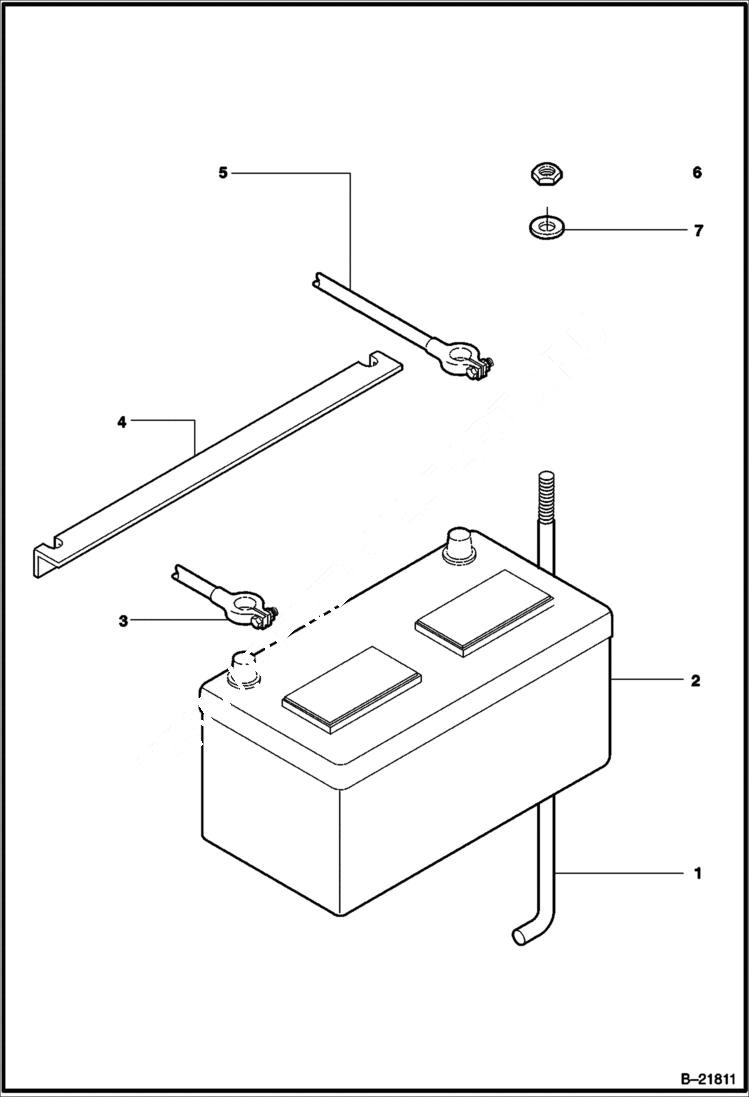

Запчасти Bobcat 6KW BATTERY AND MOUNTING (CONT) MAIN FRAME

1

IR36923282

ROD Battery Hold-Down

2

IR36844967

BATTERY 12V

3

IR36892685

CABLE Negative (37'')

4

IR36853257

ANGLE Tie Down

5

IR35516582

CABLE Positive (48'')

6

IR95923298

NUT

7

IR36853265

WASHER

7

IR35578194

STRAP Ground (Not Illustrated)
