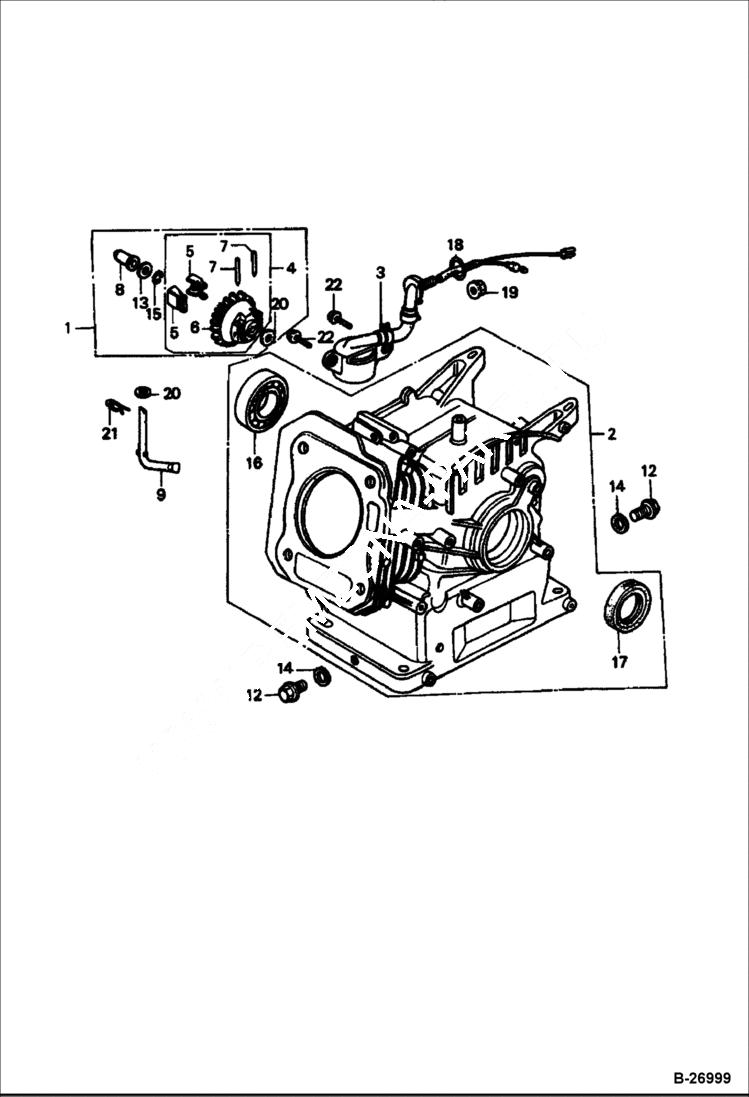

Запчасти Bobcat VIBRATORY PLATE COMPACTOR ENGINE (Governor) BC15 POWER UNIT

1

IR59243295

GOVERNOR KIT Ref. 4, 8, 13, 15 & 20

2

IR13221023

CYLINDER ASSY Ref. 16 & 17

3

IR54474168

SWITCH ASSY

3

IR54474176

SWITCH ASSY

4

IR59243311

GOVERNOR Ref. 5-7

5

IR59243329

WEIGHT

6

IR59243337

WEIGHT HOLDER

7

IR59243345

WEIGHT PIN

8

IR59243352

SLIDER

9

IR59243360

ARM SHAFT

12

IR59243378

DRAIN PLUG

13

IR59243386

THRUST WASHER

14

IR59243394

CLIP

15

IR59243600

CLIP

16

IR59243618

BEARING

17

IR59243626

OIL SEAL

18

IR54474226

O-RING

19

IR54474234

FLANGE NUT

20

IR59243634

WASHER

21

IR59243642

LOCK PIN

22

IR54474259

FLANGE BOLT
