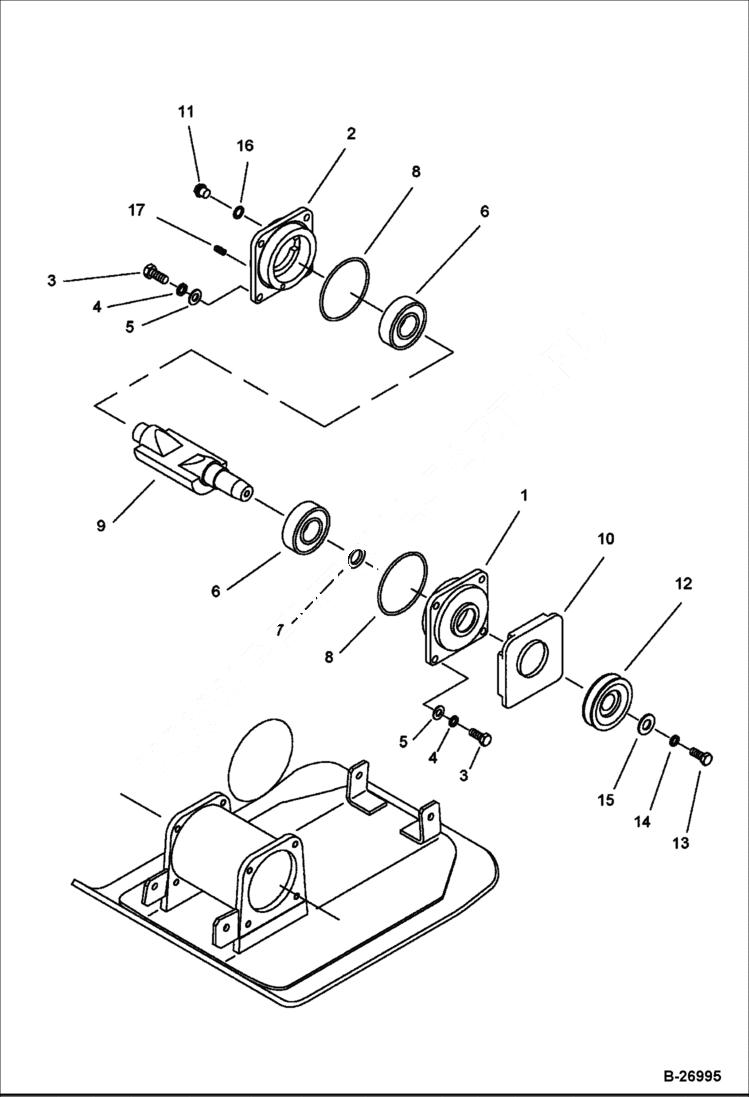

Запчасти Bobcat VIBRATORY PLATE COMPACTOR VIBRATION ASSEMBLY MAIN FRAME

1

IR22195051

Bearing Case (A)

2

IR22195069

Bearing Case (B)

3

IR59832287

BOLT

4

IR59951632

SPRING WASHER

5

IR59831842

Washer

6

IR59831149

BALL BEARING

7

IR59831156

OIL SEAL

8

IR22195077

O-ring

9

IR22195085

Eccentric Shaft (BC15)

9

IR22195275

Eccentric Shaft (BC19)

9

IR22195366

Eccentric Shaft (BC22)

10

IR22195093

Rubber Cover

11

IR59831123

PLUG

12

IR58837709

PULLEY

13

IR59952242

BOLT

14

IR59951632

SPRING WASHER

15

IR59236182

WASHER

16

IR59831131

PACKING

17

IR22195101

Plug
