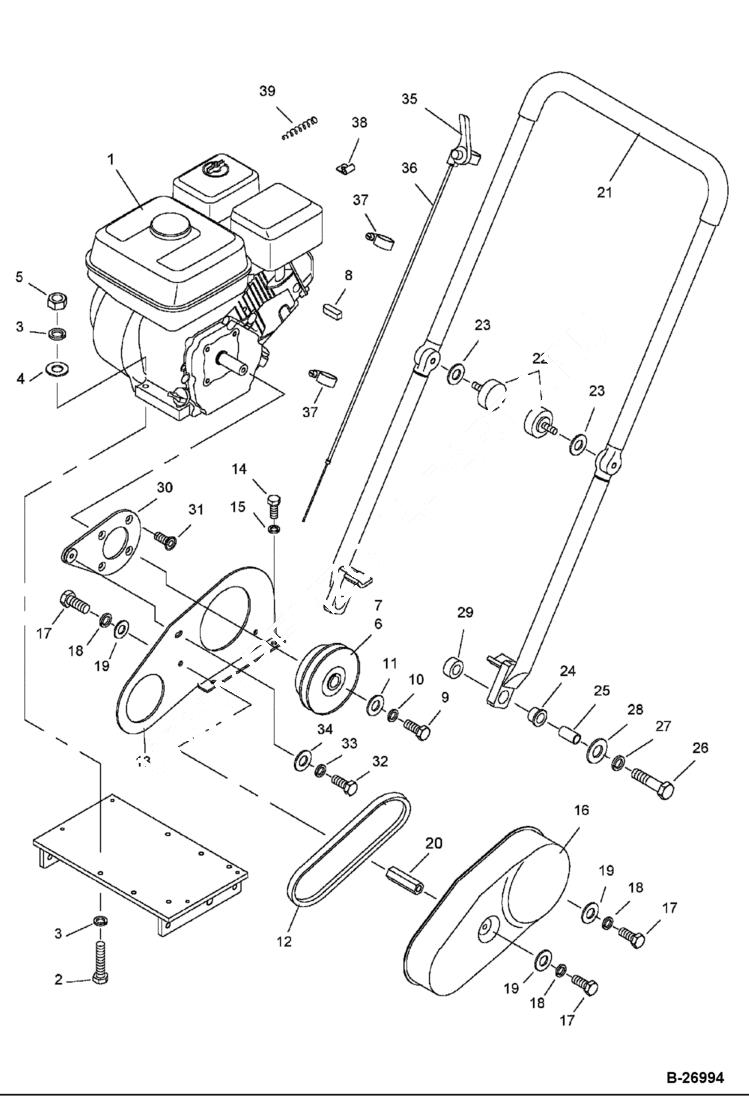

Запчасти Bobcat VIBRATORY PLATE COMPACTOR MAIN FRAME (Engine & Clutch) MAIN FRAME

1

IR58836438

HONDA ENGINE BC15

1

IR58836446

ENGINE ASSY BC19/BC22

2

IR22194898

Bolt

3

IR59831925

SPRING WASHER

4

IR59835371

WASHER

5

IR59832931

NUT

6

IR22194906

Clutch Assembly (BC15)

6

IR22195234

Clutch Assembly (BC19/BC22)

7

IR22194914

Clutch Shoe Assembly (BC15)

7

IR22195242

Clutch Shoe Assembly (BC19/BC22)

8

IR59831032

KEY

9

IR59952325

BOLT

10

IR59831925

SPRING WASHER

11

IR22069843

Washer

12

IR22194922

V BELT BC15

12

IR22195259

V-BELT (BC22) BC19/BC22

13

IR22194930

Inside Cover

14

IR59188144

BOLT

15

IR59831925

SPRING WASHER

16

IR22194948

Pulley Cover

17

IR59832535

BOLT

18

IR59831925

SPRING WASHER

19

IR22069843

Washer

20

IR22194955

Boss (A)

21

IR22194963

Operating Handle (BC15)

21

IR22195267

Operating Handle (BC19/BC22)

22

IR59188490

HANDLE BOLT

23

IR59841106

WASHER

24

IR22194971

Bushing

25

IR22194989

Coller (A)

26

IR22194997

Bolt

27

IR59832618

SPRING WASHER

28

IR54693189

Washer

29

IR22195002

Coller (B)

30

IR22195010

Bracket

31

IR22195028

Screw

32

IR59832535

BOLT

33

IR59831925

SPRING WASHER

34

IR22069843

Washer

35

IR59830315

THROTTLE LEVER

36

IR22195036

THROTTLE CABLE

37

IR59830331

WIRE BAND

38

IR59840082

CLAMP

39

IR22195044

Return Spring
