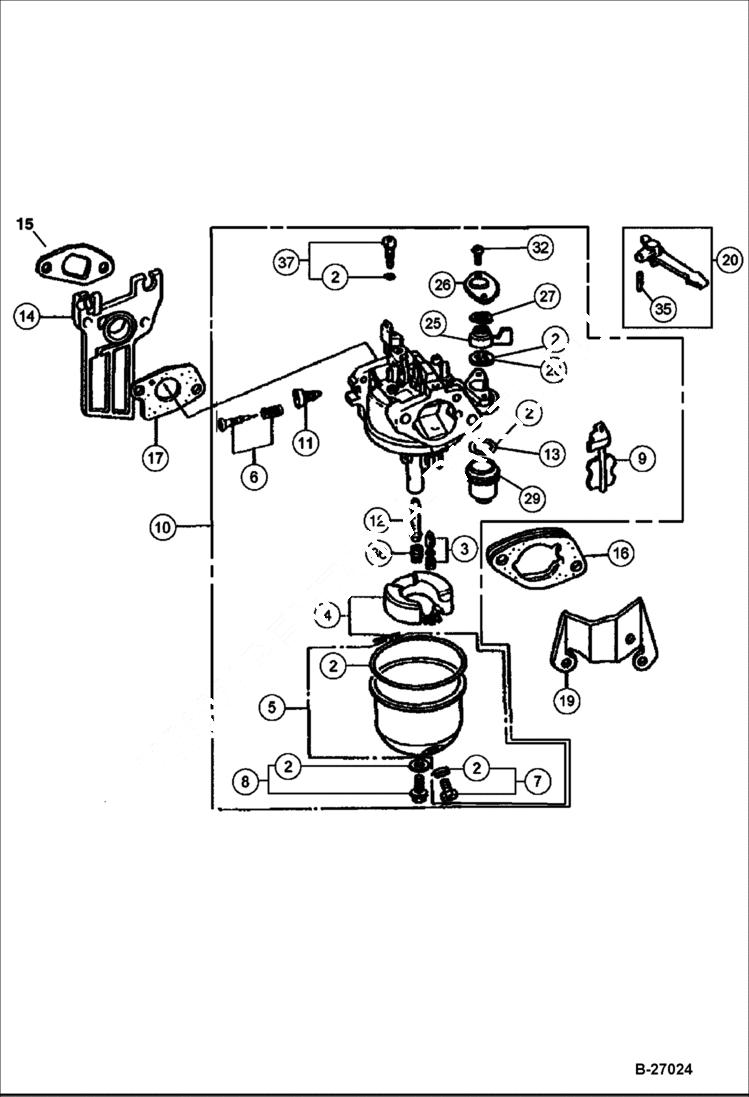

Запчасти Bobcat VIBRATORY PLATE COMPACTOR ENGINE (Carburetor) BC19, BC22 POWER UNIT

2

IR54475108

GASKET SET

3

IR59244186

FLOAT VALVE SET

4

IR59244194

FLOAT SET

5

IR59244202

CHAMBER SET W/Ref. 7

6

IR59244210

SCREW SET

7

IR59244228

SCREW SET W/gasket

8

IR59244236

SCREW SET

9

IR59244244

CHOKE SET

10

IR54475124

CARBURETOR Ref. 3-6, 8, 9, 11-13, 25-29, 32, 36 & 37

11

IR54475140

STOP SCREW

12

IR54475173

MAIN NOZZLE

13

IR54475181

PACKING

14

IR54475199

INSULATOR

15

IR54475215

PACKING

16

IR59244285

SPACER

17

IR54475249

PACKING

19

IR54475264

BRACKET

20

IR59244301

CHOKE LEVER W/Ref. 35

25

IR54475322

COCK LEVER

26

IR54475330

PLATE

27

IR54475348

LEVER SPRING

28

IR54475314

PACKING

29

IR54475355

STRAINER CUP

32

IR54475363

PAN SCREW

35

IR54475371

SPRING PIN

36

IR54475405

MAIN JET W/gasket

37

IR59244327

PILOT JET SET
