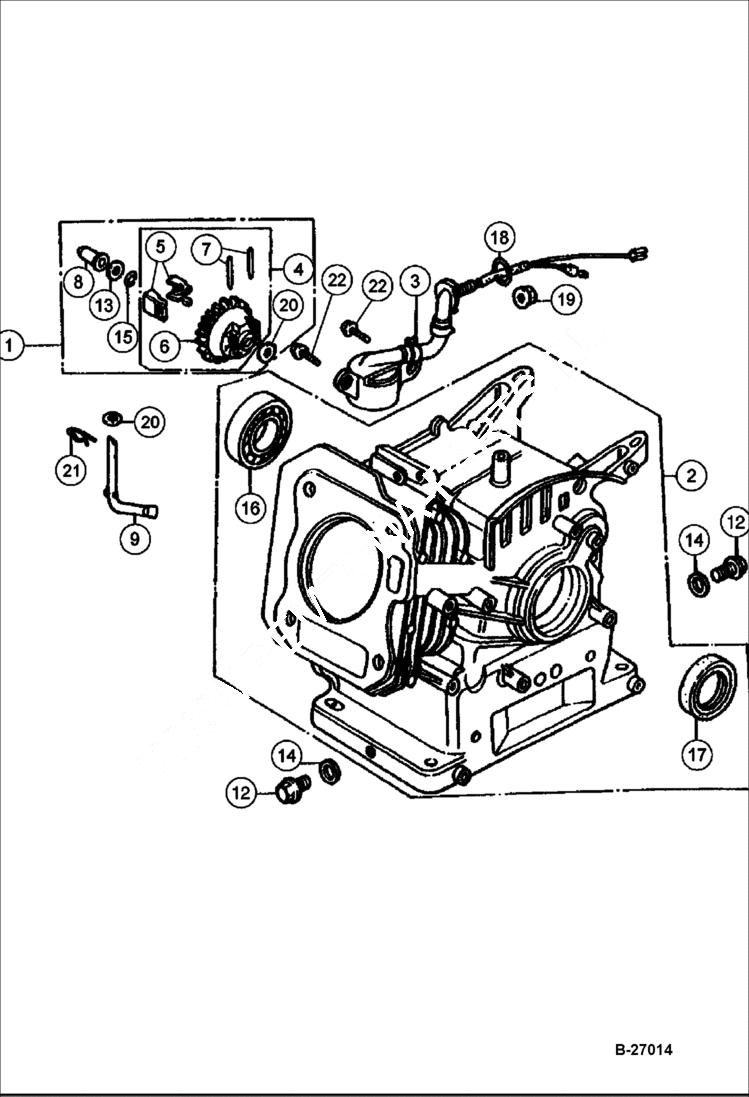

Запчасти Bobcat VIBRATORY PLATE COMPACTOR ENGINE (Governor) BC19, BC22 POWER UNIT

1

IR59243295

GOVERNOR KIT Ref. 4, 8, 13, 15 & 20

2

IR54474143

BARREL ASSY W/Ref. 16 & 17

3

IR54474176

SWITCH ASSY

4

IR59243311

GOVERNOR Ref. 5-7

5

IR59243329

WEIGHT

6

IR59243337

WEIGHT HOLDER

7

IR59243345

WEIGHT PIN

8

IR59243352

SLIDER

9

IR59243360

ARM SHAFT

12

IR59243378

DRAIN PLUG

13

IR59243386

THRUST WASHER

14

IR59243394

CLIP

15

IR59243600

CLIP

16

IR54474184

BEARING

16

IR54474192

BEARING

17

IR54474200

OIL SEAL

18

IR54474226

O-RING

19

IR54474234

FLANGE NUT

20

IR59243634

WASHER

21

IR59243642

LOCK PIN

22

IR54474259

FLANGE BOLT
