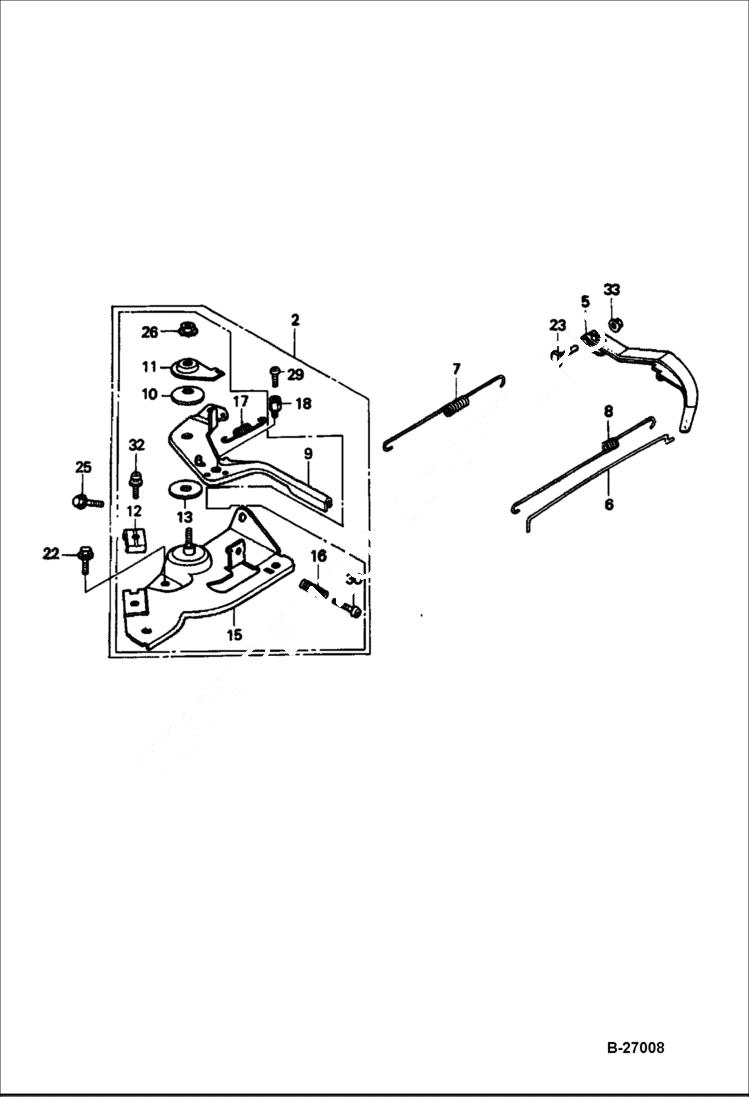

Запчасти Bobcat VIBRATORY PLATE COMPACTOR ENGINE (Control Assy) BC15 POWER UNIT

2

IR13221205

CONTROL ASSY Ref. 9-13, 15-18, 26, 29, 30 & 32

5

IR54474929

ARM

6

IR59244681

GOVERNOR ROD

7

IR59244699

SPRING

8

IR59244707

RETURN SPRING

9

IR13221213

CONTROL LEVER

10

IR59244723

LEVER SPRING

11

IR54474978

LEVER WASHER

12

IR54474986

CABLE HOLDER

13

IR54474994

SPACER

15

IR13221221

CONTROL BASE

16

IR59244731

SPRING

17

IR59244749

RETURN SPRING

18

IR54475025

WIRE HOLDER

22

IR59242990

FLANGE BOLT

23

IR59244772

ARM BOLT

25

IR59244764

FLANGE BOLT

26

IR54475041

LOCKNUT

29

IR54475074

PAN SCREW

30

IR54475058

PAN SCREW

32

IR54475082

SCREW WASHER

32

IR54475090

PAN SCREW

33

IR59244418

FLANGE NUT
