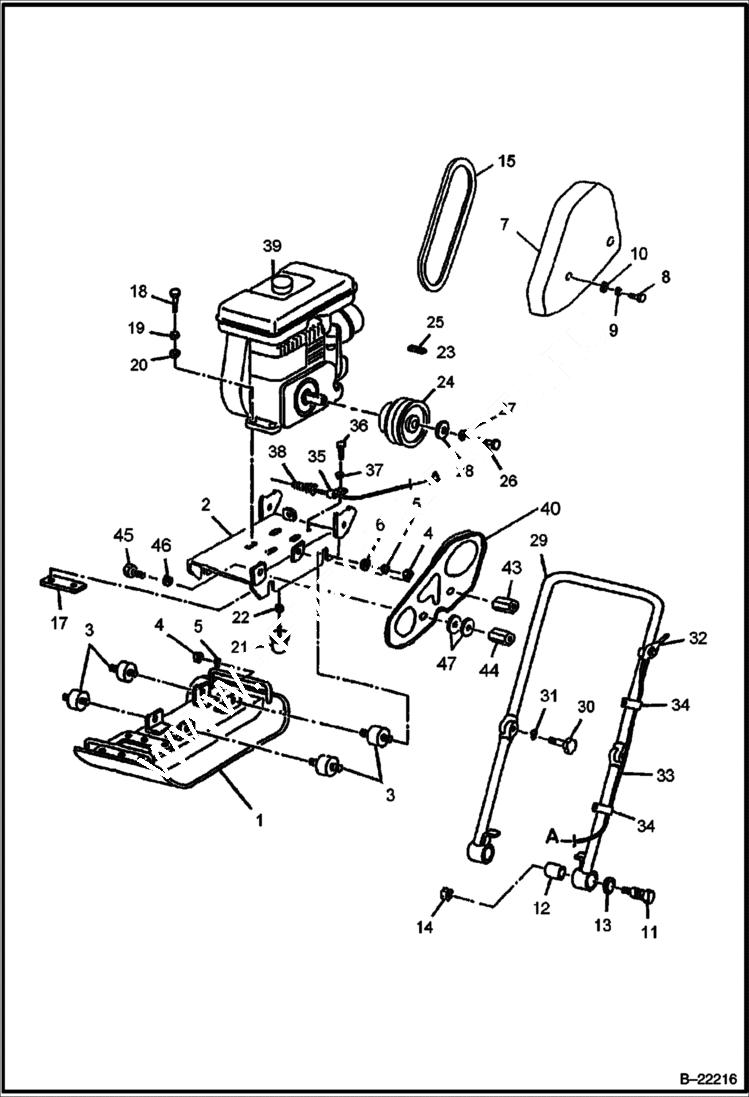

Запчасти Bobcat VIBRATORY PLATE COMPACTOR MAIN FRAME (Vibration, Engine & Controls) MAIN FRAME

1

IR59831289

VIBRATION PLATE

2

IR58837758

ENGINE BED

3

IR59831313

RUBBER BUFFER

4

IR59831750

NUT

5

SPRING WASHER NLA - Was IR59831743 - A

6

IR59952473

WASHER

7

IR58837808

PULLEY COVER

8

IR59952242

BOLT

9

IR59951632

SPRING WASHER Was IR59510065 - A

10

IR59952291

WASHER

11

IR59237297

SUPPORT PIN

12

IR59237305

RUBBER BUFFER

13

IR59830950

WASHER

14

IR59839027

NUT

15

IR59831503

V-BELT

17

IR59830968

ENGINE NUT

18

IR59843722

BOLT

19

IR59831925

SPRING WASHER

20

IR59835371

WASHER

21

IR59830976

STOPPER

22

IR58835943

NUT

23

IR58836214

CLUTCH ASSY

24

IR58836206

SHOE ASSY clutch

25

IR59831032

KEY

26

IR59832535

BOLT

27

IR59831925

SPRING WASHER

28

IR59952655

WASHER

29

IR59188474

HANDLE operating

30

IR59188490

HANDLE BOLT

31

IR59841106

WASHER

32

IR59831511

THROTTLE LEVER

33

IR59839100

THROTTLE CABLE

34

IR59831529

WIRE BAND

35

IR59843631

CLAMP

36

IR59839126

BOLT

37

IR59833350

SPRING WASHER

38

IR59843649

RETURN SPRING

39

IR58836446

ENGINE ASSY See Illustration HONDA ENGINE/ B22221

40

IR58837816

INSIDE COVER CE Only

43

IR58837782

BOSS A - Rear

44

IR58837790

BOSS B - Front

45

IR59832287

BOLT

46

IR59951632

SPRING WASHER Was IR59510065 - A

47

IR59237289

WASHER
