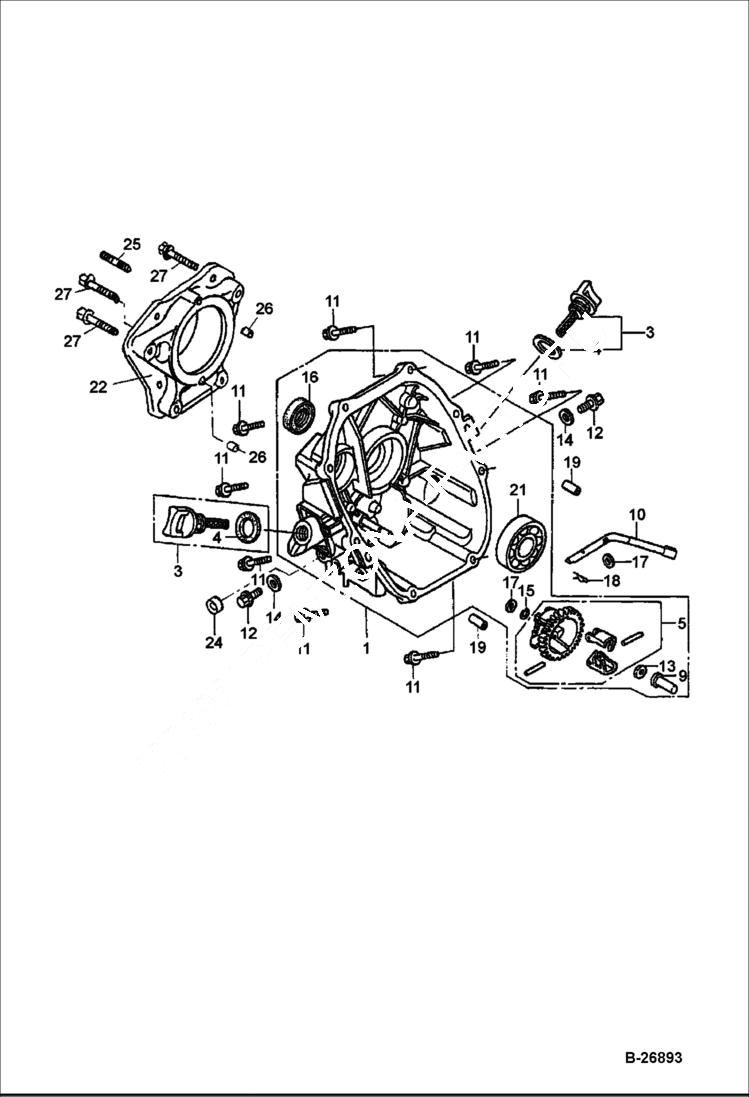

Запчасти Bobcat UPRIGHT RAMMER HONDA ENGINE (Crankcase) POWER UNIT

1

IR22328116

CRANK CASE COVER ASSEMBLY Includes Ref. 15-17 & 21

3

IR22328124

OIL FILLER CAP ASSEMBLY Includes Ref. 4

4

IR59243691

PACKING oil filler cap

5

IR22328132

GOVERNOR ASSEMBLY

9

IR59243352

SLIDER governor

10

IR22328140

GOVERNOR ARM SHAFT

11

IR59244665

FLANGE BOLT

12

IR59243378

DRAIN PLUG bolt

13

IR59243386

THRUST WASHER

14

IR59243394

CLIP drain plug washer

15

IR59243600

CLIP governor holder

16

IR22328066

OIL SEAL

17

IR59243634

WASHER

18

IR59243642

LOCK PIN

19

IR22328157

KNOCK PIN

21

IR22328165

RADIAL BALL BEARING

22

IR22328173

P. T. O. FLANGE

24

IR22328181

OIL SEAL

25

IR13201405

STUD BOLT

26

IR22328199

KNOCK PIN

27

IR22328207

FLANGE BOLT
