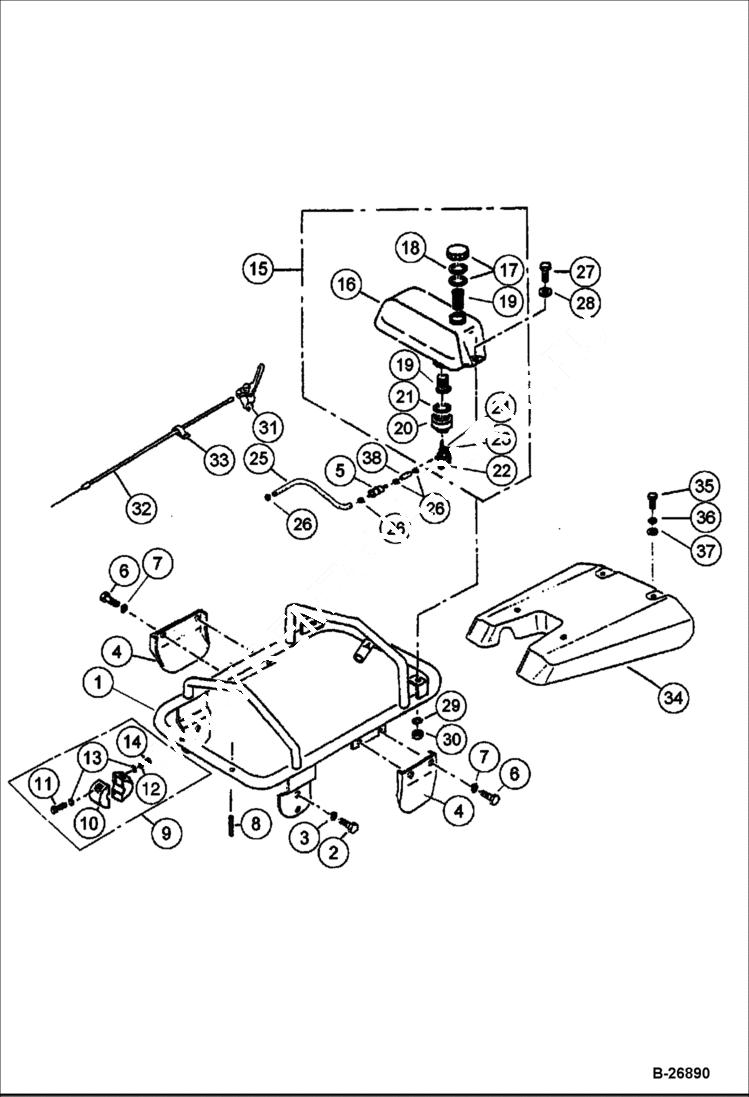

Запчасти Bobcat UPRIGHT RAMMER HANDLE SECTION MAIN FRAME

1

OPERATING HANDLE NLA - Was IR13201439 - A

2

IR59832535

BOLT

3

IR59831925

SPRING WASHER

4

IR13201447

SIDE PROTECTOR

5

IR59188219

STRAINER

6

IR59188144

BOLT

7

IR59831925

SPRING WASHER

8

IR59237412

SPRING PIN

9

IR59237420

GUIDE ROLLER ASSEMBLY Includes Ref. 10-14

10

IR59237438

GUIDE ROLLER

11

IR59406504

BOLT

12

IR59833350

SPRING WASHER

13

IR59832188

WASHER

14

IR59405514

NUT

15

IR54680418

FUEL TANK ASSEMBLY Includes Ref. 16-24

16

IR54680426

FUEL TANK

17

IR54680434

FUEL TANK CAP CP

18

IR54680442

PACKING

19

IR59853358

FUEL FILTER

20

IR59188185

CAP

21

IR59188193

PACKING

22

IR59188201

FUEL STRAINER

23

IR59841684

LOCKNUT

24

IR59841692

O-RING

25

IR59841700

RUBBER PIPE

26

IR59188243

HOSE CLAMP

27

IR59953935

BOLT

28

IR58898230

WASHER

29

IR59831925

SPRING WASHER

30

IR59831917

NYLON NUT

31

IR59830315

THROTTLE LEVER

32

IR54680459

THROTTLE CABLE

33

IR54680467

CLAMP

34

IR54680582

ENGINE COVER

35

IR59832535

BOLT

36

IR59831925

SPRING WASHER

37

IR59835371

WASHER

38

IR13201470

RUBBER PIPE
