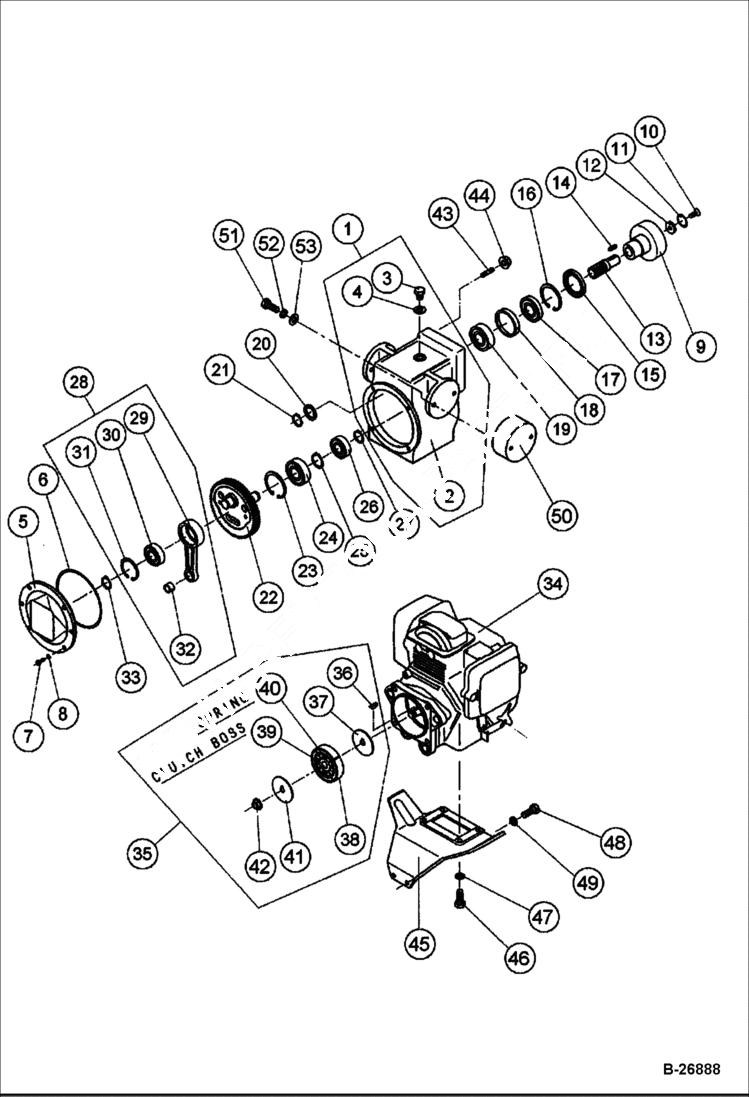

Запчасти Bobcat UPRIGHT RAMMER UPPER SECTION & ENGINE MAIN FRAME

1

IR54680145

CRANKCASE CP Includes Ref. 2-4

2

CRANKCASE NSS

3

IR59831123

PLUG

4

IR59831131

PACKING

5

IR54680152

CRANKCASE COVER

6

IR58836610

O-RING

7

IR59952325

BOLT

8

IR59831925

SPRING WASHER

9

IR54680160

CLUTCH DRUM

10

IR59187864

SCREW

11

IR59187856

O-RING

12

IR59187849

O-RING washer

13

IR54680178

PINION GEAR

14

IR59839852

KEY

15

IR58836636

OIL SEAL

16

IR59839332

SNAP RING

17

IR54680186

BALL BEARING

18

IR58836651

COLLAR

19

IR59239152

BALL BEARING

20

IR58836677

COLLAR

21

IR58836685

SNAP RING

22

IR54680202

CRANK GEAR

23

IR59839332

SNAP RING

24

IR59839274

BALL BEARING

25

IR59839282

SNAP RING

26

IR59839431

BALL BEARING

27

IR59839456

SNAP RING

28

IR58836727

CRANK ROD ASSEMBLY Includes Ref. 29-32

29

CRANK ROD NSS

30

IR59839431

BALL BEARING

31

IR59837948

SNAP RING

32

IR58836735

BUSHING

33

IR59839456

SNAP RING

34

IR13201397

HONDA ENGINE See Illustration HONDA ENGINE/ B26892

35

IR54680228

CLUTCH ASSEMBLY Includes Ref. 36-42

36

IR54680236

WOODRUFF KEY

37

IR59187963

GUIDE PLATE A

38

IR59187922

CLUTCH ASSY clutch - Was IR59187930 - A

39

IR59187948

CLUTCH BOSS

40

IR59187955

CLUTCH SPRING

41

IR59187971

GUIDE PLATE B

42

IR54680244

FLANGE NUT

43

IR13201405

STUD BOLT

44

IR13201413

FLANGE NUT

45

IR13201421

ENGINE SUPPORT

46

IR59952382

BOLT

47

IR59831925

SPRING WASHER

48

IR59952325

BOLT

49

IR59831925

SPRING WASHER

50

IR59239376

RUBBER BUFFER

51

IR59952325

BOLT

52

IR59831925

SPRING WASHER

53

IR59835371

WASHER
