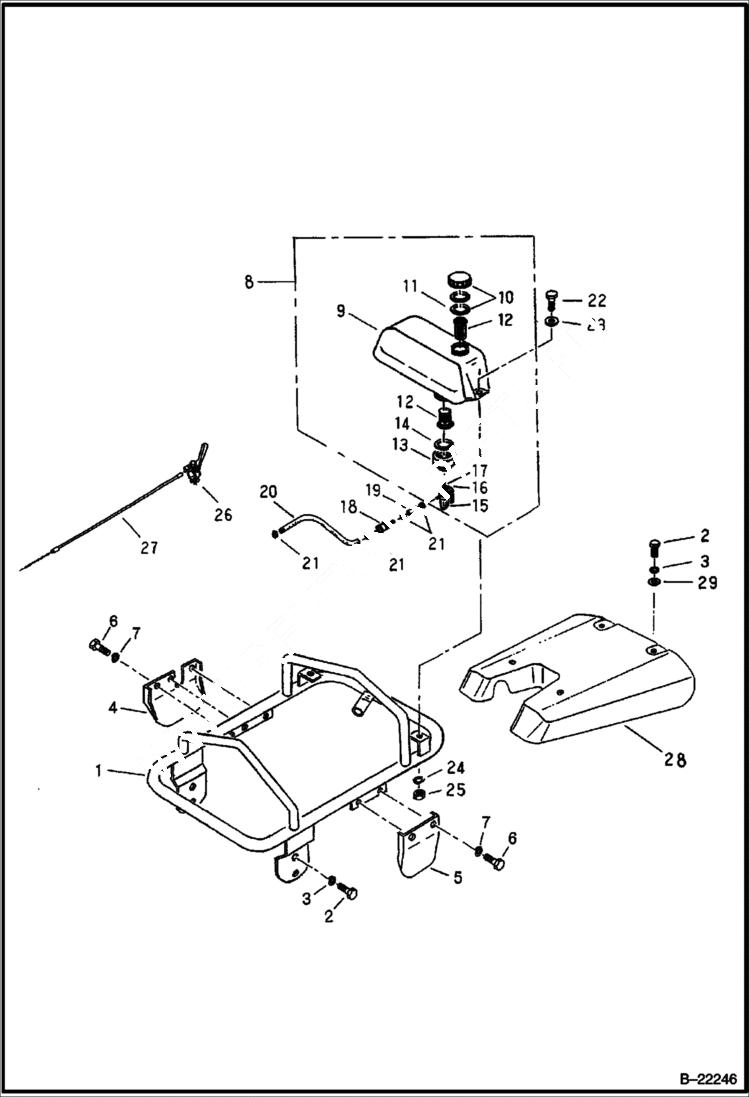

Запчасти Bobcat UPRIGHT RAMMER MAIN FRAME (Handle Section) MAIN FRAME

1

IR54680657

HANDLE operating

2

IR59832535

BOLT

3

IR59831925

SPRING WASHER

4

IR59188128

PROTECTOR muffler

5

IR59188136

PROTECTOR air cleaner

6

IR59188144

BOLT

7

IR59831925

SPRING WASHER

8

IR54624606

FUEL TANK W/Ref. 9-17

9

IR54680426

FUEL TANK

10

IR13202122

CAP Was IR54680434 - A

11

IR54680442

PACKING

12

IR59853358

FUEL FILTER

13

IR59188185

CAP

14

IR59188193

PACKING

15

IR59188201

FUEL STRAINER

16

IR59841684

LOCKNUT

17

IR59841692

O-RING

18

IR59188219

STRAINER

19

IR59188227

RUBBER PIPE

20

IR59188235

RUBBER PIPE

21

IR59188243

HOSE CLAMP

22

IR59953935

BOLT

23

IR58898230

WASHER

24

IR59831925

SPRING WASHER

25

IR59831917

NYLON NUT

26

IR59830315

THROTTLE LEVER

27

IR59840058

THROTTLE CABLE

28

IR54680582

ENGINE COVER

29

IR59835371

WASHER
