Запчасти Bobcat UPRIGHT RAMMER HONDA ENGINE (Carburetor) POWER UNIT

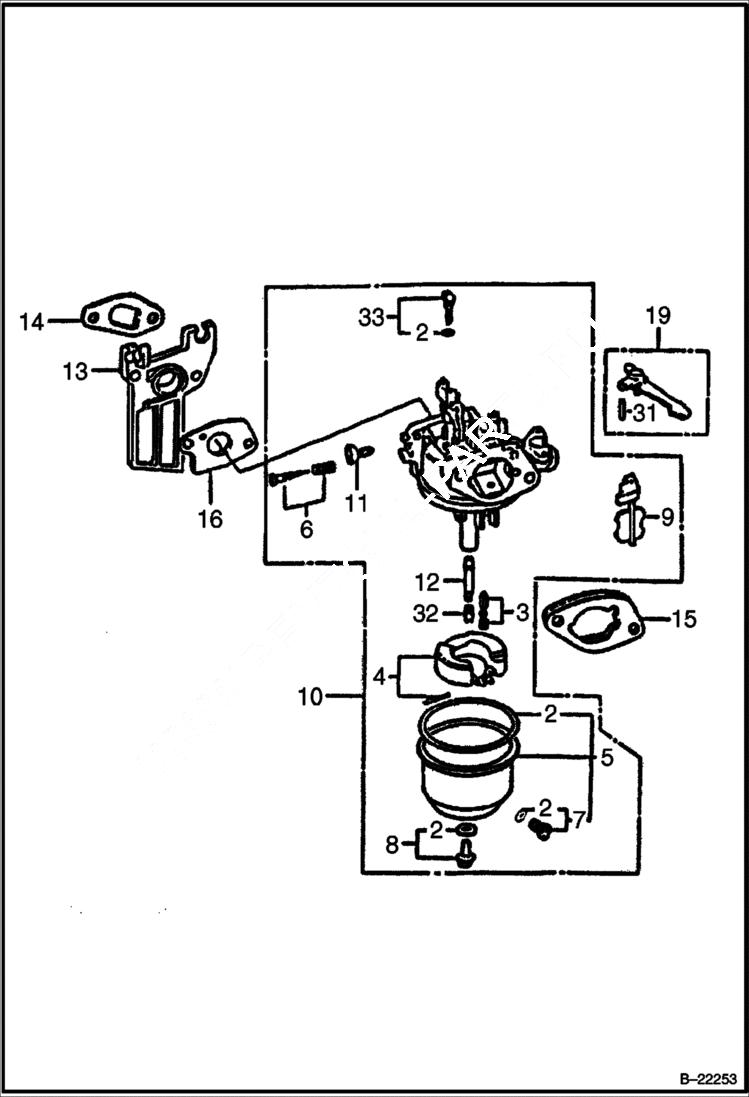

Схема запчастей Bobcat UPRIGHT RAMMER - HONDA ENGINE (Carburetor) POWER UNIT

Артикул

Название

Примечание

Количество

2

IR59244178

GASKET SET

3

IR59244186

FLOAT VALVE SET

4

IR59244194

FLOAT SET

5

IR59244202

CHAMBER SET float - W/Ref. 7

6

IR59244210

SCREW SET pilot

7

IR59244228

SCREW SET drain - Includes gasket

8

IR59244236

SCREW SET Includes gasket

9

IR59244244

CHOKE SET

10

IR59244251

CARBURETOR W/Ref. 3-9, 11-12, 32 & 33

11

STOP SCREW

12

MAIN NOZZLE

13

IR59244269

INSULATOR

14

IR59244277

PACKING

15

IR36137750

SPACER Was IR59247285 - A

16

IR59244293

PACKING

19

IR59244301

CHOKE LEVER complete - W/Ref. 31

31

SPRING PIN

32

IR59244319

MAIN JET Standard - Includes gasket

33

IR59244327

PILOT JET SET

Выбрано товаров: 19
