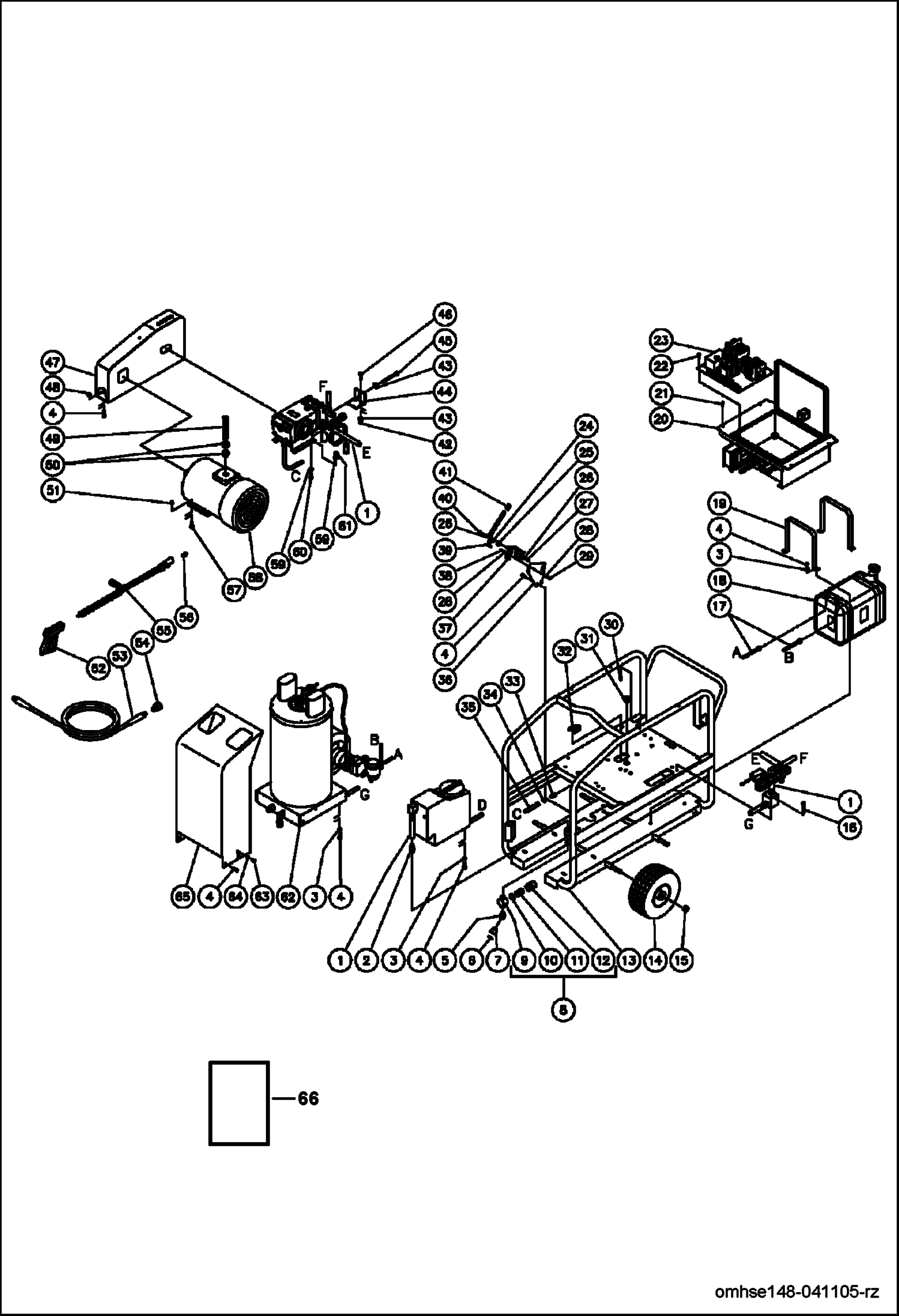

Запчасти Bobcat PRESSURE WASHER FRAME ASSEMBLY FRAME

1

Float Tank/Pump/Unloader Assy. (See Exploded Drawing) - NLA -

2

MM23-0005

BARB 1/2MP X 1/2 LOCK - BRASS

3

MM28-0022

WASHER-ZI STANDARD 5/16

4

MM27-9524

HHCS - GD8.8 M8-1.25P X 20MM

5

MM23-0344

ELBOW 45 DEG

6

MM26-0001

GARDEN HOSE GASKET

7

MM23-0095

SWIV 1/2MX3/4F GARDEN HOSE -BR

8

MM19-0003

Water Filter Assembly (Includes 9-12) Ref. 9-12

9

MM19-0021

Strainer Body

10

GASKET W/STRAINER BOWL NLA - Order Ref. 8

11

MM19-0023

Stainless Steel Screen

12

MM19-0022

Strainer Bowl

13

MM5-0138A01

FRAME ASSY - PAINTED

14

MM14-0072

WHEEL PNEUMATIC

15

MM30-0117

HEX JAM NUT-ZI 5/8-11 X 3/8

16

MM27-8040

HHCS GR 8.8 M8-1.25 X 70MM

17

MM15-0190

FUEL HOSE

18

MM850-0290

Fuel Tank Assembly (Includes 1-9)

19

MM20-0579A01

STRAP/FUEL TANK-PAINTED

20

Electric Panel Assembly (See Exploded Drawing) - NLA -

21

MM27-8922

Screw

22

MM27-9527

HWHCS - ZINC M6-1.00P X 20MM

23

Control Panel Assembly (See Exploded Drawing) - NLA -

24

MM28-0057

WASHER-ZI 11/32 X 1-1/4 X 18GA

25

MM33-0366

GROMMET/RUBBER 10D X 5/161D

26

MM28-0003

WASHER-ZI SAE TYPE A 5/16

27

MM30-0157

HEX NYLON LOCKNUT-ZINC 5/16-18

28

MM28-0002

WASHER-ZI SAE TYPE A 1/4

29

MM27-0015

HHCS-ZI GR5 1/4-20 X 3/4

30

MM24-0034

PLUG 3/8''NPT SQ HEAD - ZINC

31

MM32-0465

BUSHING/CORD

32

MM33-0020

EDGING 1''

33

MM23-0073

BARB 3/8MP X 3/8 HOSE - BRASS

34

MM42-0004

CLAMP WORM SS 1/4-5/8

35

MM15-0020

HOSE 3/8'' FUEL LINE

36

MM20-0581A01

PLATE/BRAKE-PAINTED

37

MM20-0546A01

BRACKET - PAINTED

38

MM30-0155

HEX NYLON LOCKNUT-ZINC 1/4-20

39

MM20-0552A01

BRAKE HANDLE ASSY - PAINTED

40

MM27-0068

HHCS-ZI GR5 5/16-18 X 1-1/4

41

MM7-0170

GRIP - HANDLE

42

MM30-0159

HEX NYLON LOCKNUT-ZINC 3/8-16

43

MM28-0023

WASHER-ZI STANDARD 3/8

44

MM13-0003A01

BRACKET-ANGLE TIGHTENER BLACK

45

MM27-0576

HHCS-ZI GR5 3/8-16 X 3

46

MM27-0118

HHSC-ZI GR5 3/8-16 X 1-1/4

47

Beltguard/ Sheave Assembly (See Exploded Drawing) - NLA -

48

MM30-3023

SERR.FLANGE NUT - M8-1.25P

49

CONDUIT NLA - 12'' (304,8 mm) long - Order Ref. 66

50

MM32-0488

CONDUIT STRAIGHT END 3/4''

51

MM30-3030

SERR.FLANGE NUT - M10-1.50P

52

MM16-0001

TRIGGER GUN 4000 PSI

53

MM15-0166

3/8'' X 50' HOSE 4500 PSI

54

MM17-0035

SCREW CONNECT M22 X 3/8FNPT

55

MM16-0416

DUAL LANCE - 36.00''

56

MM18-0054

NOZZLE 1504 1/4 MEG

57

MM27-8923

HHCS SERR.FLANGE-M10-1.5PX25MM

58

MM2-0092

MOTOR 8 HP 208-230V 1 PHASE

59

MM28-0030

WASHER-ZI 15/32 X 3/4 X 1/16

60

MM27-0166

HHCS-ZI GR5 7/16-14 X 1

61

MM30-0161

HEX NYLON LOCKNUT-ZINC 7/16-14

62

Heat Exchanger Assembly (See Exploded Drawing) - NLA -

63

MM62-0057

SCREW COVER

64

MM28-0001

WASHER-ZI SAE TYPE A 3/16

65

MM850-0244

HOOD ASSY

66

MM32-0486

CONDUIT 3/4'' BLACK bulk - sold per foot
