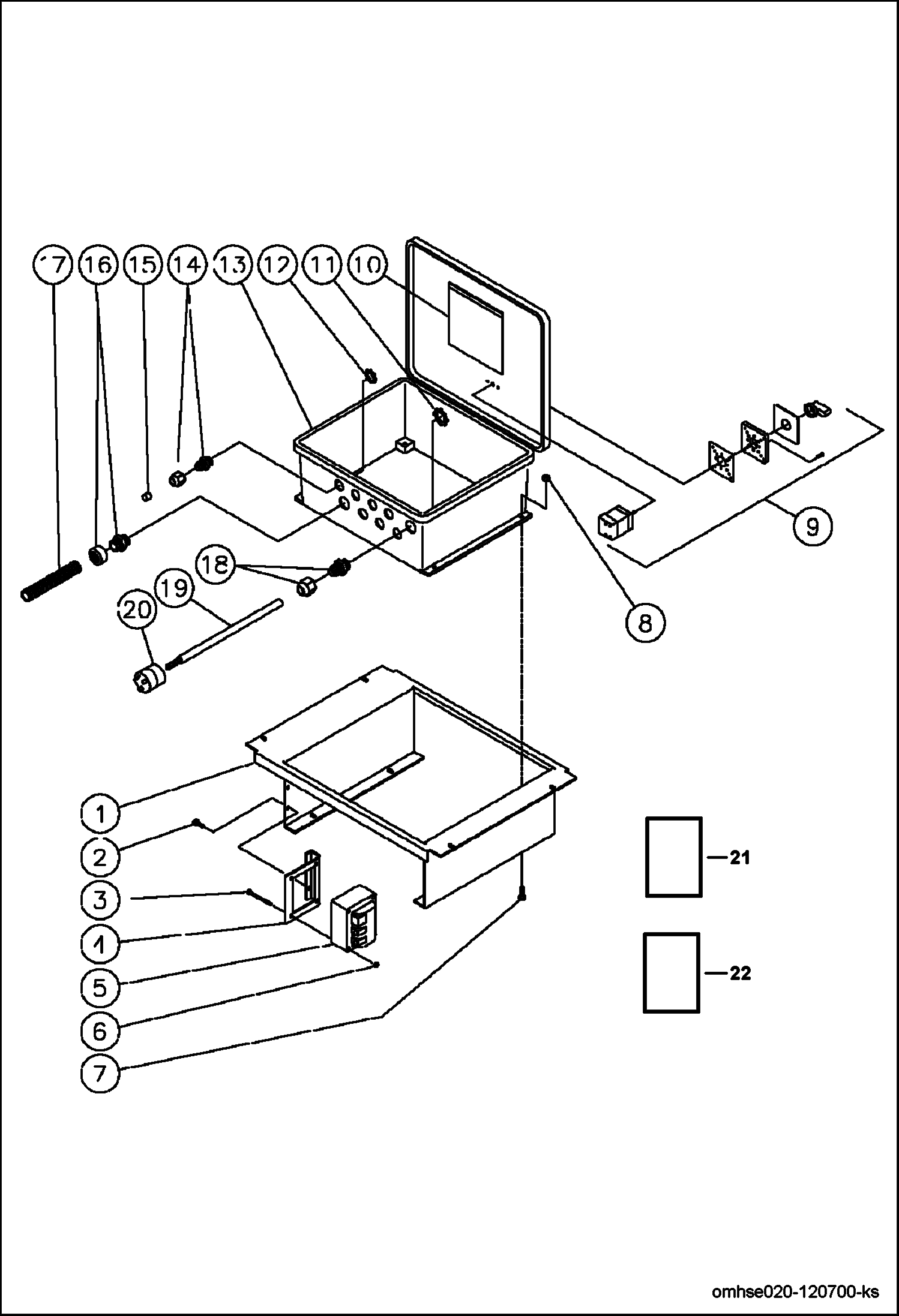

Запчасти Bobcat PRESSURE WASHER CONTROL PANEL EQUIPMENT

1

MM20-0432A01

CONTROL PANEL - PAINTED

2

MM27-9526

HHCS - GR8.8 M5-0.8P X 16MM

3

MM27-8899

SHCS - GR12.9 M4-0.7P X 50MM

4

MM20-0418A01

BRACKET/IGNITER PAINTED

5

MM85-00223

IGNITER 240V

6

MM30-0137

NUT - ZINC M4-0.7

7

MM27-8898

SERR.FLANGE HHCS-M6-1.00PX25MM

8

MM30-3022

SERR.FLANGE NUT - M6-1.00P

9

MM32-0464

SWITCH ON/PUMP/BURNER/STEAM

11

MM32-0292

LOCKNUT ELECT 3/4''-DIECAST

12

MM32-0108

LOCKNUT 1/2'' ELECTRICAL

13

MM32-0462

ELECTRIC BOX

14

MM32-0437

STRAIN RELEIF

15

MM32-0514

PLUG - STRAIN RELIEF RUBBER

16

MM32-0488

CONDUIT STRAIGHT END 3/4''

17

CONDUIT NLA - 12'' (304,8 mm) long - Order Ref. 21

18

MM9-0046

BUSHING 3/4 NPT .750 CORD

19

POWER CORD NLA - 48'' (1219,2 mm) long - Order Ref. 22

20

MM32-0012

PLUG 50 AMP 250 VOLT #42

21

MM32-0486

CONDUIT 3/4'' BLACK bulk - sold per foot

22

MM32-0021

CORD 8/3 SO - PER FT bulk - sold per foot
