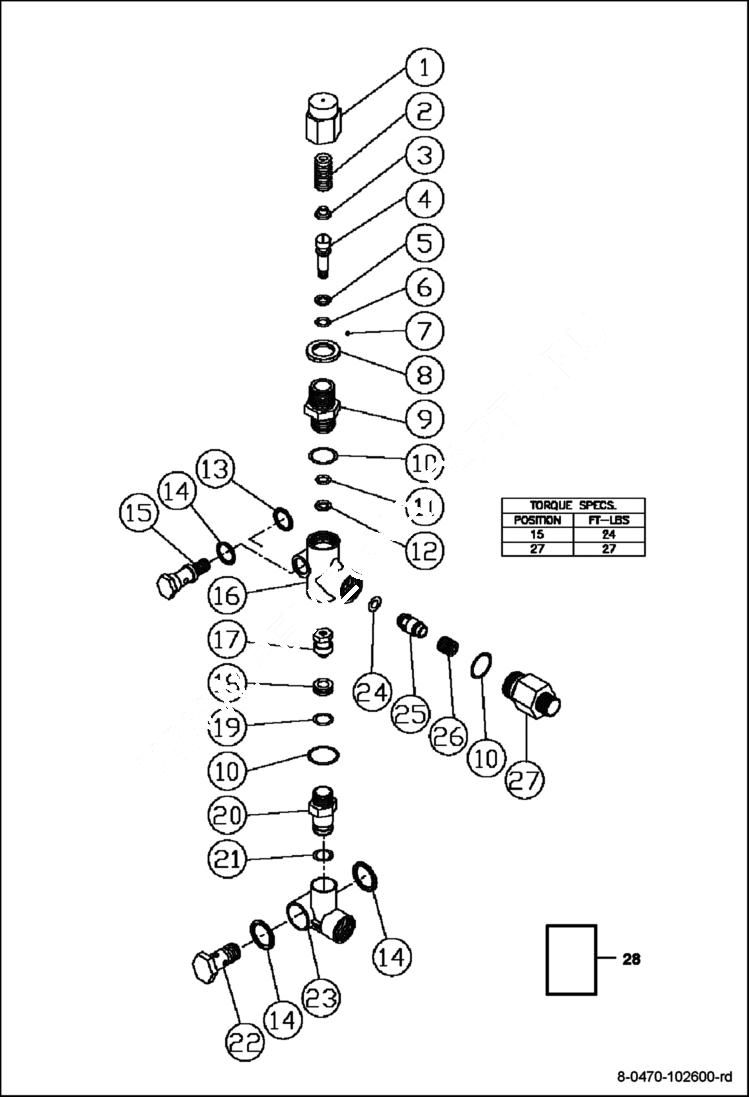

Запчасти Bobcat PRESSURE WASHER UNLOADER EQUIPMENT

1

MM39-0092

ADJUSTING CAP

2

MM49-0120

SPRING

3

MM8-0421

SPRING RETAINER

4

MM46-0324

PISTON STEM

5

MM25-0206

BACK-UP RING

6

O-RING NLA - Order Ref. 28

7

MM8-0479

SET SCREW

8

MM46-0651

LOCKNUT

9

MM8-0424

PISTON RETAINER

10

O-RING NLA - Order Ref. 28

11

O-RING NLA - Order Ref. 28

12

MM25-0203

BACK-UP RING

13

MM8-0433

WASHER

14

MM8-0427

WASHER

15

MM23-0286

BANJO BOLT 1/4 BSP

16

BODY NLA - Order Ref. 28

17

MM46-0320

VALVE AND BALL ASSEMBLY

18

MM8-0430

BYPASS SEAT

19

MM25-0202

O-RING

20

BYPASS FITTING NLA - Order Ref. 28

21

MM25-0376

O-RING 2.4 X 10.3

22

MM23-0285

BANJO CONNECTOR

23

BYPASS BANJO FITTING NLA - Order Ref. 42 or Ref. 45

24

MM25-0375

O-RING 2.54 X 4

25

MM8-0426

FLOW BALANCER

26

MM49-0121

SPRING

27

MM39-0091

OUTLET FITTING

28

MM8-0470

UNLOADER Ref. 1-27
