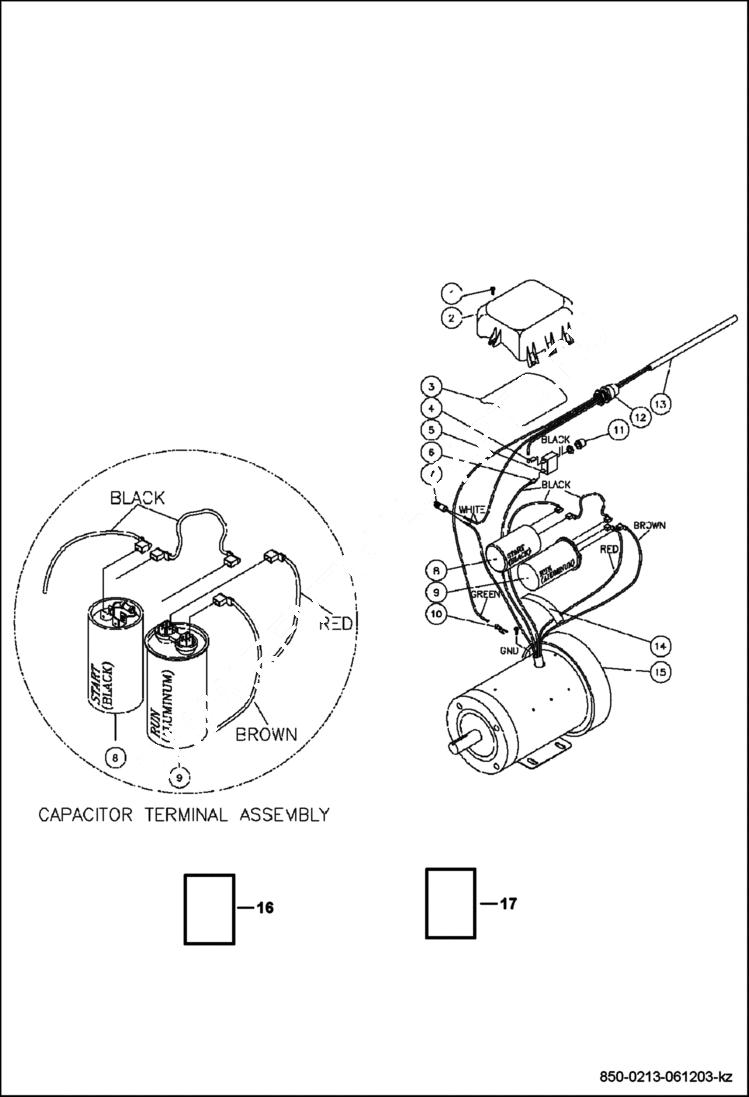

Запчасти Bobcat PRESSURE WASHER MOTOR ASSEMBLY PUMP

1

MM27-8389

HWHS-TYPE F-ZINC #10-32 X 1/2

2

MM52-0041

MOTOR BOX

3

MM25-0338

O-RING

4

MM32-0451

TERMINAL FLAG FEMALE

5

MM32-0439

CIRCUIT BREAKER 25 amp

6

MM32-0221

TERMINAL 14 GA QC F.1/4 FULLIN

7

MM32-0359

CRIMPED WIRE SPLICE 18-12

8

MM32-0412

CAPACITOR - START 2.0 W/MOTOR

9

MM32-0413

CAPACITOR - RUN 2.0 HP W/MOTOR

10

MM32-0034

TERMINAL 10GA #10 FORK

11

MM32-0441

BOOT, CIRCUIT BREAKER

12

MM32-0437

STRAIN RELEIF

13

CORD NLA - 24'' (609,6 mm) long - Order Ref.17

14

MM52-0042

STRAP MOTOR BOX

15

MOTOR NLA - Order Ref. 16

16

MM850-0215

MOTOR ASSEMBLY

17

MM32-0440

CORD 12/3 bulk - sold per foot
