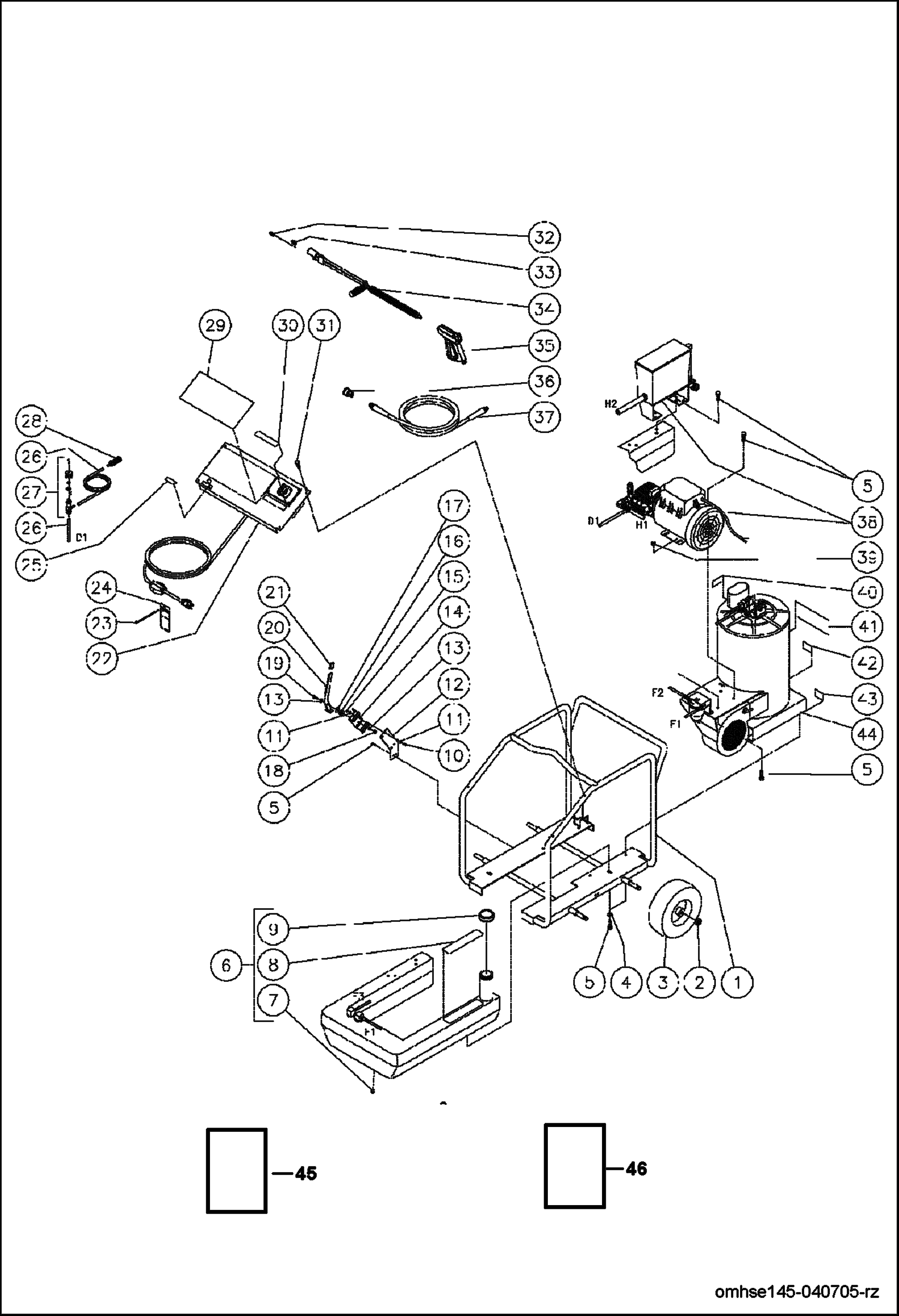

Запчасти Bobcat PRESSURE WASHER FRAME ASSEMBLY FRAME

1

MM5-0128A01

FRAME ASSEMBLY PAINTED BLACK

2

MM30-0117

HEX JAM NUT-ZI 5/8-11 X 3/8

3

MM14-0017

WHEEL PHEU 4.10/3.50-4 5/8BORE

4

MM28-0022

WASHER-ZI STANDARD 5/16

5

MM27-9524

HHCS - GD8.8 M8-1.25P X 20MM

6

MM850-0214

FUEL TANK ASSEMBLY

7

MM23-0296

PLUG

8

DETERGENT HOSE NLA - Do Not Use Gasoline (E/S) - Order Ref. 46

9

MM12-0033

CAP FUEL VENTED 2-1/4'' BUTTRES

10

MM27-0015

HHCS-ZI GR5 1/4-20 X 3/4

11

MM28-0002

WASHER-ZI SAE TYPE A 1/4

12

MM20-0580A01

PLATE/BRAKE-PAINTED

13

MM28-0003

WASHER-ZI SAE TYPE A 5/16

14

MM20-0546A01

BRACKET - PAINTED

15

MM30-0155

HEX NYLON LOCKNUT-ZINC 1/4-20

16

MM33-0366

GROMMET/RUBBER 10D X 5/161D

17

MM28-0057

WASHER-ZI 11/32 X 1-1/4 X 18GA

18

MM30-0157

HEX NYLON LOCKNUT-ZINC 5/16-18

19

MM27-0068

HHCS-ZI GR5 5/16-18 X 1-1/4

20

MM20-0552A01

BRAKE HANDLE ASSY - PAINTED

21

MM7-0170

GRIP - HANDLE

22

Control Panel (See Exploded Drawing) - NLA -

23

MM33-0022

CABLE TIE- 7-1/2 BLACK

24

MM34-0417

DECAL - HANG TAG

25

DECAL NLA - Detergent Valve - Order Ref. 46

26

HOSE NLA - 72'' (1828,8 mm) long - Order Ref. 45

27

MM22-0226

VALVE/DETERGENT

28

MM19-0056

STRAINER-DETERGENT W/CK VALVE

29

DECAL NLA - Warning/Caution/Operation - Order Ref. 46

30

MM34-0825

WHITE DIE CUT 1502 (1-1/8'')

31

MM27-9527

HWHCS - ZINC M6-1.00P X 20MM

32

MM18-0110

NOZZLE, 4060 1/4

33

MM18-0053

NOZZLE 1503 1/4 MEG

34

MM16-0416

DUAL LANCE - 36.00''

35

MM16-0001

TRIGGER GUN 4000 PSI

36

MM17-0035

SCREW CONNECT M22 X 3/8FNPT

37

MM15-0146

3/8 X 50' HOSE 3000PSI

38

Motor/Pump/Float Tank Assembly (See Exploded Drawing) - NLA -

39

MM30-3023

SERR.FLANGE NUT - M8-1.25P

40

DECAL NLA - Warning: Hot Surfaces (E/S) - Order Ref. 46

41

MM34-1398

DECAL-BOBCAT LOGO

42

DECAL NLA - Risk of Explosion (E/S) - Order Ref. 46

43

MM34-1138

DECAL-BLANK HW DATA PLATE

44

Heat Exchanger Assembly (See Exploded Drawing) - NLA -

45

MM15-0021

HOSE 1/4 ID CLEAR CHEMI bulk - sold per foot

46

MM34-9012

DECAL SET - HSE Ref. 8, 25, 29, 40 7 42
