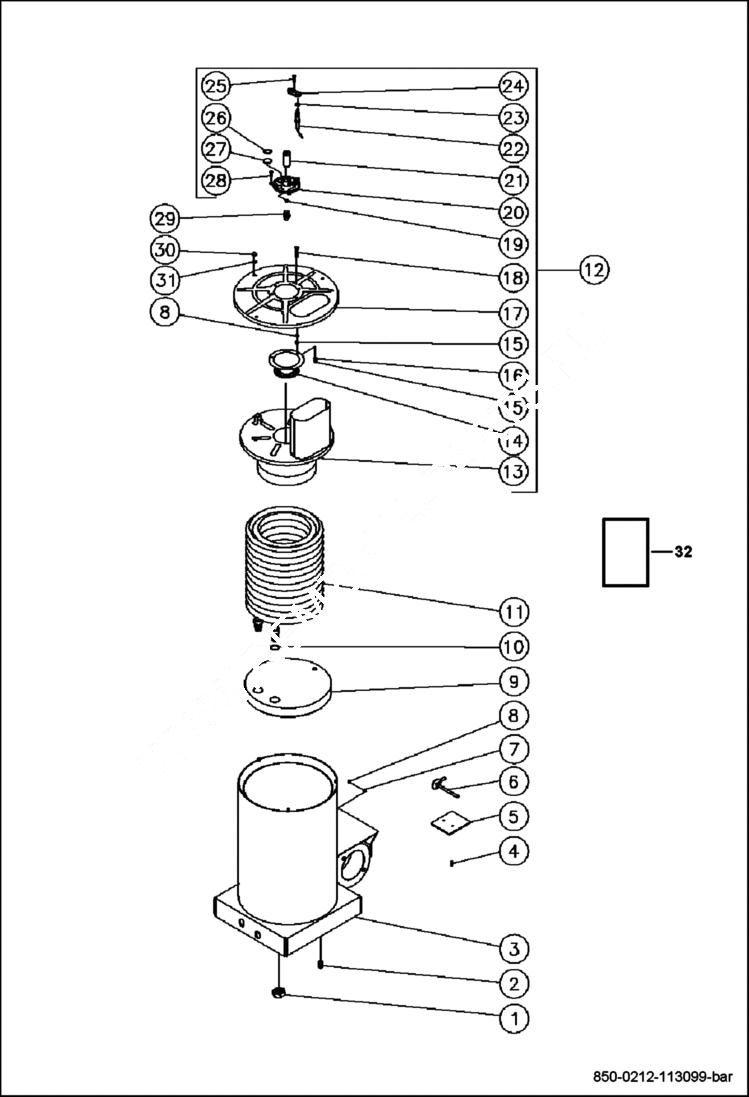

Запчасти Bobcat PRESSURE WASHER BOILER ASSEMBLY EQUIPMENT

1

MM30-0121

HEX JAM NUT - ZINC M22 X 1.5MM

2

MM24-0034

PLUG 3/8''NPT SQ HEAD - ZINC

3

MM20-0404A01

OUTERWRAP ASSEMBLY/PAINTED

4

MM27-8879

HHCS - ZI GR8.8 M4-0.7P X 10MM

5

MM20-0378A01

AIR DIVERTER PLATE - BLACK

6

MM20-0377A01

AIR DIVERTER STEM ASSY/BLACK

7

MM28-1009

EXTERNAL TOOTH LOCKWASHER

8

MM30-6001

HEX NUT - ZINC M5-0.8P

9

MM33-0267

INSULATION - BOTTOM W/LIP

10

MM28-0521

WASHER-COPPER .89X1.09 X 16GA

11

MM66-0009

COIL ASSEMBLY/2 TO 3 GPM

12

MM70-0184

KIT - PAN ASSEMBLIES Ref. 13-28

13

MM20-0324

EXHAUST PAN

14

MM20-0325

HEAT DEFLECTOR

15

MM30-6001

HEX NUT - ZINC M5-0.8P

16

MM28-1009

EXTERNAL TOOTH LOCKWASHER

17

MM20-0323

TOP PAN

18

MM27-8806

BOLT

19

MM27-8805

BOLT

20

MM33-0183

SUPPORT PLATE

21

MM33-0182

NOZZLE HOLDER

22

MM32-0377

ELECTRODE

23

MM28-1007

WASHER

24

MM33-0180

ELECTRODE MOUNTING PLATE

25

MM27-8807

HHCS - ZINC M5-0.8P X 25MM

26

MM25-0290

SNAP RING

27

MM33-0179

SIGHT GLASS

28

MM27-8803

BOLT

28

MM27-8803

BOLT

29

MM18-0268

NOZZLE-FUEL 1.10 60DEG B CSA

30

MM30-6002

ACORN NUT - M6-1.00P

31

MM28-1028

WASHER-ZI M6 EXT. LOCK. STAR

32

MM850-0212

HEAT EXCHANGER ASSEMBLY Ref. 1-28, 30 & 31
