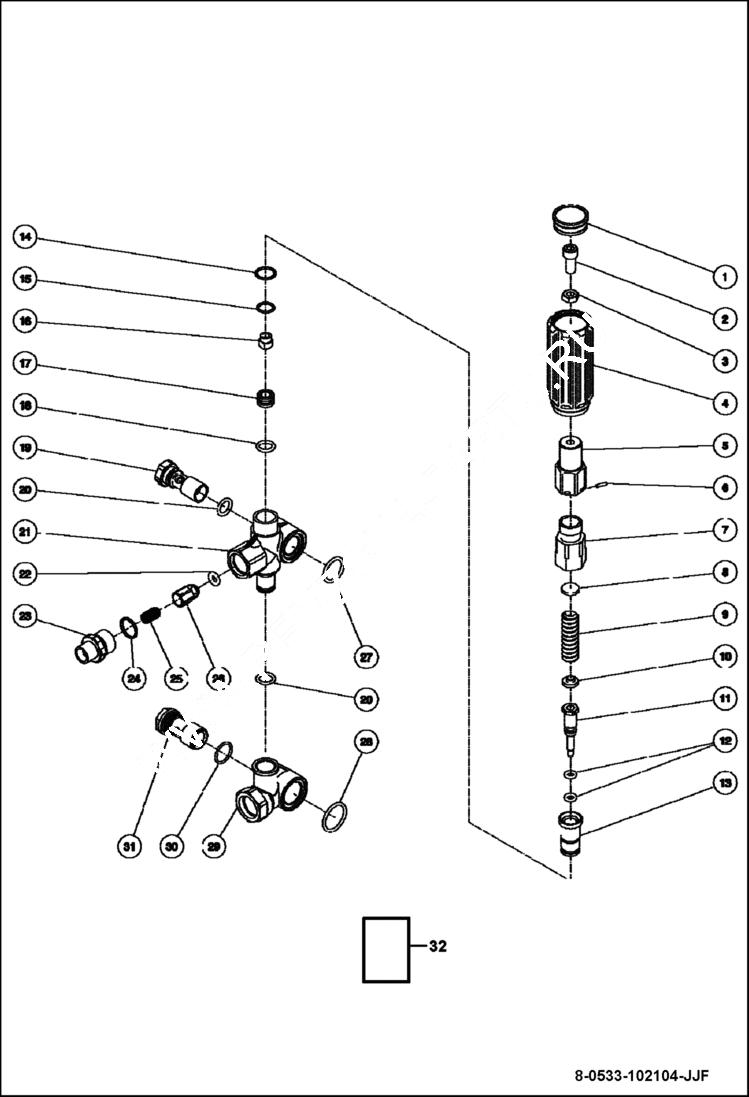

Запчасти Bobcat PRESSURE WASHER UNLOADER ASSEMBLY EQUIPMENT

1

MM7-0142

CAP - UNLOADER - BLACK

2

MM27-8433

HSHCS-ZI GR8.8 M8-1.25P X 25MM

3

MM30-3025

HEX NUT-ZI GR8 M8-1.25P X 5MM

4

MM7-0141

KNOB-UNLOADER - BLACK

5

MM8-0476

UNLOADER - ADJUSTMENT BARREL

6

MM8-0478

Unloader Pin

7

MM8-0523

Spring Guide

8

MM8-0524

Upper Plate

9

MM49-0132

SPRING - UNLOADER

10

MM8-0525

Lower Plate

11

MM8-0526

Piston

12

MM25-0526

O-RING 6.02X2.62MM

13

MM8-0527

Piston Guide

14

MM25-0510

O-RING I.D. 14X1.75MM

15

MM25-0407

O-RING 12.42 X 1.78MM

16

MM8-0528

Bypass Jet

17

MM8-0529

Seat

18

MM25-0527

O-ring

19

MM8-0531

Bolt

20

MM25-0388

O-RING 11.91 X 2.62

21

MM8-0530

Unloader Body

22

MM25-0437

O-RING 5.94 X 3.53

23

MM25-0519

O-RING - 23.47X2.62MM

24

MM25-0372

O-RING 17.5 X 2MM

25

MM49-0123

SPRING - UNLOADER CHECK VALVE

26

MM8-0454

UNLOADER-CHECK VALVE

27

MM25-0528

O-ring

28

MM25-0519

O-RING - 23.47X2.62MM

29

MM8-0532

Bypass Housing

30

MM25-0389

O-RING 17.17 X 1.78MM

31

MM8-0517

BANJO BOLT - 1/2-14BSP

32

MM70-0341

KIT - UNLOADER REPAIR Ref. 12, 14, 15, 18, 20, 22, 24, 27, 28 & 30
