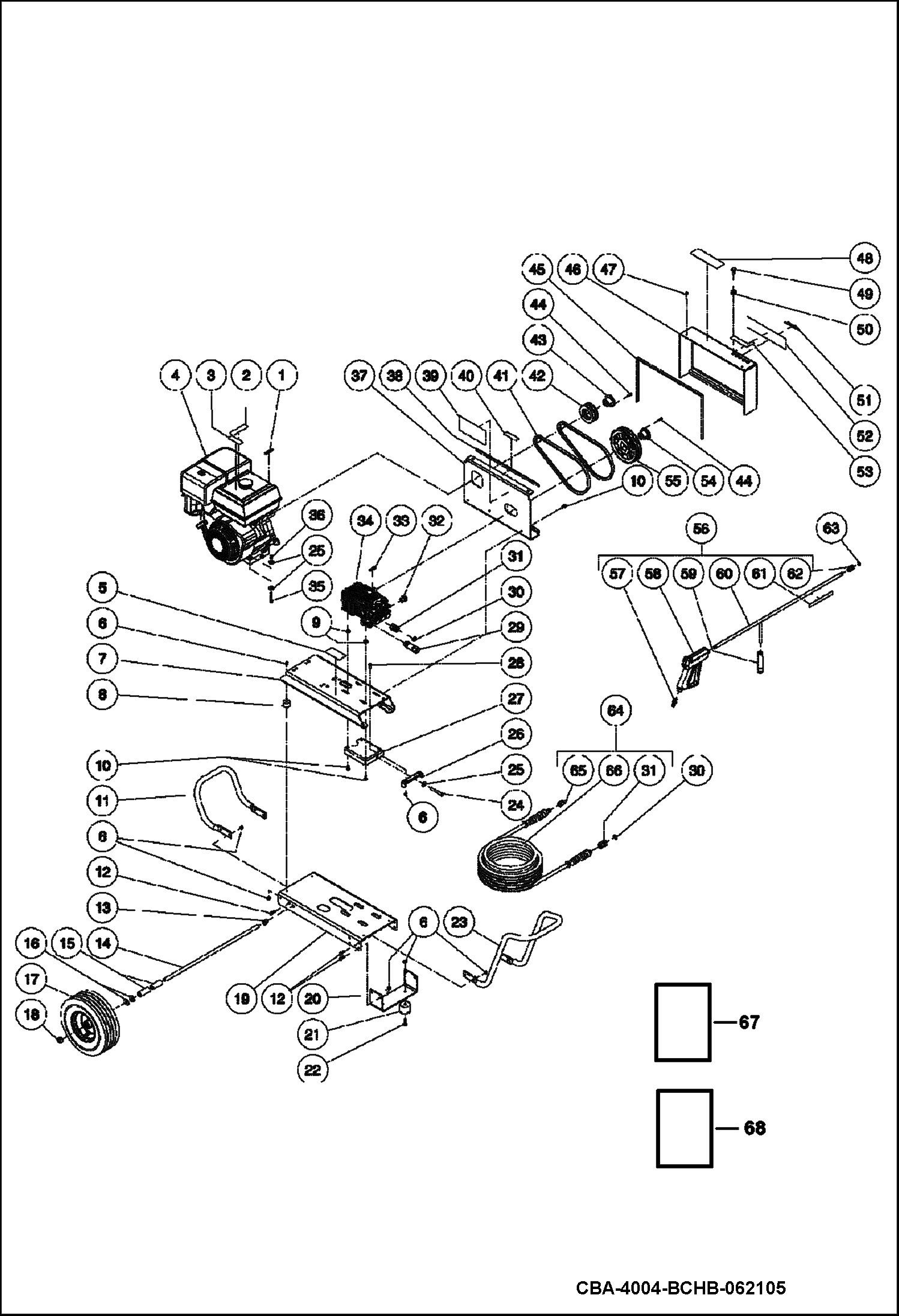

Запчасти Bobcat PRESSURE WASHER FRAME ASSEMBLY FRAME

1

MM43-0078

KEY - 1/4''SQ X 2-1/8''

2

DECAL NLA - Warning: Risk of Burns - Order Ref. 68

3

DECAL NLA - Caution: Risk of Fire - Order Ref. 68

4

MM1-0086

ENGINE HONDA 13HP RECOIL

5

Decal-Data Plate - NLA -

6

MM30-0157

HEX NYLON LOCKNUT-ZINC 5/16-18

7

MM5-0223

ISOLATION PLATE-BELTDRIVE ALUM

8

MM14-0097

VIB/ISO 1-1/4'' DIA X 1'' HEIGHT

9

MM28-0022

WASHER-ZI STANDARD 5/16

10

MM27-9524

HHCS - GD8.8 M8-1.25P X 20MM

11

MM7-0183

HANDLE REAR-9.80X1'' ALUMINUM

12

MM27-0067

HHCS-ZI GR5 5/16-18 X 1

13

MM62-0175

FLANGED SLEEVE BUSHING .625 10

14

MM20-0819

AXLE-5/8'' X 26 1/2''

15

MM62-0189

AXLE SPACER 2-1/2'' FOR 5/8'' AX

16

MM28-0008

WASHER-ZI SAE TYPE A 5/8

17

MM14-0006

WHEEL PNEU 13X5 5/8 BORE

18

MM33-0351

LOCK COLLAR/SHAFT 5/8 ID STEEL

19

MM5-0222

BASEPLATE-BELTDRIVE ALUMINUM

20

MM56-0054

UNDERBRACKET - DD ALUMINUM

21

MM14-0008

ISOLATOR 2'' OD X 1.75

22

MM27-0068

HHCS-ZI GR5 5/16-18 X 1-1/4

23

MM7-018201

HANDLE FRONT-9.80X1'' ALUMINUM

24

MM27-0576

HHCS-ZI GR5 3/8-16 X 3

25

MM28-0023

WASHER-ZI STANDARD 3/8

26

MM21-0218

BRACKET-TIGHTENER-SS

27

MM21-0220

BRACKET-TIGHTENER-SS

28

MM27-0066

HHCS-ZI GR5 5/16-18 X 3/4

29

MM19-0206

FILTER-INLET 1/2MX3/4F GARDEN

30

MM25-0123

O-RING 1/2 X 11/16

31

MM17-0004

QC 3/8FX3/8 SOCKET BRASS

32

MM22-0005

VALVE HEAT DUMP 145D

33

MM43-0091

KEY - 8 X 7 X 40MM

34

MM3-0230

PUMP AR 4000 PSI @ 4.0 GPM

35

MM27-0121

HHCS-ZI GR5 3/8-16 X 2

36

MM30-0159

HEX NYLON LOCKNUT-ZINC 3/8-16

37

MM6-0106

BELTGUARD BACK-ALUMINUM

38

EDGING 24'' (609,6 mm) long - Order Ref. 67

39

DECAL NLA - Warning/Caution - Order Ref. 68

40

DECAL NLA - Warning: Beltguard in Place - Order Ref. 68

41

MM11-0031

COG BELT AX35

42

MM10-0074

SHEAVE 2AK39H

43

MM9-0005

BUSHING H 1 MOTOR

44

MM27-0015

HHCS-ZI GR5 1/4-20 X 3/4

45

EDGING 48'' (1219,2 mm) long - Order Ref. 67

46

MM6-0107

BELTGUARD COVER-ALUMINUM

47

MM27-8898

SERR.FLANGE HHCS-M6-1.00PX25MM

48

DECAL NLA - Operation - Order Ref. 68

49

MM18-0257

NOZZLE 00035 SAQ MEG

49

MM18-0258

NOZZLE 15035 SAQ MEG

49

MM18-0259

NOZZLE 25035 SAQ MEG

49

MM18-0260

40 DEGREE NOZZLE

50

MM33-0001

GROMMET 1/2 X 1 X 1/8

51

MM34-1400

4000 PSI WHITE DIE CUT

52

MM34-1398

DECAL-BOBCAT LOGO

53

MM34-0500

DECAL-NOZZLES 0,15,25,40

54

MM9-0017

BUSHING H24MM PUMP

55

MM10-0035

SHEAVE 2AK74H

56

MM851-0095

GUN ASMBLY W/Ref. 57-62

57

MM17-0005

QC 3/8MX3/8 PLUG SS

58

MM16-0001

TRIGGER GUN 4000 PSI

59

MM7-0002

GRIP-RUBBER FOR WAND

60

MM16-0418

WAND-36'' W/HANDLE CHROME

61

DECAL NLA - Warning: Risk of Injection - Order Ref. 68

62

MM17-0001

QC 1/4FX1/4 SOCKET BRASS

63

MM25-0122

O-RING

64

MM851-0338

HOSE ASSEMBLY W/QC 4000 PSI Ref. 31, 65 & 66

65

MM17-0006

QC 3/8F X 3/8 PLUG SS

66

MM15-0209

HOSE 3/8''X50' 3/8M 4000 PSI

67

MM33-0433

EDGING - BLACK SOF-TONE bulk - sold per foot

68

MM34-9017

DECAL SET - JCW/CWC/CW GAS Ref. 2, 3, 39, 40, 48 & 61
