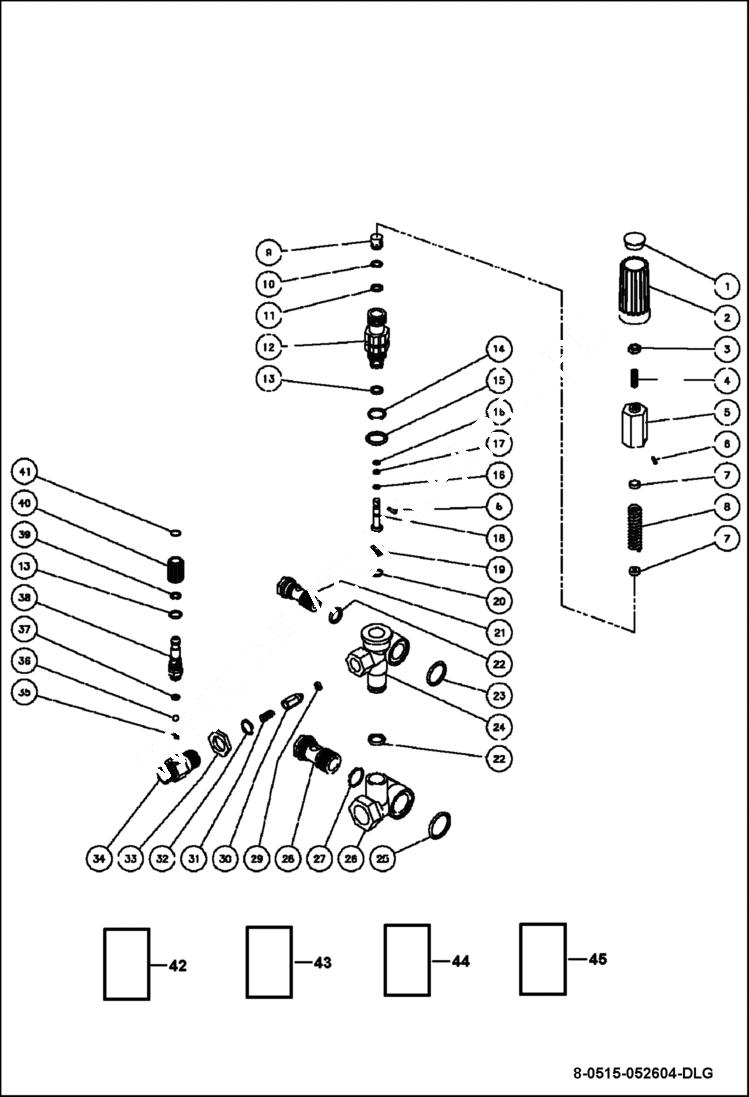

Запчасти Bobcat PRESSURE WASHER UNLOADER ASSEMBLY EQUIPMENT

1

MM7-0178

KNOB PLUG

2

MM7-0179

UNLOADER KNOB

3

MM30-6024

NUT - M6-1.00P X 10MM

4

SET SCREW NLA - Order Ref. 45

5

MM8-0500

ADJUSTMENT BARREL - BRASS

6

MM8-0477

UNLOADER - PIN - STAINLESS

7

MM8-0501

SPRING BUTTON - BRASS

8

MM49-0119

SPRING - 2700 PSI

9

UPPER PISTON NLA - Order Ref. 45

10

MM25-0404

BACKUP RING 8 X 1MM

11

O-RING NLA - Order Ref. 42 or Ref. 45

12

MM8-0502

PISTON GUIDE - M18-1.00P

13

MM25-0403

O-RING 8.73 X 1.78MM

14

MM25-0510

O-RING I.D. 14X1.75MM

15

MM25-0386

O-RING 15.54 X 2.62MM

16

O-RING NLA - Order Ref. 42 or Ref. 45

17

MM25-0408

BACKUP RING

18

MM8-0413

PISTON

19

MM8-0503

VALVE SEAT - SSTAINLESS STEEL

20

O-RING NLA - Order Ref. 42 or Ref. 45

21

MM8-0516

BANJO BOLT - 3/8-19BSP

22

MM25-0388

O-RING 11.91 X 2.62

23

MM25-0370

O-RING 20.24 X 2.62MM

24

VALVE HOUSING NLA

25

MM25-0519

O-RING - 23.47X2.62MM

26

BY-PASS HOUSING NLA

27

MM25-0389

O-RING 17.17 X 1.78MM

28

MM8-0517

BANJO BOLT - 1/2-14BSP

29

MM25-0406

O-RING 4 X 2.5MM

30

MM8-0518

CHECK VALVE

31

MM49-0124

SPRING-UNLOADER CHECK VALVE

32

MM25-0407

O-RING 12.42 X 1.78MM

33

NUT NLA - Order Ref. 43

34

CHEMICAL INJECTOR BODY NLA - Order Ref. 43

35

MM8-0520

SPRING

36

MM8-0521

BALL

37

MM25-0371

O-RING 4.48 X 1.78MM

38

MM8-0499

BARB-INJECTOR (BRASS)

39

O-RING NLA - Order Ref. 43

40

DETERGENT REGULATOR KNOB NLA - Order Ref. 43

41

O-RING NLA - Order Ref. 43

42

MM70-0336

KIT-O-RING REPAIR Ref. 4, 10, 11, 13-17, 20, 22, 23, 25, 29, 32 & 37

43

MM70-0338

KIT-CHEMICAL INJECTOR Ref. 13 & 33-41

44

MM852-0158

INJECTOR REPAIR KIT (INC. 35-37) Ref. 35-37

45

MM70-0292

KIT - UNLOADER REPAIR Ref. 1-20
