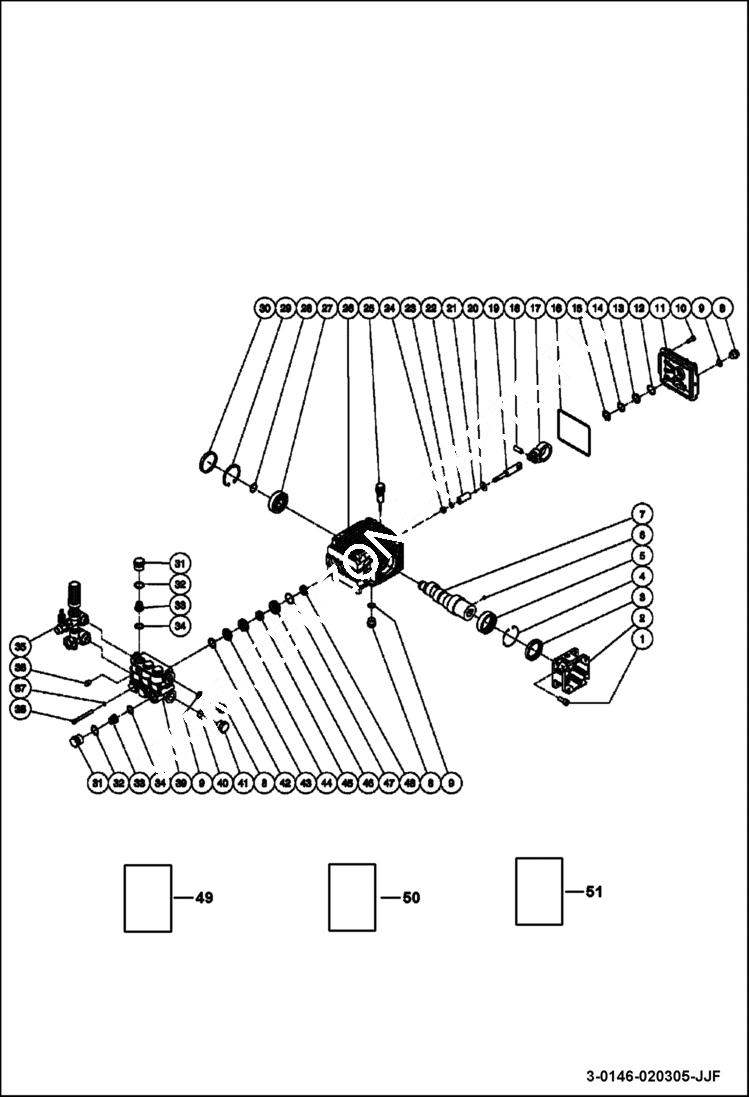

Запчасти Bobcat PRESSURE WASHER PUMP ASSEMBLY PUMP

1

MM27-8432

HSHCS-ZI GR8.8 M8-1.25P X 20MM

2

MM46-0715

PUMP - FLANGE

3

MM26-0192

SEAL - OIL

4

MM46-0667

RETAINING RING

5

MM48-0059

BEARING NEEDLE

6

MM27-8886

HSSS - M6-1.00P X 6 MM UNI5923

7

MM46-0718

PUMP - CRANKSHAFT

8

MM39-0086

PLUG - BRASS

9

MM25-0325

O-RING 14 X 1.78MM

10

MM27-8888

HHCS-TCEI GR8.8 M6-1.00PX16MM

11

MM46-0719

PUMP - COVER CRANKCASE

12

MM25-0370

O-RING 20.24 X 2.62MM

13

MM46-0670

OIL SIGHT GLASS

14

MM46-0824

PUMP - REFLECTOR - OIL

15

MM46-0671

SPRING RETAINER-OIL SIGHT GLAS

16

MM25-0398

O-RING 107.62 X 2.62MM

17

MM46-0720

PUMP-CONNECTING ROD-ALUMINUM

18

MM46-0721

PUMP - PISTON PIN

19

MM46-0722

PUMP - PLUNGER ROD

20

MM28-1027

SLINGER WASHER

21

MM25-0371

O-RING 4.48 X 1.78MM

22

MM46-0723

PUMP - PISTON - CERAMIC

23

MM26-0187

WASHER/GASKET

24

MM30-6016

PLUNGER NUT - M8-1.25P

25

MM39-0090

OIL DIPSTICK

26

MM46-0724

PUMP - CRANKCASE

27

MM48-0063

BEARING - BALL

28

MM46-0732

PUMP - RETAINER

29

MM46-0676

RETAINING RING

30

MM46-0725

PUMP - BEARING CAP

31

MM39-0087

VALVE CAP - M22 - 1.50P

32

MM25-0160

O-RING 17.86 X 2.62MM

33

SINGLE VALVE ASSEMBLY NLA - Order Ref. 51

34

MM25-0386

O-RING 15.54 X 2.62MM

35

MM8-0515

UNLOADER W/DETERGENT INJECTOR

36

MM39-0097

PLUG - BRASS

37

MM29-0153

LOCKWASHER-ZI M6 SERR. CURVE

38

MM27-8875

SCREW - GR12.9 M6-1.00P X 60MM

39

MM46-0730

PUMP - MANIFOLD - BRASS

40

MM25-0372

O-RING 17.5 X 2MM

41

MM39-0088

PLUG - BRASS

42

SUPPORT RING NLA - Order Ref. 50

43

V-PACKING NLA - Order Ref. 49

44

MM46-0728

PUMP - PACKING RETAINER

45

MM46-0727

PUMP - LOW PRESSURE SEAL

46

MM46-0726

PUMP - RETAINER-LOW PRESSURE

47

MM25-0399

O-RING 23.52 X 1.78MM

48

LOW PRESSURE SEAL NLA

49

MM70-0181

KIT - PACKING (3) each of Ref. 43, 45 & 47

50

MM70-0182

KIT - SUPPORT RINGS (3) of Ref. 42

51

MM70-0161

KIT - VALVE (6) each of Ref. 33 & 34
