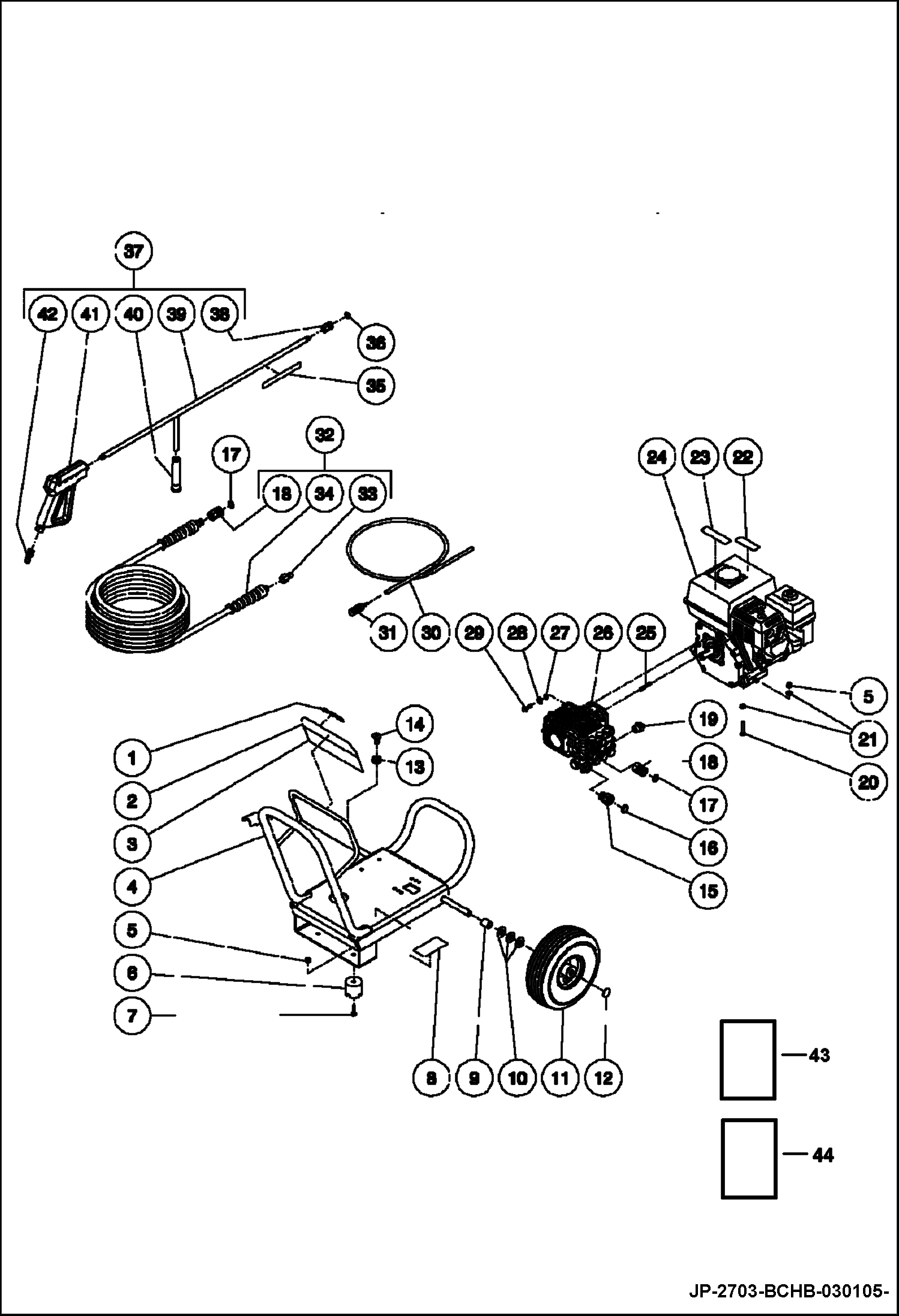

Запчасти Bobcat PRESSURE WASHER FRAME ASSEMBLY FRAME
№
Артикул
Название
Примечание
Количество
1
MM34-0774
2700 PSI WHITE DIE CUT
2
MM34-1397
DECAL
3
DECAL NLA - Warning/Caution/Operating (E/S) - Order Ref. 44
4
MM5-0178A06
FRAME ASSEMBLY-SMALL
5
MM30-0157
HEX NYLON LOCKNUT-ZINC 5/16-18
6
MM14-0066
RUBBER ISOLATOR FOOT
7
MM27-0008
BOLT
8
DECAL NLA - Data Plate
9
MM20-0313A01
AXLE SPACER - BLACK
10
MM28-0008
WASHER-ZI SAE TYPE A 5/8
11
MM14-0017
WHEEL PHEU 4.10/3.50-4 5/8BORE
12
MM33-0018
CAP HUB 5/8''
13
MM33-0001
GROMMET 1/2 X 1 X 1/8
14
MM18-0148
NOZZLE 6540 1/4MQC
14
MM18-0303
NOZZLE 2503 SAQ MEG
14
MM18-0150
NOZZLE 1503 SAQ MEG
14
MM18-0302
NOZZLE 0003 SAQ MEG
15
MM23-0095
SWIV 1/2MX3/4F GARDEN HOSE -BR
16
MM19-0001
FILTER-INLET WASHER W/SCREEN
17
MM25-0123
O-RING 1/2 X 11/16
18
MM17-0004
QC 3/8FX3/8 SOCKET BRASS
19
MM22-0005
VALVE HEAT DUMP 145D
20
MM27-0070
HHCS-ZI GR5 5/16-18 X 1-3/4
21
MM28-0003
WASHER-ZI SAE TYPE A 5/16
22
DECAL NLA - Caution: Allow to Cool (E/S) - Order Ref. 44
23
DECAL NLA - Warning: Muffler is Hot (E/S) - Order Ref. 44
24
MM1-0088
ENGINE HONDA 6.5 HP RECOIL
25
MM43-0073
KEY - 3/16'' X 1-7/8''
26
MM3-0146
PUMP DIRECT DRIVE GASOLINE
27
MM29-0007
LOCKWASHER-ZINC MED 5/16
28
MM28-0022
WASHER-ZI STANDARD 5/16
29
MM27-0092
HHCS-ZI GR5 5/16-24 X 1
30
DETERGENT HOSE NLA - 48'' (1219,2 mm) long - Order Ref. 43
31
MM19-0050
STRAINER CHEMICAL WO/CK
32
MM851-0007
3000 PSI 50'X3/8'' PSI HOSE WITH QC NLA - Ref. 18, 33 & 34 - Was MM851-0007 - A
33
MM17-0006
QC 3/8F X 3/8 PLUG SS
34
MM15-0003
HOSE 3/8X50'3/8M 3000 PSI
35
DECAL NLA - Warning: Risk of Injection (E/S) - Order Ref. 44
36
MM25-0122
O-RING
37
MM851-0095
GUN ASMBLY Ref. 38-42
38
MM17-0001
QC 1/4FX1/4 SOCKET BRASS
39
MM16-0418
WAND-36'' W/HANDLE CHROME
40
MM7-0002
GRIP-RUBBER FOR WAND
41
MM16-0001
TRIGGER GUN 4000 PSI
42
MM17-0005
QC 3/8MX3/8 PLUG SS
43
MM15-0021
HOSE 1/4 ID CLEAR CHEMI bulk - sold per foot
44
MM34-9005
DECAL SET-JP,WP,CD GAS, GRAIN Ref. 3, 22, 23 & 35
Выбрано товаров: 47
