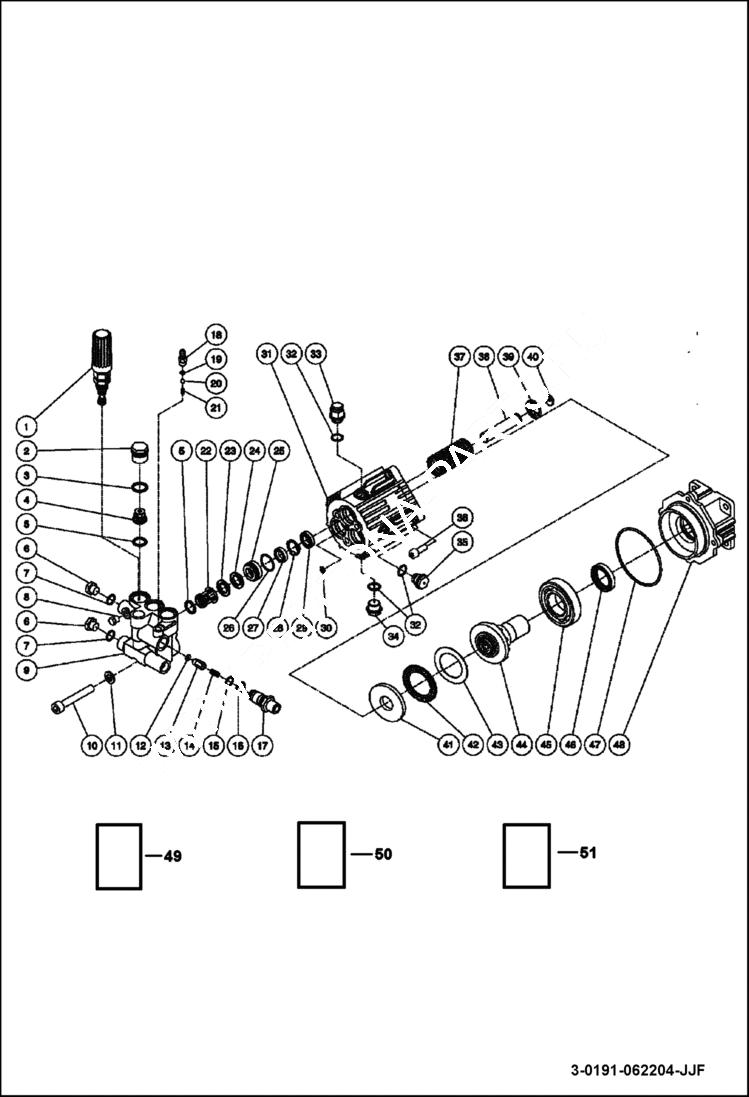

Запчасти Bobcat PRESSURE WASHER PUMP ASSEMBLY PUMP

1

MM70-0292

KIT - UNLOADER REPAIR

2

MM39-0087

VALVE CAP - M22 - 1.50P

3

MM25-0160

O-RING 17.86 X 2.62MM

4

SINGLE VALVE ASSEMBLY NLA - Order Ref. 49

5

MM25-0386

O-RING 15.54 X 2.62MM

6

MM39-0096

PLUG - BRASS

7

MM25-0387

O-RING 10.82 X 1.78MM

8

MM39-0097

PLUG - BRASS

9

MM46-1107

MANIFOLD

10

MM27-8960

BOLT-TCEI GR8.8 M10-1.50PX65MM

11

MM29-0055

LOCKWASHER-ZI M10 TYPE A

12

MM25-0406

O-RING 4 X 2.5MM

13

MM8-0458

UNLOADER-CHECK VALVE STAINLESS

14

MM49-0124

SPRING-UNLOADER CHECK VALVE

15

MM25-0407

O-RING 12.42 X 1.78MM

16

MM25-0159

O-RING 15.60 X 1.78MM

17

MM46-0870

INJECTOR ADAPTER - 1.8 ORIFICE

18

MM46-0869

HOSE BARB-1/8''-27 BSPPX8MM HB

19

O-RING NLA - Order Ref. 51

20

BALL NLA - Order Ref. 51

21

COMPRESSION SPRING NLA - Order Ref. 51

22

SINGLE VALVE ASSEMBLY NLA - Order Ref. 49

23

V-PACKING NLA - Order Ref. 50

24

BACKUP RING NLA - Order Ref. 50

25

MM46-1108

PACKING

26

MM25-0399

O-RING 23.52 X 1.78MM

27

LOW PRESSURE SEAL NLA - Order Ref. 50

28

MM46-0892

SPACER

29

MM26-0239

OIL SEAL-I.D.15XO.D.24 X 5MM

30

MM25-0502

O-RING 5.28 X 1.78

31

MM46-0873

PUMP HOUSING

32

MM25-0325

O-RING 14 X 1.78MM

33

MM39-0118

OIL CAP - BLACK

34

MM39-0086

PLUG - BRASS

35

MM39-0119

OIL SIGHT GLASS-3/8-19BSPP PLA

36

MM27-8432

HSHCS-ZI GR8.8 M8-1.25P X 20MM

37

MM49-0142

SPRING - 28 X 62.5 X 2.5

38

MM46-0897

PISTON/CERAMIC DIA. 15MMX73MM

39

MM46-0875

SPRING RETAIN-ID14 X OD28.4MM

40

MM46-0882

PISTON SHOE

41

MM46-0876

THRUST WASHER-ID23XOD60X6MM

42

MM48-0057

BEARINGS - 40X60X3

43

MM48-0056

THRUST WASHER - 40X60X1

44

MM46-1106

WOBLE PLATE

45

MM48-0083

BEARING

46

MM26-0279

OIL SEAL

47

MM25-0503

O-RING 83.8 X 2.62MM

48

MM38-0064

FLANGE

49

MM70-0290

KIT- VALVE Ref. 4 & 22

50

MM70-0374

SEAL KIT Ref. 23, 24 & 27

51

MM70-0293

KIT - INJECTOR REPAIR Ref. 19-21
