Запчасти Bobcat GENERATOR BG 7 VE BGE7

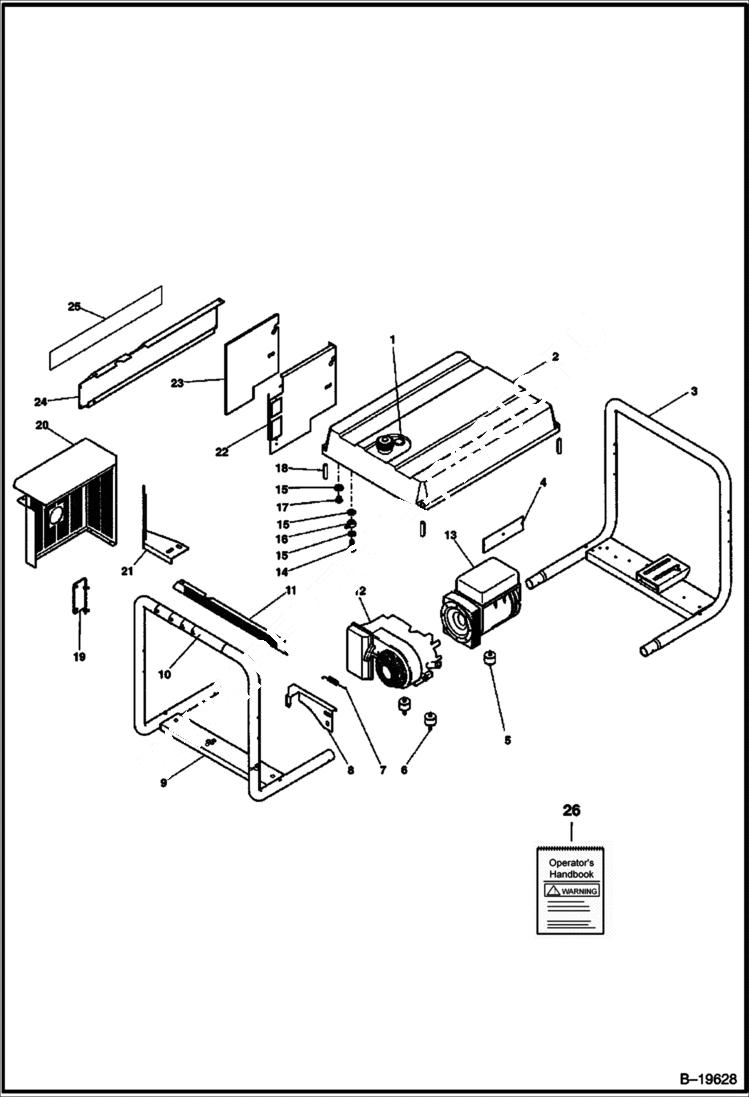

Схема запчастей Bobcat GENERATOR - BG 7 VE BGE7

Артикул

Название

Примечание

Количество

1

IR85431930

INDICATOR fuel level

2

IR85491389

TANK 27L

3

IR85432052

FRAME half alternator

4

IR85431583

DEFLECTOR

5

IR85400026

MOUNT anti-vibration

6

IR85402017

MOUNT anti-vibration

7

IR85431302

SPRING

8

IR85490241

PANEL engine

9

IR85432045

FRAME half engine

10

IR85508141

DECAL

11

IR85507515

BAND fuel tank

12

IR85430825

ENGINE

12

IR85491298

SPARK PLUG

12

IR85491686

FILTER

12

IR85491363

AIR CLEANER

13

IR85430965

ALTERNATOR

13

IR85491215

BEARING

13

IR85491330

CAPACITOR

13

IR85491231

DIODE

14

IR85490761

SCREW

15

IR85490837

GASKET

16

IR85490753

CONNECTOR

17

IR85490720

PLUG

18

IR85508372

SPACER

19

IR85432466

BRACKET muffler

20

IR85507325

GUARD

21

IR85432441

BRACKET muffler

22

IR85432409

GUARD

23

IR85431914

DEFLECTOR

24

IR85432136

BAND side

25

IR85508117

DECAL

26

IR22256432CD

OM, BG5H BGE7H GENERATOR CD

Выбрано товаров: 32
