Запчасти Bobcat GENERATOR BG 5 V BG5

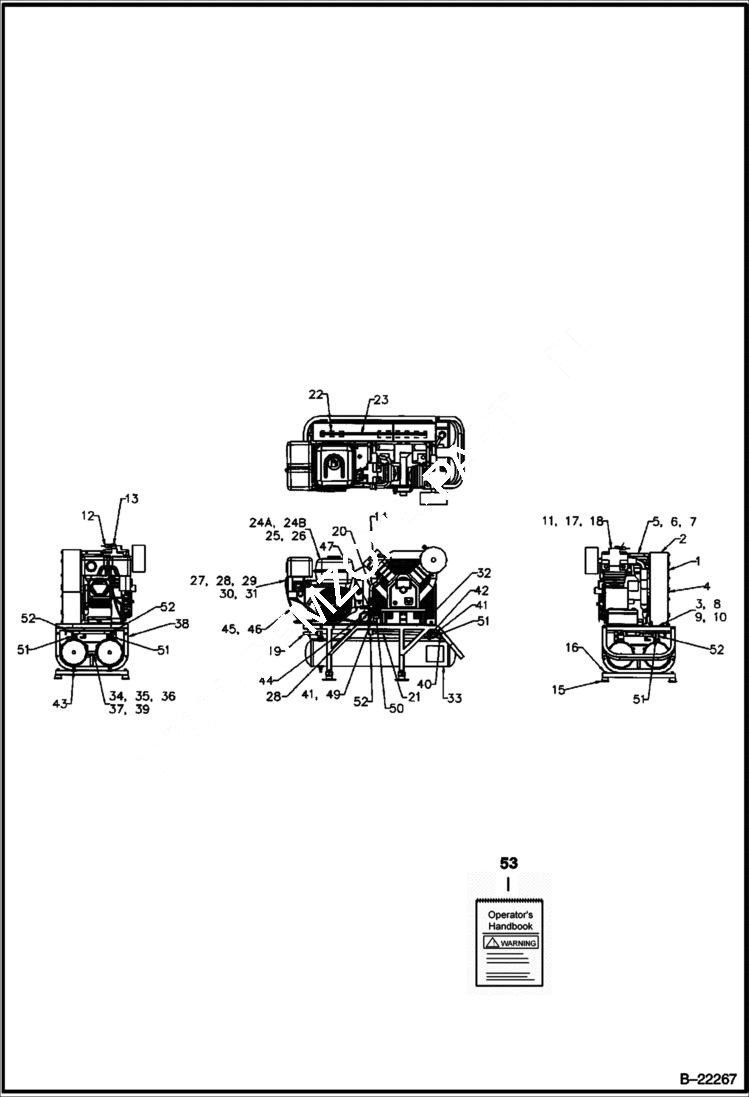

Схема запчастей Bobcat GENERATOR - BG 5 V BG5

Артикул

Название

Примечание

Количество

1

IR85431922

INDICATOR fuel level

2

IR85431054

TANK 18L

3

IR85432052

FRAME half alternator

4

IR85432136

BAND side

5

IR85405009

MOUNT anti-vibration

6

IR85490100

CABLE ground

7

IR85405017

MOUNT anti-vibration

8

IR85490464

BRACKET ground

9

IR85432045

FRAME half engine

10

IR85490241

PANEL engine

11

IR85430775

ENGINE

11

IR85491298

SPARK PLUG

11

IR85491686

FILTER

11

IR85491363

AIR CLEANER

12

IR45283629

GENERATOR Was IR85430890 - A

12

IR85491215

BEARING

12

IR85491330

CAPACITOR

12

IR85491231

DIODE

13

IR85508166

SPACER

14

IR85507515

BAND fuel tank

15

IR85490761

SCREW

16

IR85490837

GASKET

17

IR85490753

CONNECTOR

18

IR85490720

PLUG

19

IR85432441

BRACKET muffler

20

IR85432466

BRACKET muffler

21

IR85507325

GUARD

22

IR85431294

SPRING

23

IR85430940

COVER

24

IR85408961

RECEPTACLE

25

IR85408763

COVER circuit breaker

26

IR85408755

BREAKER

27

IR85490621

SOCKET

28

IR85508091

DECAL

29

IR85508141

DECAL

30

IR22256432CD

OM, BG5H BGE7H GENERATOR CD

Выбрано товаров: 36
