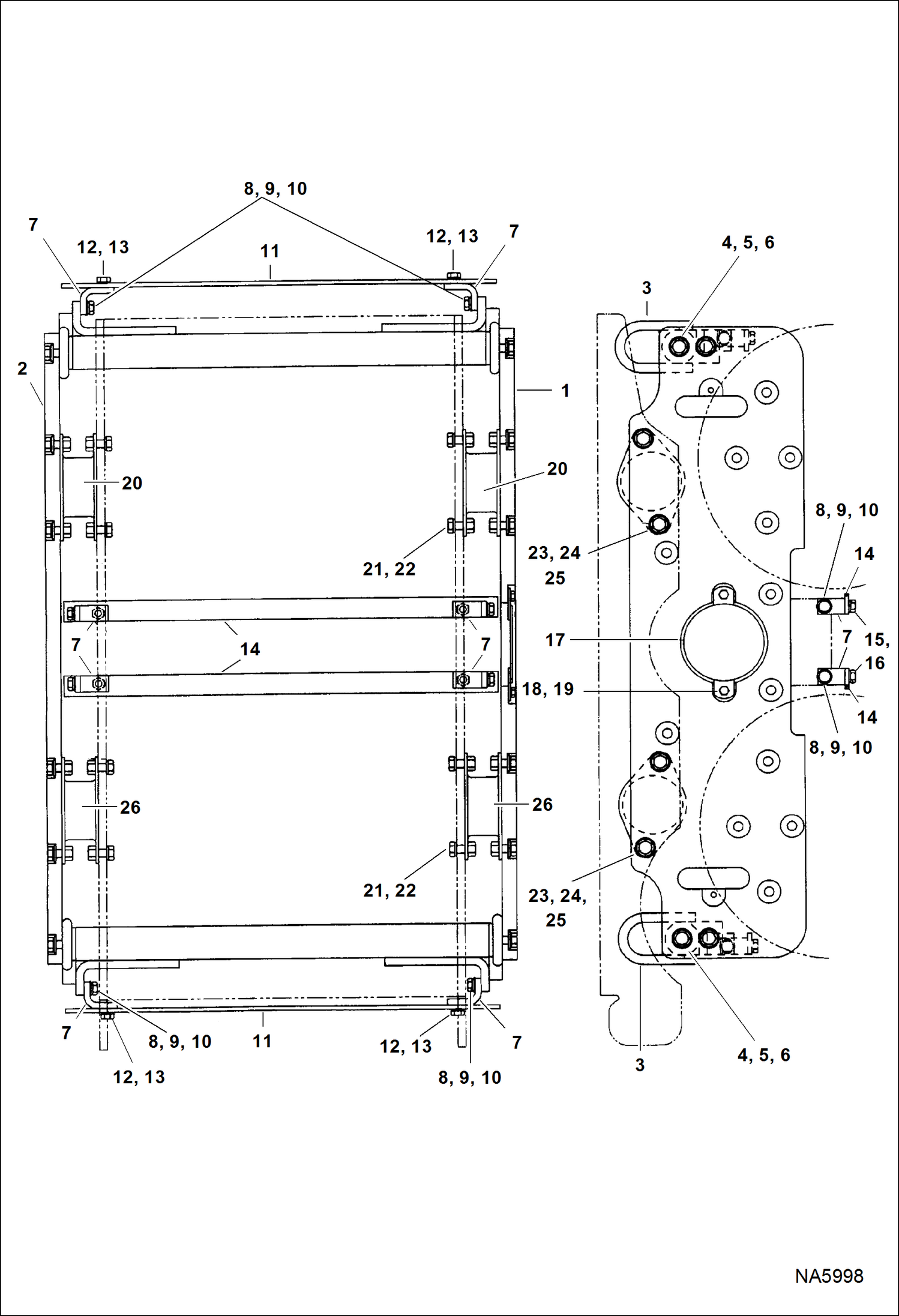

Запчасти Bobcat DOUBLE DRUM ROLLER MAIN FRAME MAIN FRAME

1

7030489

FRAME RH side

2

7030490

FRAME LH side

3

7030520

BRACKET

4

7031128

BOLT

5

7031129

WASHER

6

7030549

WASHER

7

7031623

BRACKET scraper - Was 7030524

8

7031069

BOLT

9

7031066

WASHER, SPRING

10

7030547

WASHER

11

7030522

SCRAPER (A)

12

7031134

BOLT

13

7031066

WASHER, SPRING

14

7030523

SCRAPER (B)

15

7031134

BOLT

16

7031066

WASHER, SPRING

17

7030548

COVER (B)

18

7030763

BOLT

19

7031127

WASHER

20

7030511

SHIELD, RH

21

7031128

BOLT

22

7031130

WASHER, SPRING

23

7031128

BOLT

24

7031129

WASHER

25

7030549

WASHER

26

7031622

SHIELD, LH Was 7030512 - A
