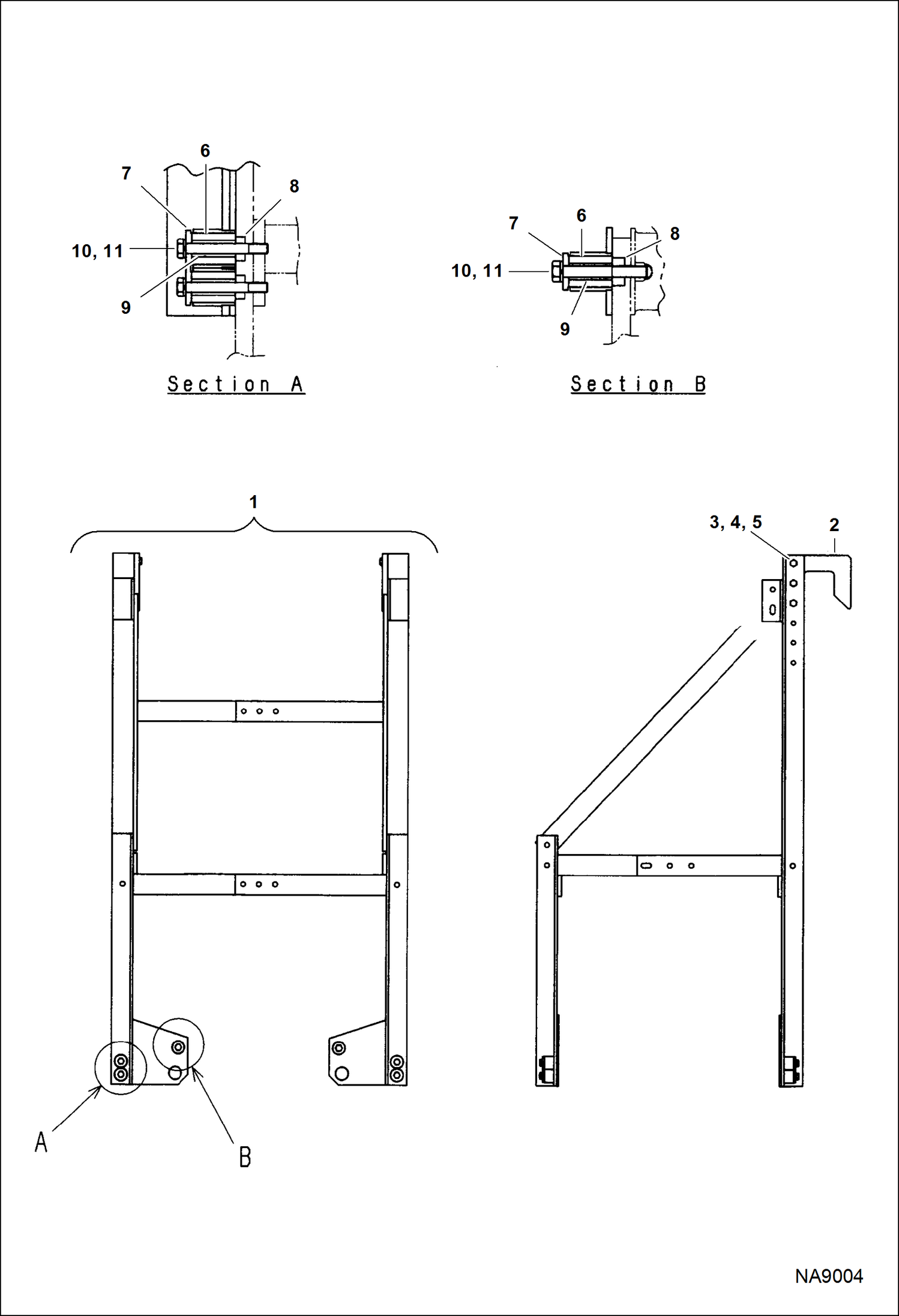

Запчасти Bobcat DOUBLE DRUM ROLLER TRUCK HOOK ASSEMBLY (Optional) ACCESSORIES & OPTIONS

1

7030546

HOOK truck - W/Ref. 2-15

2

7031186

HOOK

3

7031142

BOLT

4

7031130

WASHER, SPRING

5

7030484

NUT

6

7030819

DAMPER rubber

7

WASHER NSS

8

7030751

COLLAR

9

7030752

PIPE

10

7030753

BOLT

11

7031130

WASHER, SPRING
