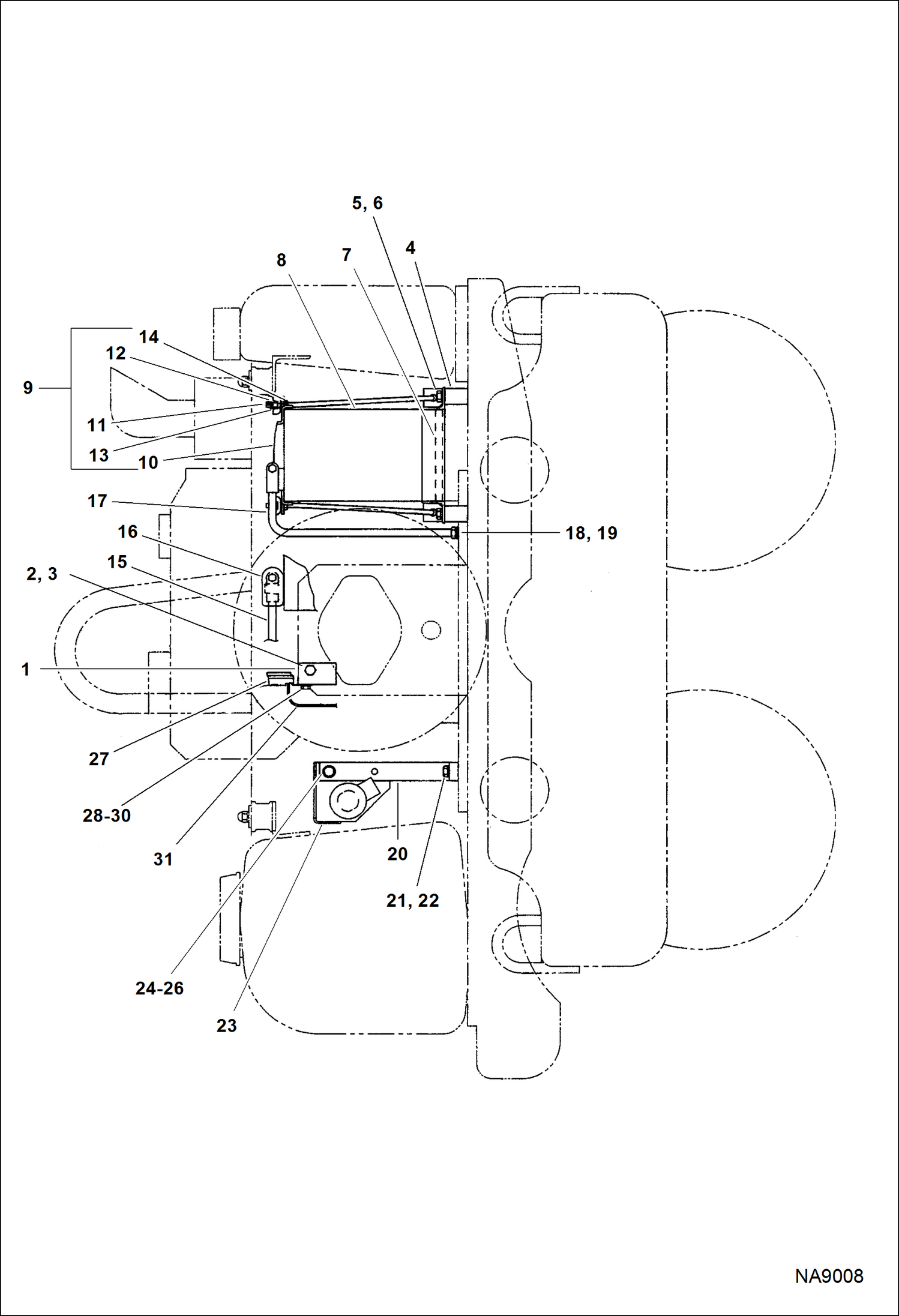

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Electrical) ELECTRICAL SYSTEM

1

7030714

BRACKET horn

2

7031126

BOLT

3

7031135

WASHER, SPRING

4

7030715

PAN, BATTERY

5

7031183

BOLT

6

7031135

WASHER, SPRING

7

7030716

PAN, BATTERY

8

7030717

BATTERY

9

7030725

PLATE battery hold down assy - Ref. 10-14

10

BATTERY PLATE NSS - Order Ref. 9

11

7030727

BOLT

12

7031116

NUT

13

7031185

WASHER

14

7031076

NUT

15

7030728

CABLE, POSITIVE

16

7030730

COVER, BATTERY terminal

17

7030729

CABLE, NEGATIVE

18

7030763

BOLT

19

7031135

WASHER, SPRING

20

7030731

BRACKET, SWITCH panel

21

7031141

BOLT

22

7031135

WASHER, SPRING

23

7030732

PANEL, SWITCH

24

7030763

BOLT

25

7031135

WASHER, SPRING

26

7031149

WASHER

27

7030733

HORN, ASSY

28

7030591

BOLT

29

7031139

WASHER

30

7031147

WASHER, SPRING

31

7030734

CABLE, GROUND
