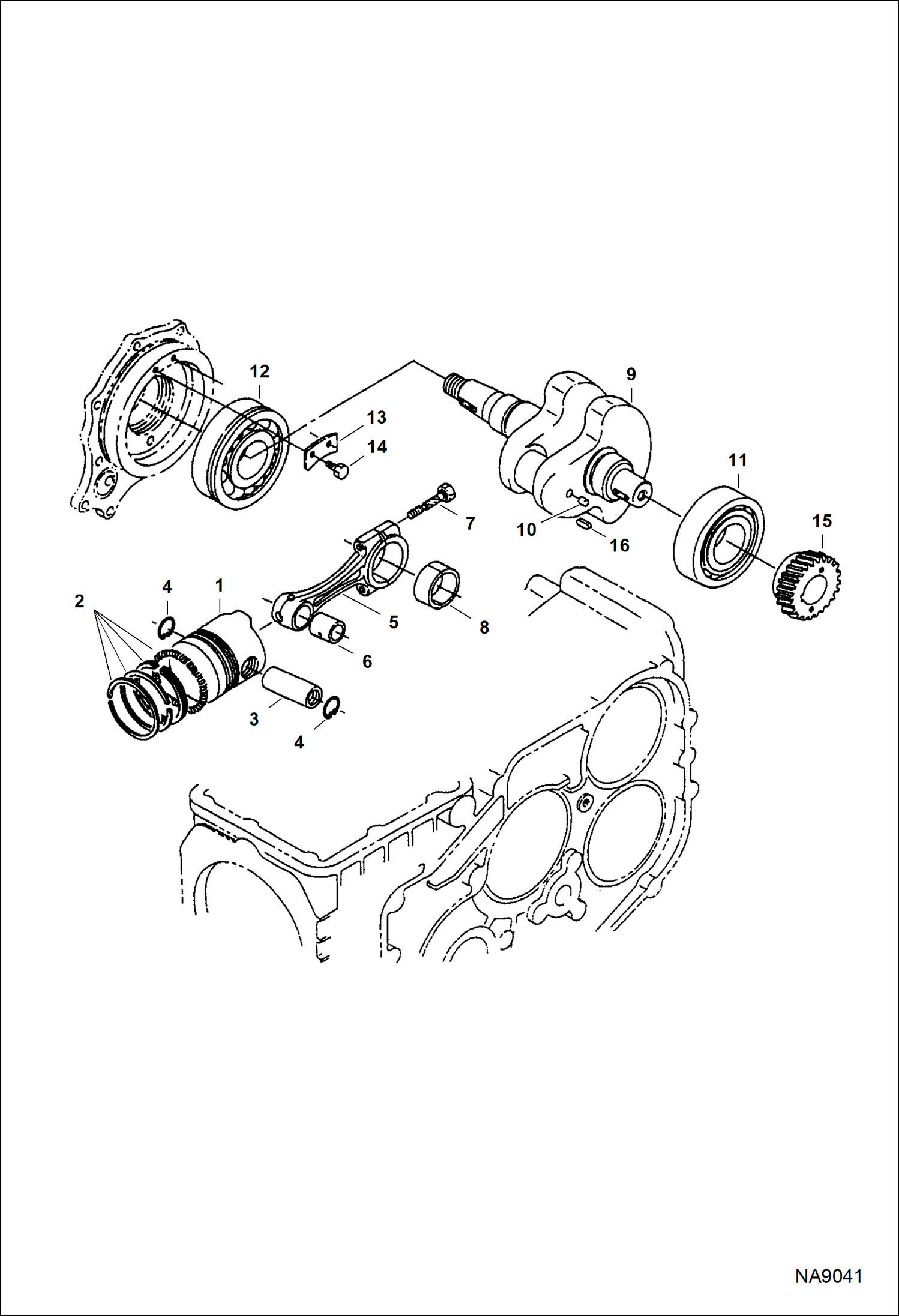

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Connecting Rods) POWER UNIT

1

7030864

PISTON std

1

7030992

PISTON oversize 0.5

2

7030863

RING, PISTON ASSY std

2

7031063

RING, PISTON ASSY oversize 0.5

3

7030993

PIN, PISTON ENG

4

7030994

CIRCLIP internal

5

7030995

ROD, CONNECTING ASSY W/Ref. 6-8

6

PISTON PIN BUSHING NSS - Order Ref. 5

7

CONNECTING ROD BOLT NSS - Order Ref. 5

8

CRANKPIN METAL NSS - std - Order Ref. 5

8

7030876

BEARING undersize 0.2

8

7030875

BEARING undersize 0.4

9

7030785

CRANKSHAFT, ASSY W/Ref. 10

10

PLUG NSS - Order Ref. 9

11

7030996

BEARING main 1

12

7030786

BEARING main 2

13

7030787

STOP, BEARING

14

7030788

BOLT

15

7030997

GEAR, CRANKSHAFT

16

7030998

KEY, SHAFT
