ENGINE (Valve)

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Valve) POWER UNIT

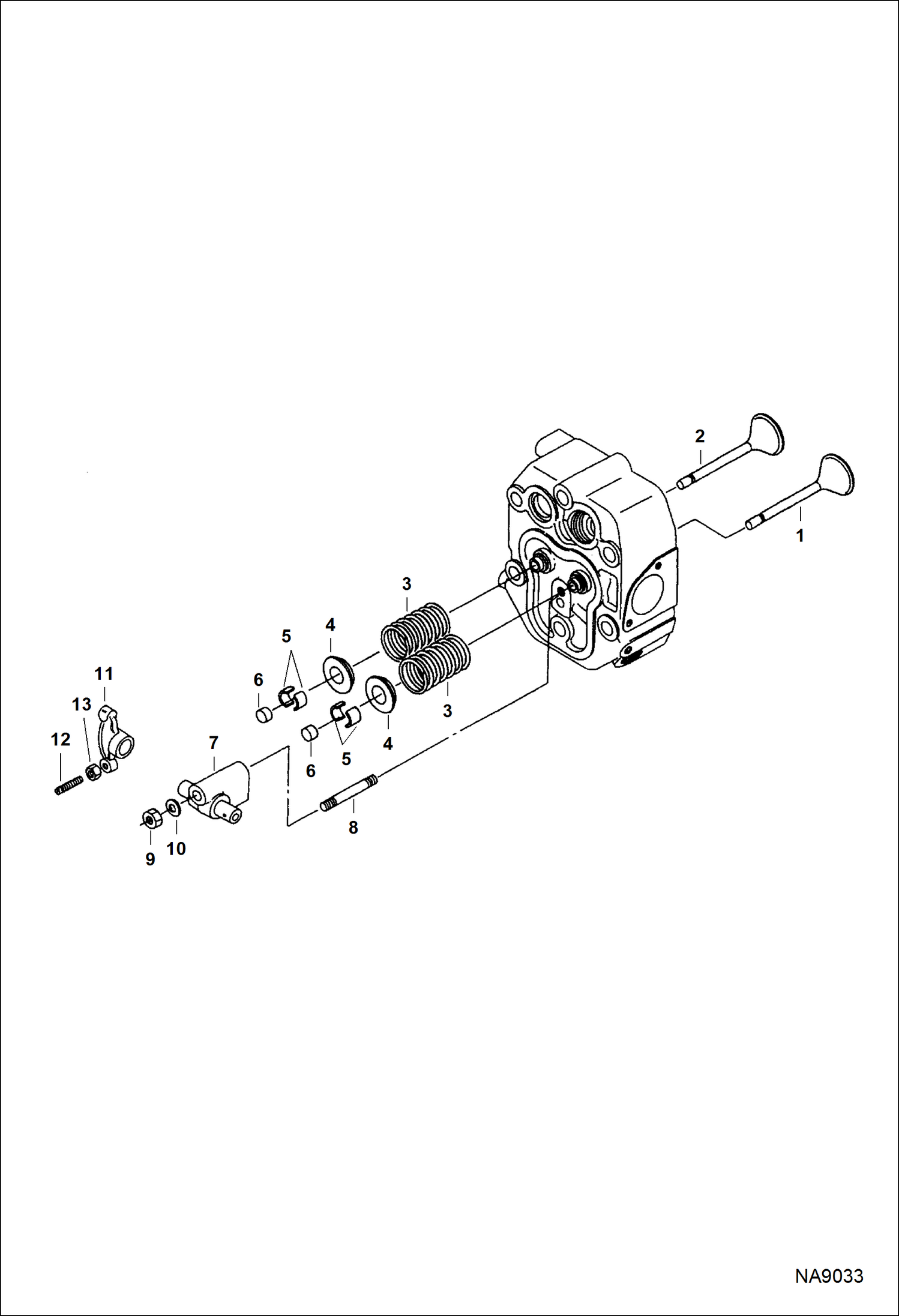

Схема запчастей Bobcat DOUBLE DRUM ROLLER - ENGINE (Valve) POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7030782

VALVE, INLET

2

7030782

VALVE, INLET exhaust

3

7030950

SPRING, VALVE

4

7030783

SPRING, RETAINER

5

7030951

COLLAR, SPRING

6

7030952

CAP

7

7030953

BRACKET, ASSY

8

7030954

STUD

9

7030955

NUT

10

7030956

WASHER

11

7030957

ARM, ROCKER ASSY W/Ref. 12 & 13

12

ADJUSTING SCREW NSS - Order Ref. 11

13

NUT NSS - Order ref. 11
