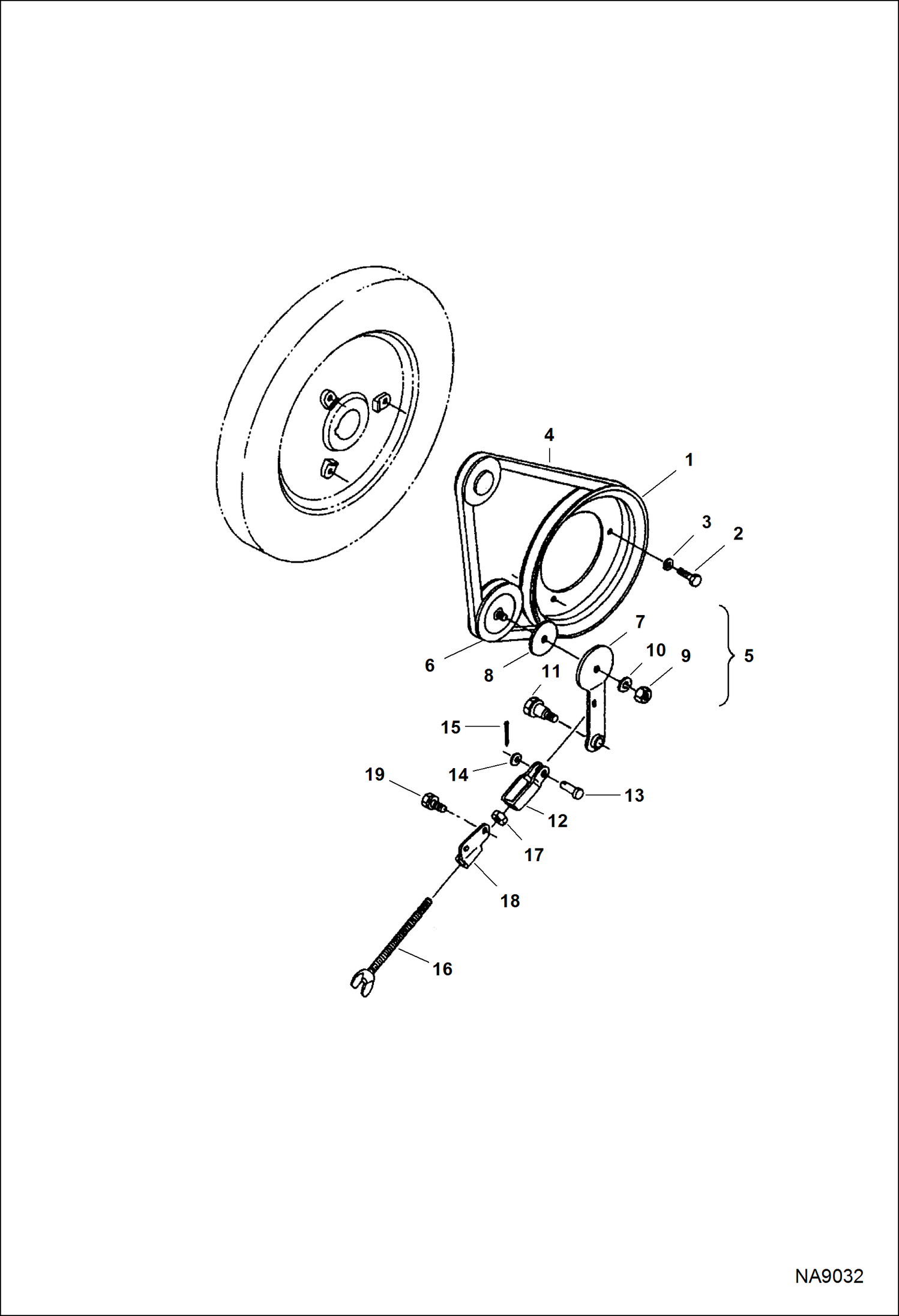

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Pulley) POWER UNIT

1

7031050

PULLEY, FAN ENG

2

7030922

BOLT

3

7030967

WASHER, SPRING

4

7031065

BELT, CASE ECCENTRIC

5

7031051

PULLEY W/Ref. 6-10

6

TENSION PULLEY NSS - Order Ref. 5

7

TENSION PULLEY SUPPORT NSS - Order Ref. 5

8

CAP NSS - Order Ref. 5

9

NUT NSS - Order Ref. 5

10

7030897

WASHER, SPRING

11

7031052

BOLT, REAMER

12

7031053

ARM, TENSIONER

13

7031054

PIN, JOINT

14

7031055

WASHER

15

7031056

PIN, SPLIT

16

7031057

PIN

17

7030970

NUT

18

7031058

GUIDE

19

7030966

BOLT
