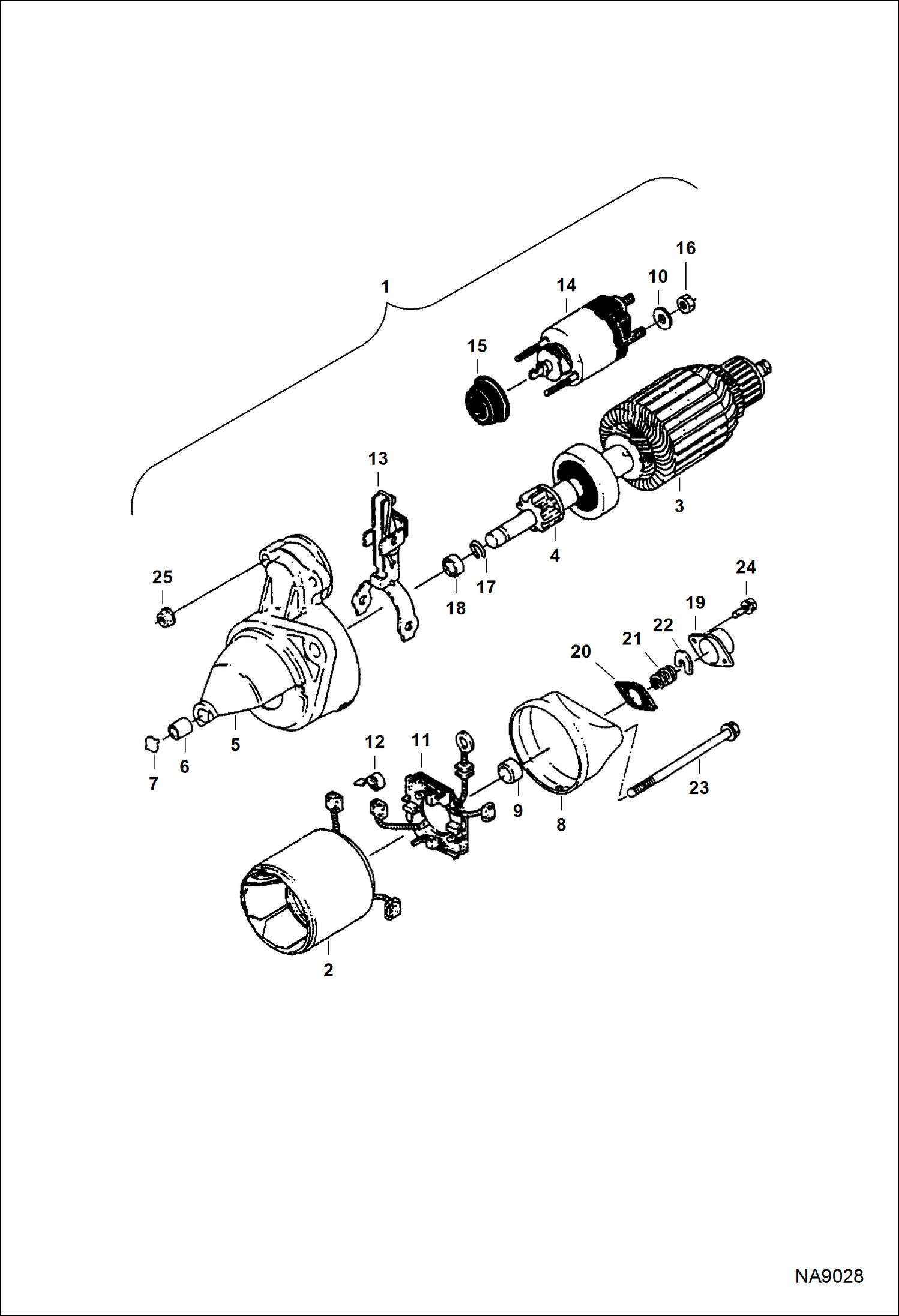

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Starter) POWER UNIT

1

7031077

STARTER W/Ref. 2-27

2

7031092

YOKE starter

3

7031093

ARMATURE

4

7031094

CLUTCH, ASSY

5

7031095

FRAME W/Ref. 6 & 7

6

7031096

BUSHING

7

7031097

PLUG

8

7031098

FRAME end - W/Ref. 9

9

7031099

BUSHING

10

7031113

WASHER

11

7031100

HOLDER, BRUSH W/Ref. 12

12

7031101

SPRING, BRUSH

13

7031102

LEVER drive

14

7031103

SWITCH, MAGNETIC W/Ref. 15

15

7031104

COVER

16

7031044

NUT

17

7031105

PIN, SNAP

18

7031106

NUT

19

7031107

CAP, END

20

7031108

GASKET

21

7031109

SPRING

22

7031110

SHOE, LOCK

23

7031111

BOLT

24

7030837

BOLT, W/WASHER

25

7031112

NUT
